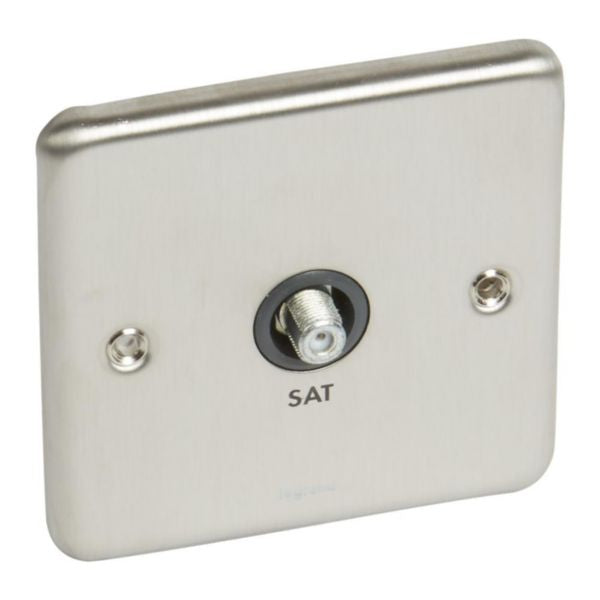

Shop Legrand Synergy Authentic Single F Type TV Socket Brushed Stainless Steel | 833041 In Iraq Best Prices
Premium single F-type satellite TV socket with brushed stainless steel finish, low signal attenuation (1dB), toolless installation, and complete monobloc design for reliable television reception.
The Synergy™ Authentic single F-type TV socket is a premium satellite television outlet designed for professional installation in residential and commercial applications. Manufactured by Legrand, this socket features a brushed stainless steel finish (Grade 304L austenitic stainless steel) that provides both aesthetic appeal and superior corrosion resistance. The socket utilizes an F screw-type connector specifically engineered for satellite reception with exceptionally low signal attenuation of just 1dB maximum at 860 MHz and 1.5dB at 2150 MHz, ensuring optimal picture and sound quality.
This flush-mounted installation solution comes as a complete monobloc product ready for immediate installation, featuring a square 86x86mm cover plate with only 7mm thickness once installed on the wall. The product supports star cabling architecture where one socket connects directly to one cable from the antenna, splitter, or multiswitch, eliminating complex wiring configurations. The socket is halogen-free and offers IP21 degree of protection with IK04 impact strength rating, making it suitable for both plastic and metal flush boxes with provided screws for both installation types.
Manufactured in the UK to the highest standards, the Synergy™ Authentic TV socket delivers reliable satellite signal distribution for single outlet applications. It features toolless installation capability, remote power supply support, and operates reliably across a temperature range of 5-45°C during operation with storage capabilities from -25 to 70°C. The product is backed by comprehensive RoHS compliance documentation and includes detailed technical specifications for professional installers.
Key Features
- F screw-type connector optimized for satellite television reception
- Exceptionally low signal attenuation at 1dB maximum (860 MHz) and 1.5dB (2150 MHz)
- Brushed stainless steel Grade 304L austenitic construction for superior corrosion resistance
- Toolless installation with complete monobloc ready-to-install design
- Star cabling architecture supporting single cable connection to antenna or multiswitch
- IP21 degree of protection with IK04 impact strength rating
- Square 86x86mm cover plate with minimal 7mm installation depth
- Halogen-free construction meeting environmental standards
- Compatible with both plastic and metal flush-mounted boxes
- Remote power supply capability for advanced satellite systems
Technical Specifications
| Specification |
Value |
| Product Model | End socket for satellite television |
| Socket Type | SAT (Satellite) F-type connector |
| Connector Type | F screw-type for satellite |
| Signal Attenuation at 860 MHz | 1 dB maximum |
| Signal Attenuation at 2150 MHz | 1.5 dB maximum |
| Number of Outlets | 1 single outlet |
| Mounting Method | Flush-mounted installation |
| Assembly Type | Basic element with full cover plate |
| Cover Plate Dimensions | 86 x 86 mm square |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 37 mm |
| Installation Depth Required | Minimum 25 mm built-in installation box |
| Wall Thickness When Installed | 7 mm |
| Material Finish | Brushed stainless steel Grade 304L (non-magnetic austenitic) |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5 to 45 °C |
| Storage Temperature Range | -25 to 70 °C |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Suitable for Cable Modem | No |
| Remote Power Supply Support | Yes |
| DAB+ Support | No |
| Installation Type | Toolless installation |
| Compatible Box Types | Plastic and metal flush boxes |
| Included Accessories | Screws for flush and surface boxes in plastic and metal |
| Cabling Architecture | Star cabling - 1 socket = 1 cable to antenna, splitter or multiswitch |
| Recommended Use | Inside use only |
| Manufacturer | Legrand |
| Country of Manufacture | United Kingdom |
| Reference Number | 833041 |
| EAN Code | 3414970664884 |
Order Legrand Synergy Authentic Single F Type TV Socket Brushed Stainless Steel | 833041 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
