Description

Shop Legrand Synergy Authentic Double Pole Switched Fused Connection Unit Polished Stainless Steel | 833234 In Iraq Best Prices

Premium UK-manufactured Double Pole switched Fused Connection Unit with polished stainless steel finish, 25A rated current, locked captive fuse carrier, and compact design for maximum wiring space.

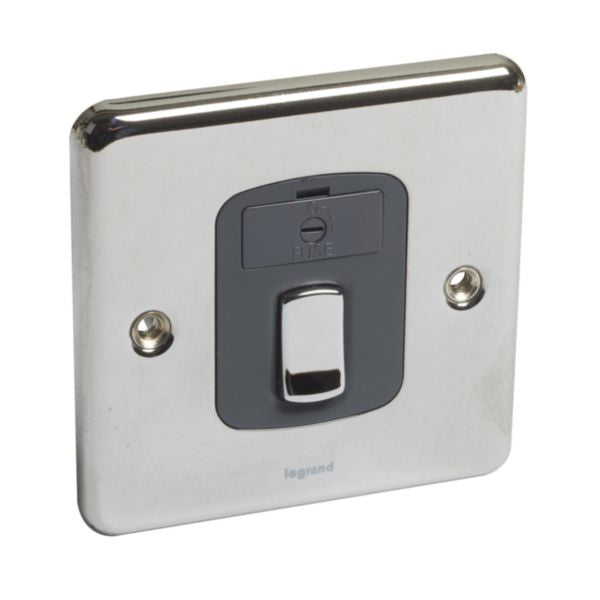

The Synergy™ Authentic Double Pole switched Fused Connection Unit is a premium electrical installation device designed for residential and commercial applications. This high-quality fused connection unit features a polished stainless steel finish that provides exceptional rust resistance and aesthetic appeal. The unit is manufactured in the UK and comes complete with all necessary installation components, including screws for both flush and surface mounting on plastic and metal boxes. This fused connection unit is engineered with screw-type terminals that accept wires up to 2x6mm² for enhanced electrical contacts and secure connections. The device features marked terminals for easy identification and maintenance, ensuring safe and efficient installation. With a rated current of 25A at 250V~, this unit is suitable for various household and commercial electrical circuits. The compact mechanism design maximizes wiring space, requiring only a minimum back box depth of 25mm, while the slim front plate maintains a professional appearance. The unit includes a fused supply with a locked captive fuse carrier that can be padlocked for added security and safety. The 5x25mm glass fuse design ensures reliable protection against electrical overloads. Complying with ASTA-880 standards, this product is recommended for indoor use only and operates reliably within temperature ranges of -5°C to 40°C. The square 86x86mm cover plate and 7mm installation thickness provide a streamlined installation profile suitable for modern electrical systems.

Key Features

  • Double pole switched design with 25A rated current at 250V~ for reliable circuit protection
  • Polished stainless steel finish provides superior rust resistance and premium aesthetic appearance
  • Screw-type terminals accept wires up to 2x6mm² for enhanced electrical contacts
  • Locked captive fuse carrier with 5x25mm glass fuse can be padlocked for added security
  • Compact mechanism design maximizes wiring space with minimum 25mm back box depth requirement
  • Marked terminals for easy identification and maintenance
  • Made in UK with complete installation kit including screws for flush and surface mounting
  • Monobloc complete product ready for immediate installation
  • IP20 degree of protection suitable for indoor residential and commercial applications
  • ASTA-880 certified for electrical safety compliance

Technical Specifications

Specification Value
Product TypeDouble Pole Switched Fused Connection Unit
BrandLegrand - Synergy Authentic
SKU/Reference833234
EAN Code3414970666468
Rated Current25A
Rated Voltage250V~ (AC)
Connection TypeScrew connection
Terminal Wire Capacity6-6 mm² (up to 2x6mm²)
Fuse TypeGlass fuse 5x25mm
Mounting MethodFront mounting (flush and surface)
Plate Dimensions86mm x 86mm (square)
Product Thickness7mm (installed)
Built-in Depth22mm
Mounting Depth32mm
Minimum Back Box Depth25mm
Degree of Protection (IP)IP20
Impact Strength (IK)IK01
Operating Temperature Range-5°C to +40°C
Storage Temperature Range-5°C to +40°C
Material - FinishPolished Stainless Steel
Fuse Carrier TypeLocked captive fuse carrier (padlockable)
CertificationASTA-880 certified
Manufacture LocationMade in UK
Installation TypeMonobloc complete product - ready to install
Included ComponentsScrews for flush and surface boxes (plastic and metal)
Recommended UseIndoor use only

Order Legrand Synergy Authentic Double Pole Switched Fused Connection Unit Polished Stainless Steel | 833234 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
