Shop Legrand Synergy Authentic Double Pole Switched Fused Connection Unit Glossy Gold | 833434 In Iraq Best Prices
Premium UK-made double pole switched fused connection unit with glossy gold finish, 13A 250V rating, padlockable fuse carrier, and screw terminals for wires up to 2X6mm². Compact design with marked terminals for easy installation.

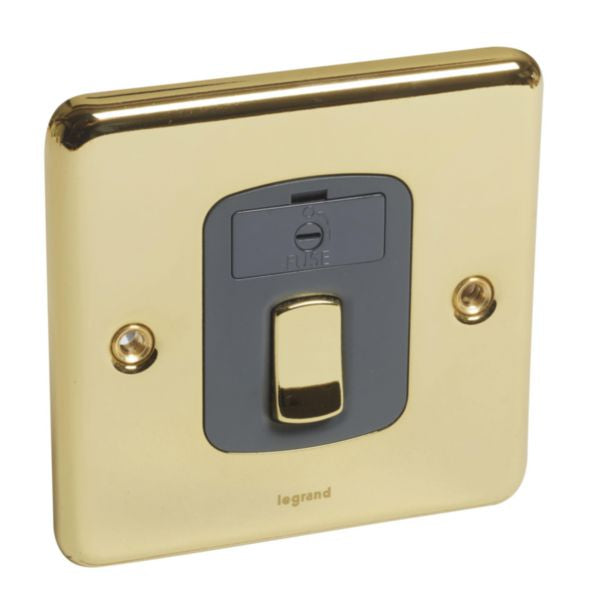

The Synergy™ Authentic Double Pole Switched Fused Connection Unit in Glossy Gold is a premium electrical installation device designed for modern homes and commercial buildings. This unit combines functionality with elegant aesthetics, featuring a distinctive glossy gold finish that complements contemporary interior design. The product is manufactured in the UK and meets the highest quality standards for electrical safety and durability.
This fused connection unit is rated at 13A, 250V~ and comes equipped with screw-type terminals that accept wires up to 2X6mm² for enhanced contact reliability. The unit features a locked captive fuse carrier that is padlockable, providing secure fuse protection and preventing accidental removal. With marked terminals for easy identification, installation technicians can quickly and accurately connect wiring without confusion. The monobloc complete product design ensures it arrives ready-to-install, reducing on-site assembly time and potential installation errors.
The Synergy™ Authentic range is specifically designed for front mounting installation with a compact mechanism that maximizes wiring space, requiring only a minimum 25mm back box depth. The square 86x86mm cover plate and 7mm product thickness ensure a sleek, professional appearance once installed. The unit is supplied with comprehensive screws compatible with both plastic and metal flush and surface boxes, making it versatile for various installation scenarios. Recommended for indoor use only, this product delivers reliability, safety, and style in one sophisticated package.
Key Features
- Double pole switched design for enhanced electrical safety and control
- Padlockable captive fuse carrier prevents accidental fuse removal and ensures security
- Screw-type terminals accept wires up to 2X6mm² for reliable connections
- Marked terminals for quick identification and error-free installation
- Monobloc complete product arrives ready-to-install with no assembly required
- Compact mechanism requires minimum 25mm back box depth for maximum wiring space
- Made in UK with superior quality standards and craftsmanship
- Glossy gold finish complements modern interior design aesthetics
- Includes screws compatible with both plastic and metal flush and surface boxes
- Square 86x86mm cover plate with 7mm thickness for sleek professional appearance
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Switched Fused Connection Unit |
| Rated Current | 13A at 32A capacity |
| Rated Voltage | 250V~ AC |
| Connection Type | Screw connection terminals |
| Wire Acceptance | Up to 2X6mm² (6-6mm²) |
| Fuse Type | Glass fuse 5x25mm with padlockable carrier |
| Mounting Method | Front mounting |
| Mounting Depth | Minimum 25mm back box |
| Cover Plate Dimensions | 86x86mm (square) |
| Product Thickness | 7mm when installed on wall |
| Built-in Depth | 22mm |
| Overall Depth | 32mm |
| Degree of Impact Strength | IK01 |
| Degree of Protection | IP20 |
| Operating Temperature Range | -5°C to 40°C |
| Storage Temperature Range | -5°C to 40°C |
| Finish | Glossy Gold stainless steel |
| Material | Stainless steel with rust resistance |
| Manufacture Country | United Kingdom |
| Terminal Type | Marked screw terminals for easy identification |
| Recommended Use | Indoor use only |
| SKU | 833434 |
| EAN Code | 3414970668127 |
| Brand | Legrand Synergy™ Authentic |
| Installation Type | Monobloc complete product ready-to-install |
