Description

Shop Legrand Synergy Authentic Double Pole Switched Fused Connection Unit Brushed Stainless Steel | 833037 In Iraq Best Prices

Premium UK-made double pole switched fused connection unit with LED indicator and cord outlet in brushed stainless steel, featuring 13A/250V rating and screw terminals for enhanced safety and reliability

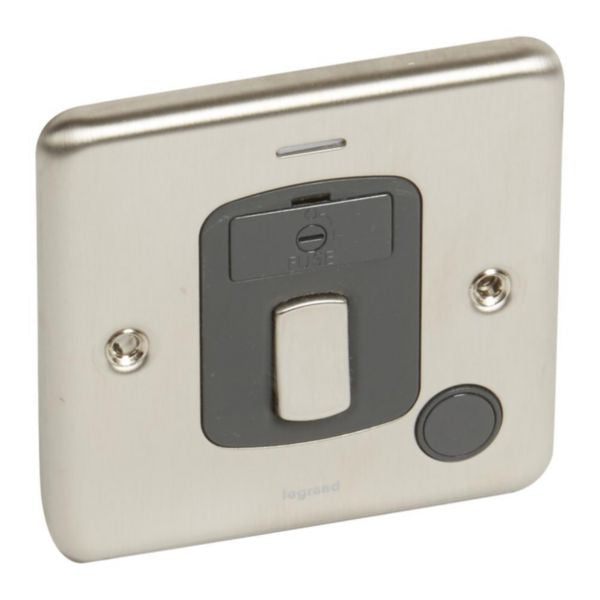

The Synergy™ Authentic Double Pole Switched Fused Connection Unit is a premium electrical wiring device designed for residential and commercial applications. This sophisticated unit combines a 13A, 250V rated double pole switch with an integrated fused connection unit and cord outlet, all housed in an elegant brushed stainless steel finish. The device features a square 86x86mm cover plate with a 7mm installation depth, making it suitable for both flush and surface mounting installations. This monobloc complete product is ready-to-install and manufactured in the UK to the highest standards. The unit incorporates screw-type terminals that accept wires up to 2X6mm², providing enhanced electrical contacts for secure connections. The LED power indicator offers visual confirmation of the connected device's operational status, while the integrated fuse protection (5x25mm glass fuse) ensures circuit safety. The austenitic stainless steel Grade 304L construction ensures durability and corrosion resistance, with the plate and switch rocker manufactured from the same premium material. The Synergy™ Authentic range is renowned for its compact mechanisms that maximize wiring space, requiring only a minimum 25mm back box depth. The product is delivered complete with screws compatible with both plastic and metal flush and surface mounting boxes. With an IK01 impact resistance rating and IP20 protection degree, this fused connection unit is ideal for indoor use and provides reliable protection for electrical appliances and equipment requiring both switching and fuse protection.

Key Features

  • Double pole switched design with 13A, 250V rating for enhanced electrical control and safety
  • Integrated cord outlet for direct connection of external devices and appliances
  • LED power indicator for visual confirmation of connected device operational status
  • Premium brushed stainless steel Grade 304L construction for superior durability and corrosion resistance
  • Screw-type terminals accepting wires up to 2X6mm² for secure and enhanced electrical contacts
  • Integrated 5x25mm glass fuse protection for circuit safety and device protection
  • Compact 86x86mm square cover plate with slim 7mm installation depth
  • Made in UK with highest manufacturing standards and quality control
  • Compatible with both flush and surface mounting installations
  • IK01 impact resistance and IP20 protection degree for indoor use reliability

Technical Specifications

Specification Value
Product TypeDouble Pole Switched Fused Connection Unit with Cord Outlet
Rated Current20 A
Rated Voltage230 V AC
Amperage Rating13 A, 250V~
Connection TypeScrew connection
Mounting MethodFront mounting
Type of CurrentAC (Alternating Current)
Fuse TypeGlass fuse 5x25 mm
Width86 mm
Height86 mm
Depth32 mm
Built-in Depth22 mm
Cover Plate DimensionsSquare 86x86 mm
Installation Thickness7 mm (once installed onto the wall)
Impact Strength RatingIK01
Protection DegreeIP20
Operating Temperature Range-5°C to +40°C
Storage Temperature Range-5°C to +40°C
Cable Section6-6 mm² (up to 2X6mm²)
MaterialAustenitic stainless steel Grade 304L (non-magnetic)
FinishBrushed stainless steel
Minimum Back Box Depth25 mm
Mounting CompatibilityFlush and surface mounting boxes (plastic and metal)
FeaturesLED power indicator, cord outlet, neon indication switch
Product FormMonobloc complete product - ready-to-install
Manufacturing OriginMade in UK
Reference Number833037
EAN Code3414970664846
Recommended UseIndoor use only

Order Legrand Synergy Authentic Double Pole Switched Fused Connection Unit Brushed Stainless Steel | 833037 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
