Shop Legrand Synergy Authentic Double Pole Switch 45A with Blue LED Polished Stainless Steel | 833221 In Iraq Best Prices

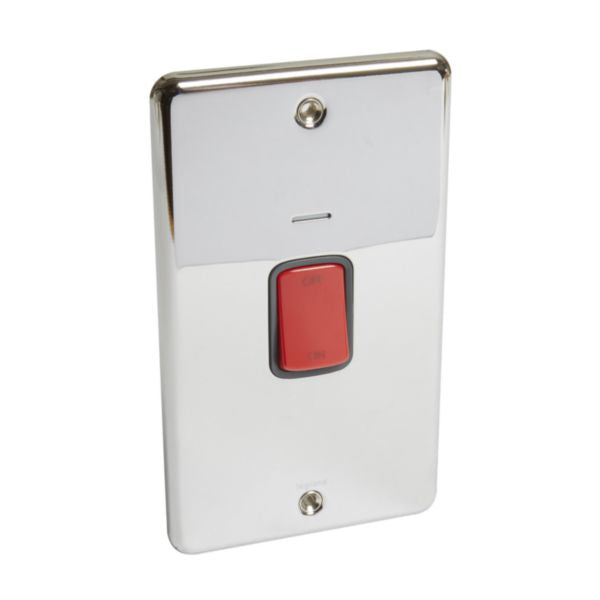

Premium 45A double pole switch with blue LED indicator, polished stainless steel finish, British Standards compliant, flush-mounted design with 2-gang vertical plate configuration.
The Synergy™ Authentic Double Pole Switch is a premium electrical switching solution designed for heavy-duty applications. This professionally engineered switch features a 45A rated capacity at 250V~, making it ideal for demanding residential and commercial installations. The switch incorporates a blue LED power indicator that illuminates when the switch is in the ON position, providing visual confirmation of power status. Manufactured from high-quality polished stainless steel, this switch offers exceptional corrosion resistance and durability, with a sleek, modern aesthetic that complements contemporary interior designs.
This flush-mounted switch is engineered to British Standards specifications and comes complete as a monobloc ready-to-install product. The 2-gang vertical plate design (146x86mm) accommodates standard installation practices and fits seamlessly into flush mounting back boxes with a minimum depth of 35mm. The screw terminals accept wires up to 16mm², providing flexible installation options for various electrical configurations. The product thickness of 7mm when installed ensures a neat, professional finish on the wall surface.
The Synergy™ Authentic switch is manufactured in the UK and delivered with comprehensive installation hardware including screws compatible with both plastic and metal flush and surface boxes. The strip length indicator on the terminal screws prevents wire waste during installation, while the backed-off terminal screws are ready for immediate cabling. With halogen-free construction and compliance with British Standards for heavy loads, this switch represents a reliable, durable choice for demanding electrical applications.
Key Features
- 45A rated capacity at 250V~ for heavy-duty electrical loads
- Blue LED power indicator illuminates when switch is ON
- Polished stainless steel construction with superior corrosion resistance
- British Standards certified for safety and performance
- Screw terminals accept wires up to 16mm² for flexible installation
- 2-gang vertical plate design (146x86mm) for standard installation
- Halogen-free construction for environmental safety
- Made in UK with comprehensive installation hardware included
- Strip length indicator prevents wire waste during installation
- Compatible with both plastic and metal flush and surface boxes
Technical Specifications
| Specification |
Value |
| Rated Current | 45A at 250V~ |
| Voltage | 250V AC |
| Frequency | 50-60 Hz |
| Wire Capacity | 10-16mm² |
| Number of Poles | 2-pole (Double pole) |
| Switching Current for Fluorescent Lamps | 45 AX |
| Method of Operation | Rocker/button |
| Mounting Method | Flush-mounted |
| Device Width | 86mm |
| Device Height | 146mm |
| Device Depth | 33mm |
| Built-in Depth | 23.5mm |
| Minimum Box Depth | 30-35mm |
| Product Thickness (Installed) | 7mm |
| Material | Polished Stainless Steel |
| LED Indicator | Blue LED, not exchangeable, illuminated on position |
| IP Rating | IP2X |
| IK Rating | IK01 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -5°C to +40°C |
| Halogen Free | Yes |
| Connection Type | Screw terminals |
| Assembly Arrangement | Basic element with full cover plate |
| Fastening Type | Screw mounting |
| Surface Finishing | Glossy |
| Degree of Protection | IP2X |
| Reference Number | 833221 |
| EAN Code | 3414970666284 |
| Recommended Use | Inside use only |
| Compliance | British Standards for heavy loads |
