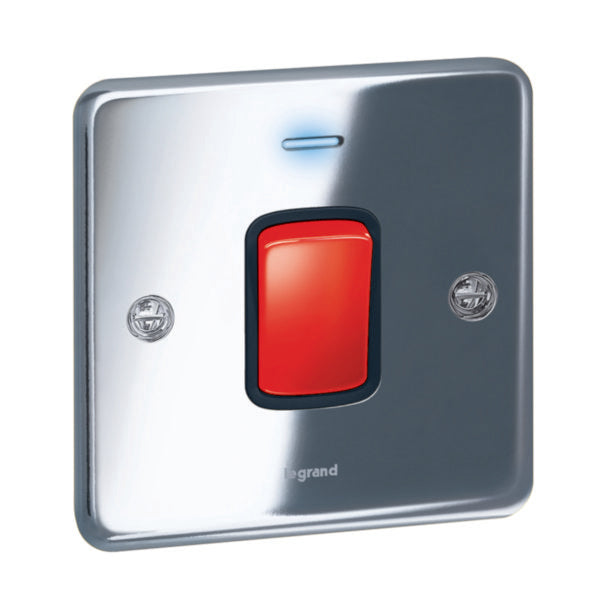

Shop Legrand Synergy Authentic Double Pole Switch 45A with Blue LED Stainless Steel | 833223 In Iraq Best Prices
Premium 45A double pole switch with blue LED indicator, polished stainless steel finish, made in UK, compliant with British Standards, suitable for heavy loads and indoor residential/commercial applications.
The Synergy Authentic Double Pole Switch is a premium heavy-duty electrical switch designed for professional and residential applications. This 45A rated switch features a polished stainless steel finish that provides exceptional rust resistance and durability in various environments. The switch is equipped with an illuminated blue LED power indicator that clearly shows when the circuit is active, enhancing safety and convenience. Manufactured in the UK to the highest quality standards, this flush-mounted switch is fully compliant with British Standards certifications and is suitable for heavy loads up to 45A at 250V AC.
The product features screw terminals that safely accept wires up to 16mm², ensuring secure and reliable electrical connections. The monobloc design makes it a complete, ready-to-install product that requires no additional components. The switch comes with all necessary mounting screws compatible with both plastic and metal flush boxes, simplifying installation. The rocker/button operation provides smooth and intuitive control, while the strip length indicator on the terminals helps minimize wire waste during installation.
With its robust construction and premium stainless steel material, this switch is ideal for areas requiring corrosion resistance and aesthetic appeal. The 86x86mm square cover plate and 7mm installation thickness ensure compatibility with standard electrical installations. Recommended for indoor use only, this switch represents the perfect combination of functionality, durability, and modern design for demanding electrical applications.
Key Features
- 45A rated capacity at 250V AC with heavy-duty performance
- Illuminated blue LED power indicator for safety and convenience
- Polished stainless steel finish with superior rust resistance
- Screw terminals accept wires up to 16mm² for secure connections
- Made in UK with British Standards certifications
- Monobloc complete product ready for immediate installation
- Strip length indicator minimizes wire waste during installation
- Compatible with both plastic and metal flush mounting boxes
- Square 86x86mm cover plate with 7mm installation thickness
- Rocker/button operation for smooth and intuitive control
Technical Specifications
| Specification |
Value |
| Rated Current | 45A at 250V AC |
| Voltage Type | AC 250V |
| Frequency | 50-60 Hz |
| Wire Capacity | 10-16 mm² screw terminals |
| Material | Stainless Steel (Polished) |
| Cover Plate Dimensions | 86 x 86 mm (Square) |
| Installation Depth | 7 mm once installed |
| Device Depth | 33 mm |
| Built-in Depth | 23.5 mm |
| Minimum Box Depth | 30 mm (35 mm recommended) |
| Switching Function | 2-pole double switch |
| Lighting | LED (Blue, not exchangeable, illuminated on) |
| Degree of Protection | IP2X |
| Impact Strength | IK01 |
| Mounting Method | Flush-mounted with screw fastening |
| Operating Temperature | -5 to +40°C |
| Storage Temperature | -5 to +40°C |
| Halogen Free | Yes |
| Surface Finishing | Glossy metallic |
| Reference Number | 833223 |
| EAN Code | 3414970666321 |
| Country of Origin | United Kingdom |
| Certification | British Standards (ASTA-783, OC/CB-FR_708126) |
| Switching Current for Fluorescent Lamps | 45 AX |
| Connection Type | Screwed terminal |
Order Legrand Synergy Authentic Double Pole Switch 45A with Blue LED Stainless Steel | 833223 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
