Shop Legrand Synergy Authentic Double Pole Switch 45A with LED Glossy Gold | 833421 In Iraq Best Prices
Premium 45A double pole switch with blue LED indicator, glossy gold finish, stainless steel construction, British Standard certified for heavy-duty residential and commercial use.

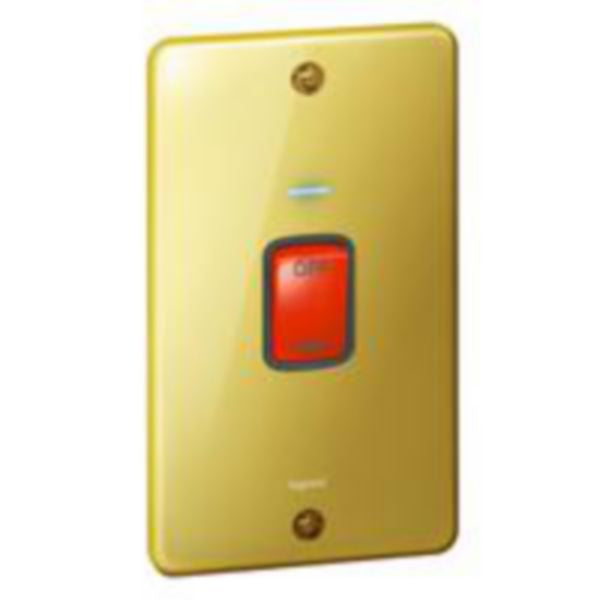

The Synergy Authentic double pole switch with blue LED power indicator is a premium electrical switching solution designed for heavy-duty residential and commercial applications. This 45A rated switch features a sophisticated glossy gold finish with a 2-gang vertical plate configuration that complements modern interior designs. The switch is manufactured in the UK using high-quality stainless steel materials, ensuring superior rust resistance and durability. The blue LED power indicator provides visual confirmation of switch status, making it ideal for applications where power status visibility is important.
This flush-mounted switch is engineered to handle demanding electrical loads with a rated current of 45A at 250V AC. The screw terminals accept wires up to 16mm², providing flexible installation options for various cable sizes. The monobloc design ensures a complete, ready-to-install product that simplifies installation procedures. The product includes mounting screws compatible with both plastic and metal flush-mounted and surface-mounted boxes, offering versatile installation flexibility. The strip length indicator on the terminals helps minimize wire waste during installation, while the backed-off terminal screws facilitate easy cabling without requiring additional preparation.
Complying with British Standards certifications for heavy loads, this switch demonstrates its suitability for professional installations. The stainless steel construction with metallic surface protection ensures long-term reliability in various indoor environments. With an operating temperature range of -5 to 40°C and frequency compatibility of 50-60 Hz, this switch maintains consistent performance across diverse climatic conditions and electrical systems.
Key Features
- 45A rated current capacity at 250V AC with heavy-duty switching capability
- Blue LED power indicator for visual on/off status confirmation
- Glossy gold finish with 2-gang vertical plate design for modern aesthetics
- Stainless steel construction with metallic surface protection for superior rust resistance
- Screw terminals accepting wires up to 16mm² with strip length indicator to minimize waste
- Monobloc complete product design ready for immediate installation
- British Standards certified for heavy loads and professional applications
- Compatible with both plastic and metal flush-mounted and surface-mounted boxes
- Operating temperature range -5 to 40°C with 50-60 Hz frequency compatibility
- Made in UK with backed-off terminal screws for simplified cabling
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Switch with LED Power Indicator |
| Rated Current | 45A at 250V AC |
| Voltage | 250V AC |
| Frequency | 50-60 Hz |
| Wire Capacity | 10-16mm² |
| Connection Type | Screw Terminals |
| Material | Stainless Steel |
| Surface Finish | Glossy Gold Metallic |
| Mounting Method | Flush-mounted |
| Device Width | 86mm |
| Device Height | 146mm |
| Device Depth | 33mm |
| Built-in Depth | 23.5mm |
| Minimum Installation Box Depth | 30mm (recommended 35mm) |
| Cover Plate Dimensions | 146mm x 86mm |
| Product Thickness (Installed) | 7mm |
| LED Indicator | Blue LED (non-exchangeable, illuminated on) |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -5°C to +40°C |
| IP Rating | IP2X |
| Impact Strength (IK) | IK01 |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Number of Rockers | 1 |
| Assembly Arrangement | Basic element with full cover plate |
| Push Button Switch | No |
| Heating Switch | No |
| Washing Machine Switch | No |
| Monitoring Contact | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa |
| Switching Current for Fluorescent Lamps | 45AX |
| Certification | British Standards |
| Origin | Made in UK |
| SKU | 833421 |
| EAN Code | 3414970667946 |
Order Legrand Synergy Authentic Double Pole Switch 45A with LED Glossy Gold | 833421 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
