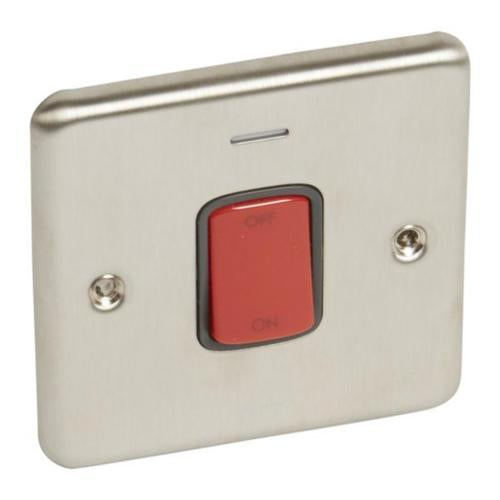

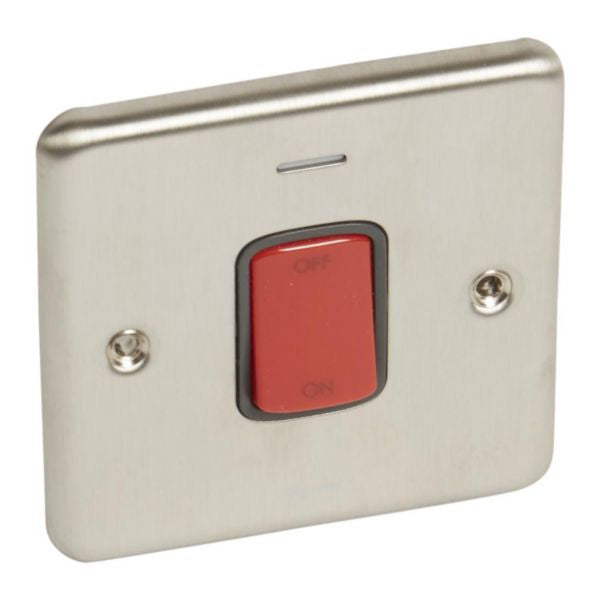

Shop Legrand Synergy Authentic Double Pole Switch 45A with Blue LED Brushed Stainless Steel | 833023 In Iraq Best Prices
Premium 45A double pole switch with blue LED indicator, brushed stainless steel finish, and British Standards certification for heavy-duty applications
The Synergy™ Authentic double pole switch is a premium electrical switching solution designed for heavy-duty applications requiring reliable power management. Featuring a robust 45A rated capacity at 250V~, this switch combines professional-grade construction with elegant brushed stainless steel aesthetics. The device incorporates an innovative oblong blue LED power indicator (11mm x 1.5mm) that provides clear visual confirmation of power status, utilizing advanced LED technology for superior reliability and energy efficiency. With screw terminals accepting wires up to 16mm², this flush-mounted switch offers exceptional flexibility for various installation scenarios and wire configurations.
Manufactured to exacting British Standards certifications, the Synergy™ Authentic switch is built for demanding commercial and residential applications. The plate features austenitic stainless steel Grade 304L construction, ensuring non-magnetic properties and superior corrosion resistance. The monobloc design delivers a complete, ready-to-install product that simplifies installation procedures. Strip length indicators integrated into the terminal design prevent unnecessary wire waste during installation, while pre-backed off terminal screws facilitate efficient cabling. The switch accommodates flush-mounted back boxes with minimum 35mm depth and features a square 86x86mm cover plate with 7mm installation thickness.
This premium switching device combines functionality with sophisticated design, making it ideal for residential, commercial, and hospitality applications where both performance and aesthetics matter. The halogen-free construction ensures environmental compliance, while the LED illumination technology guarantees minimal maintenance requirements and extended operational lifespan. Delivered complete with mounting screws suitable for both plastic and metal installation boxes, the Synergy™ Authentic switch represents the pinnacle of electrical switching excellence.
Key Features
- 45A rated capacity at 250V~ with heavy-duty performance certification
- Innovative oblong blue LED power indicator (11mm x 1.5mm) for clear status visibility
- Austenitic stainless steel Grade 304L non-magnetic plate construction
- Screw terminals accept wires up to 16mm² with strip length indicators
- Complete monobloc ready-to-install design with integrated mounting accessories
- British Standards certification for commercial and residential applications
- Halogen-free construction for environmental compliance
- LED technology ensures reliability, efficiency and minimal maintenance
- Square 86x86mm cover plate with 7mm installation thickness
- Pre-backed off terminal screws facilitate efficient cabling
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Switch with LED Indicator |
| Rated Current | 45A |
| Nominal Voltage | 250V AC |
| Frequency | 50-60 Hz |
| Wire Capacity | 10-16mm² |
| Material | Austenitic Stainless Steel Grade 304L |
| Finish | Brushed Stainless Steel |
| LED Indicator | Oblong Blue LED (11mm x 1.5mm) - Non-exchangeable |
| Mounting Method | Flush-mounted |
| Cover Plate Dimensions | 86mm x 86mm (Square) |
| Installation Thickness | 7mm |
| Device Depth | 33mm |
| Built-in Depth | 23.5mm |
| Minimum Box Depth | 30mm (minimum 35mm recommended) |
| Number of Rockers | 1 |
| Fastening Type | Screw Mounting |
| Connection Type | Screwed Terminal |
| IP Rating | IP2X |
| IK Rating | IK01 |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -5°C to +40°C |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Reference Number | 833023 |
| EAN Code | 3414970664662 |
| Certification | British Standards - Heavy Duty Applications |
