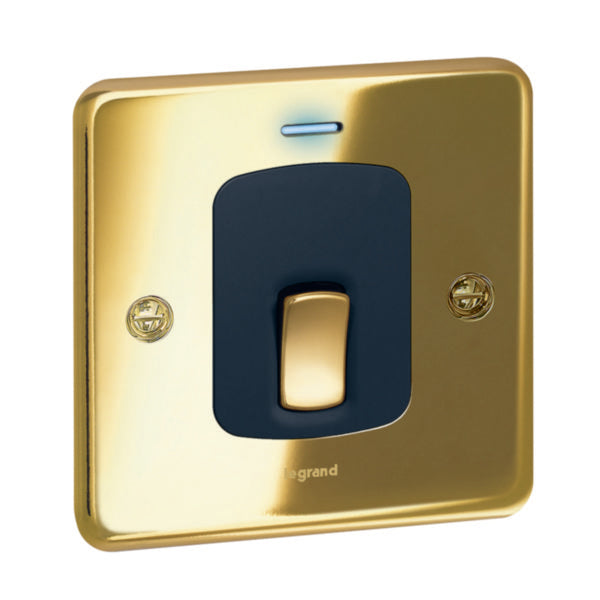

Shop Legrand Synergy Authentic Double Pole Switch 20A with Blue LED Glossy Gold | 833412 In Iraq Best Prices
Premium 20A double pole switch with blue LED indicator, glossy gold finish, stainless steel construction, and screw terminals for reliable electrical switching in residential and commercial applications.
The Synergy™ Authentic Double Pole switch is a premium electrical switching solution designed for modern residential and commercial installations. This 20A rated switch features a sophisticated glossy gold finish combined with stainless steel construction, providing both aesthetic appeal and exceptional durability. The integrated blue LED power indicator offers convenient visual confirmation of power status, with an oblong design measuring 11mm x 1.5mm that ensures optimal visibility without compromising the elegant appearance of the switchplate.
This flush-mounted switch is engineered with professional-grade specifications including screw-type terminals that accommodate wires up to 6mm² or dual 4mm² configurations. The large angled cable entries and clearly marked terminals facilitate quick and error-free installation, while the 86x86mm square cover plate with 7mm installation depth ensures seamless integration into standard wall boxes. The monobloc design delivers a complete, ready-to-install product that eliminates compatibility concerns and reduces installation time.
The Synergy™ Authentic collection represents the pinnacle of switching technology with halogen-free materials, LED technology that ensures maximum reliability and energy efficiency, and comprehensive compatibility with both plastic and metal flush-mounting boxes. Operating at 250V~ with 20AX switching capacity for fluorescent lamps, this switch meets international standards for safety and performance. The stainless steel construction provides superior rust resistance, making it ideal for demanding environments while maintaining its pristine appearance for years to come.
Key Features
- 20A rated double pole switch with 250V~ operation and 20AX fluorescent lamp switching capacity
- Integrated blue LED power indicator with oblong design (11mm x 1.5mm) for convenient power status visualization
- Glossy gold finish with stainless steel construction providing superior rust resistance and aesthetic appeal
- Screw-type terminals accepting wires up to 6mm² or 2 x 4mm² with large angled cable entries for easy installation
- Halogen-free materials and LED technology ensuring maximum reliability, energy efficiency, and environmental safety
- Monobloc complete product design ready for immediate installation with 86x86mm square cover plate
- Compatible with both plastic and metal flush-mounting boxes with included installation screws
- Strip length indicator to minimize wire waste during installation
Technical Specifications
| Specification |
Value |
| Product Type | Double Pole Switch |
| Rated Current | 20A |
| Nominal Voltage | 250V~ |
| Frequency Range | 50-60 Hz |
| Switching Current (Fluorescent Lamps) | 20AX |
| Connection Type | Screw Terminal |
| Wire Capacity | 4-6mm² or 2 x 4mm² |
| Material | Stainless Steel |
| Surface Finish | Glossy Gold |
| Lighting | Blue LED Power Indicator (Non-exchangeable) |
| LED Indicator Dimensions | 11mm x 1.5mm |
| Cover Plate Size | 86mm x 86mm (Square) |
| Installation Depth | 7mm (installed on wall) |
| Built-in Depth | 22mm |
| Device Depth | 33.5mm |
| Minimum Box Depth | 30mm |
| Mounting Method | Flush-mounted with Screw |
| Assembly Type | Basic element with full cover plate |
| Number of Rockers | 1 |
| Protection Rating | IP2X |
| Impact Strength Rating | IK01 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -5°C to +40°C |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| HomeKit Compatible | No |
| Google Assistant Compatible | No |
| Amazon Alexa Compatible | No |
| IFTTT Support | No |
| Reference Number | 833412 |
| EAN Code | 3414970667885 |
| Recommended Use | Inside use only |
