Premium 2 gang switched double pole British Standard socket outlet 13A in brushed stainless steel with safety shutters, screw terminals, and child protection features for secure residential and commercial installations.

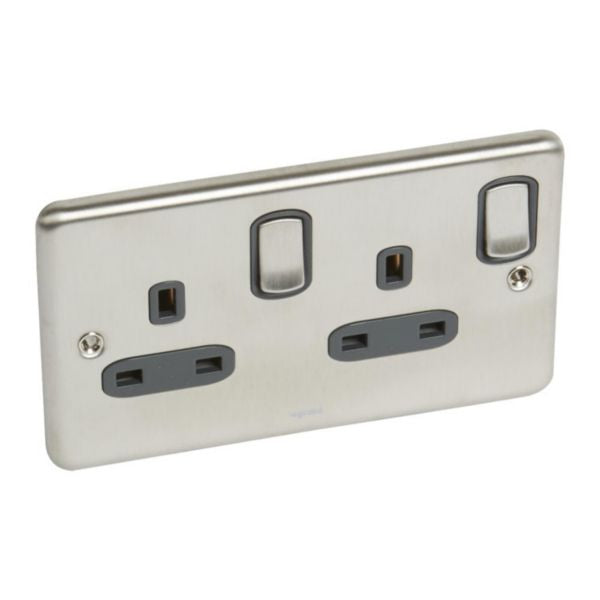

The Synergy™ Authentic 2 gang switched double pole British Standard socket outlet is a premium electrical accessory designed for modern residential and commercial installations. This 13A, 250V socket outlet features switched functionality that allows safe disconnection of electrical appliances, making it an ideal choice for high-traffic areas and safety-conscious environments. Manufactured in the UK to BS1363-2 standards with ASTA Licence certification, this product combines exceptional durability with elegant design.
Constructed from austenitic stainless steel Grade 304L (non-magnetic), the socket outlet features a brushed stainless steel finish that provides both aesthetic appeal and superior corrosion resistance. The product incorporates screw-type terminals for secured and enhanced electrical contacts, ensuring reliable performance and longevity. With a cover plate dimension of 86x146mm and a thickness of 7mm when installed, it seamlessly integrates into any wall installation. The socket includes safety shutters to maximize child protection, making it a responsible choice for families.
The Synergy™ Authentic range is engineered for ready-to-install convenience, featuring a monobloc complete product design with a strip length indicator to avoid wire waste. The terminal screws are pre-backed off for easy cabling, and the product is delivered with screws suitable for both plastic and metal flush and surface boxes. With IP2X protection rating and IK01 impact strength rating, this socket outlet is suitable for indoor use and meets international electrical standards for residential and small commercial applications.
Key Features
- Switched 2X2P+E British Standard 13A socket with 250V nominal voltage for safe appliance disconnection
- BS1363-2 compliant with ASTA Licence certification ensuring international electrical standards
- Austenitic stainless steel Grade 304L construction (non-magnetic) with brushed finish for durability and corrosion resistance
- Screw-type terminals for secured and enhanced electrical contacts with pre-backed off screws for easy installation
- Safety shutters for maximum child protection and IP2X protection rating for indoor safety
- Monobloc complete product design with strip length indicator to minimize wire waste
- Delivered with mounting screws for both plastic and metal flush and surface boxes
- Flush-mounted installation with 86x146mm cover plate and 7mm product thickness
- Operating temperature range -5 to 40°C with flexible or rigid cable support up to 6mm²
- Made in UK with loop-through function capability for flexible circuit configurations
Technical Specifications
| Specification |
Value |
| Product Type | Switched 2 gang double pole British Standard socket outlet |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Number of Modules | 4 |
| Material | Austenitic stainless steel Grade 304L |
| Surface Finish | Brushed stainless steel |
| Connection Type | Screw-type terminals |
| Cable Section Range | 6-6 mm² |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 25 mm |
| Built-in Depth | 21 mm |
| Protection Rating | IP2X |
| Impact Strength Rating | IK01 |
| Operating Temperature Range | -5 to 40°C |
| Storage Temperature Range | -5 to 40°C |
| Mounting Method | Flush-mounted with screw fastening |
| Protective Contact | Flat |
| Safety Features | Safety shutters for child protection |
| Concurrent Neutral Switching | Yes |
| Standards Compliance | BS1363-2, ASTA Licence |
| SKU | 833070 |
| EAN Code | 3414970665249 |
| Manufactured Country | United Kingdom |
| Halogen Free | Yes |
| Loop Through Function | Yes |
| Voltage Type | AC |
