Description

Shop Legrand Synergy Authentic 1-Gang Double Pole Switch 45A Glossy Gold | 833422 In Iraq Best Prices

Premium 45A double pole switch in glossy gold finish with stainless steel construction, British Standards certified for heavy loads, flush-mounted design with screw terminals up to 16mm², made in UK.

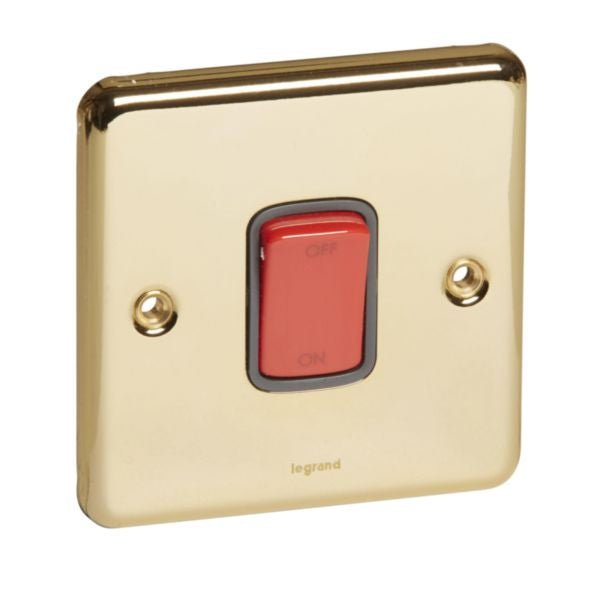

The Synergy™ Authentic 1 Gang Double Pole Switch 45A in Glossy Gold finish is a premium electrical switch designed for heavy-duty applications. This professional-grade switch is manufactured by Legrand and features a robust stainless steel construction with a sophisticated glossy gold metallic finish that complements modern interior designs. With a rated current capacity of 45A at 250V~, this switch is ideal for controlling high-power electrical circuits in residential and commercial settings. The switch features screw terminals that accept wires up to 16mm², ensuring secure and reliable connections. The monobloc complete product design means it arrives ready for installation with all necessary components included. This flush-mounted switch is designed for installation into minimum 35mm deep back boxes with a square 86x86mm cover plate and 7mm product thickness once installed on the wall. The switch complies with British Standards certifications for heavy loads and is specifically recommended for inside use only. The stainless steel construction provides excellent rust resistance, making it a durable choice for long-term use. The switch includes a red rocker button operator for easy activation and features a strip length indicator to minimize wire waste during installation. Terminal screws are pre-backed off to facilitate easy cabling installation. The product is manufactured in the UK and comes delivered with screws suitable for both flush and surface mounting in plastic and metal boxes. It operates on AC voltage with frequencies between 50-60 Hz and maintains optimal performance in temperature ranges from -5°C to 40°C. The switch is halogen-free and features IP2X degree of protection with IK01 impact strength rating. This is a monobloc complete product that provides reliable switching for heavy electrical loads with professional-grade construction and materials.

Key Features

45A rated current at 250V~ with heavy load capacity
Stainless steel construction with glossy gold metallic finish
Screw terminals accepting wires up to 16mm²
British Standards certified for reliability and safety
Strip length indicator to minimize wire waste during installation
Monobloc ready-to-install design with all components included
Made in UK with superior manufacturing quality
Pre-backed off terminal screws for easy cabling
Includes screws for both flush and surface mounting
Halogen-free and environmentally compliant

Technical Specifications

Specification	Value
Rated Current	45A
Nominal Voltage	250V AC
Frequency Range	50-60 Hz
Wire Section Range	10-16 mm²
Connection Type	Screw terminals
Switch Type	2-pole double pole
Method of Operation	Rocker/button
Mounting Method	Flush-mounted
Cover Plate Dimensions	86 x 86 mm square
Device Depth	33 mm
Built-in Depth	23.5 mm
Minimum Installation Box Depth	30-35 mm
Product Thickness (Installed)	7 mm
Material	Stainless steel
Finish	Glossy gold metallic
Rocker Color	Red
IP Rating	IP2X
IK Rating	IK01
Operating Temperature Range	-5°C to 40°C
Storage Temperature Range	-5°C to 40°C
Halogen Free	Yes
Antimicrobial Treatment	No
Number of Rockers	1
Push Button Switch	No
With Mounting Plate	No
Lighting	No
Monitoring Contact	No
Heating Switch	No
Washing Machine Switch	No
Smart Home Compatible	No (Apple HomeKit, Google Assistant, Amazon Alexa not compatible)
Switching Current for Fluorescent Lamps	45 AX
Reference Number	833422
EAN Code	3414970667960
Recommended Use	Inside use only
Standards Compliance	British Standards
Manufacturing Country	United Kingdom

Order Legrand Synergy Authentic 1-Gang Double Pole Switch 45A Glossy Gold | 833422 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
