Shop Legrand Synergy Authentic 1 Gang Switched Outlet USB 15W Charger | 833078A In Iraq Best Prices
Premium 1 gang switched outlet with integrated USB 15W charger, British Standard compliant, brushed stainless steel finish, child safety shutters, and ready-to-install design.

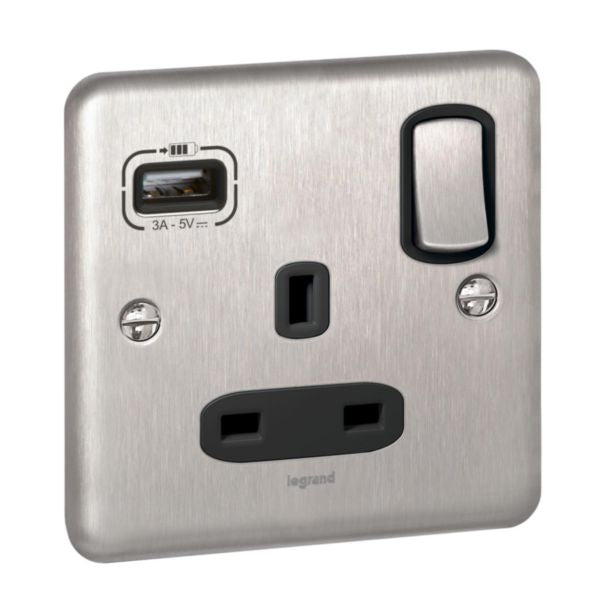

The Synergy Authentic 1 gang single pole switched outlet with USB A 15W charger combines modern functionality with elegant design. This British Standard compliant socket features a 2P+E configuration rated at 13A, 250V, and includes an integrated 3A 15W USB Type A charger for convenient device charging. The brushed stainless steel finish provides a contemporary aesthetic while offering superior rust resistance, making it ideal for both residential and commercial applications.
This monobloc complete product is ready-to-install, featuring screw-type terminals for secured and enhanced contacts. The outlet includes safety shutters to maximize child protection and is designed for flush mounting in standard 86x146mm cover plates. The product thickness of 7mm when installed ensures a sleek, professional appearance. With a strip length indicator to avoid wire waste and terminal screws pre-backed for easy cabling, installation is straightforward and efficient.
Manufactured in the UK and delivered with screws compatible with both plastic and metal boxes, the Synergy Authentic outlet represents a premium solution for modern living spaces. The halogen-free thermoplastic material ensures environmental compliance while the IP2X protection rating and IK02 impact strength provide reliable durability. Perfect for environments requiring both power outlets and USB charging capabilities in a single, stylish unit.
Key Features
- Integrated USB Type A 15W charger with 3A maximum current rating
- British Standard 2P+E 13A 250V outlet with safety shutters
- Brushed stainless steel finish with rust resistance
- Screw-type terminals for secured and enhanced contacts
- Child protection safety shutters for enhanced safety
- Ready-to-install monobloc complete product
- Strip length indicator to avoid wire waste
- Compatible with both plastic and metal mounting boxes
- Halogen-free thermoplastic material
- Flush-mounted design with 86x146mm cover plate
Technical Specifications
| Specification |
Value |
| Standard | British Standard BS1363-2 |
| Outlet Configuration | 2P+E (2 Pole + Earth) |
| Nominal Current | 13A |
| Nominal Voltage | 250V AC |
| Frequency | 50-60 Hz |
| USB Charger Type | USB Type A |
| USB Power Output | 15W |
| USB Maximum Current | 3A |
| Number of Socket Outlets | 3 (1 switched outlet + 2 USB ports) |
| Connection Type | Screw terminals |
| Terminal Capacity | 1-4 mm² |
| Cable Nature | Flexible or rigid |
| Material | Thermoplastic (Halogen-free) |
| Finish | Brushed Stainless Steel |
| Colour | Grey |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 33.6 mm |
| Built-in Depth | 23 mm |
| Minimum Box Depth | 35 mm |
| Installation Thickness | 7 mm |
| Mounting Method | Flush-mounted |
| Cover Plate Size | 86x146 mm |
| Protection Rating | IP2X |
| Impact Strength | IK02 |
| Operating Temperature | -5 to +35°C |
| Storage Temperature | -20 to +70°C |
| Safety Features | Enhanced contact protection with safety shutters |
| Compliance | IEC62368, IEC62680, RoHS, REACH |
| Manufacture | Made in UK |
| Reference Number | 833078A |
| EAN Code | 3414972429146 |
