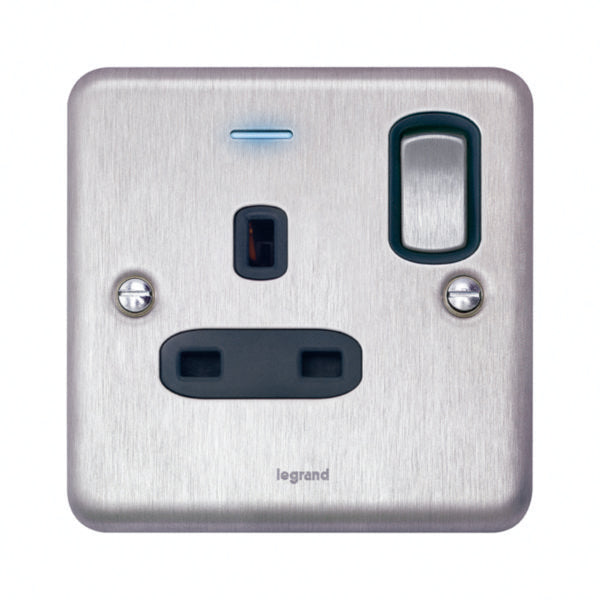

Shop Legrand Synergy Authentic 1 Gang Switched BS Socket 13A Brushed Stainless | 833067 In Iraq Best Prices
Premium British Standard 13A switched socket outlet with blue LED indicator, brushed stainless steel finish, safety shutters for child protection, and BS1363-2 certified for secure electrical connections.
The Synergy™ Authentic 1 gang switched single pole BS socket outlet 13A with blue LED power indicator represents premium electrical wiring solutions for modern homes and commercial spaces. This British Standard compliant socket outlet features a robust brushed stainless steel construction with austenitic Grade 304L non-magnetic material, ensuring durability and aesthetic appeal. The product incorporates advanced safety features including safety shutters for maximum child protection and screw-type terminals that provide secured and enhanced contacts for reliable electrical connections.
Designed for flush-mounted installation, this socket outlet features a square 86x86 mm cover plate with 7mm product thickness once installed on the wall. The integrated blue LED power indicator, measuring 11mm x 1.5mm, uses LED technology to ensure maximum reliability, efficiency, and energy saving. The monobloc complete product design makes it ready-to-install, eliminating the need for additional components. With strip length indicator avoids wire waste, and terminal screws backed off ready for cabling, installation is straightforward and professional.
This Legrand product conforms to BS1363-2 standards with ASTA License certification, making it suitable for both residential and light commercial applications. The socket supports a nominal current of 13A at 250V with 50-60 Hz frequency compatibility. It includes delivered screws for both flush and surface mounting in plastic and metal boxes, providing versatile installation options. The product meets IP2X degree of protection and IK01 impact strength ratings, making it ideal for indoor use environments.
Key Features
- British Standard BS1363-2 compliant with ASTA License certification for guaranteed quality and safety
- Brushed stainless steel Grade 304L non-magnetic construction providing durability and elegant aesthetic appeal
- Safety shutters integrated for maximum child protection and enhanced electrical safety
- Blue LED power indicator (11mm x 1.5mm) using LED technology for reliability and energy efficiency
- Screw-type terminals ensuring secured and enhanced electrical contacts with strip length indicator
- Square 86x86 mm cover plate with 7mm installation thickness for flush-mounted applications
- Monobloc ready-to-install design eliminating need for additional components
- Includes mounting screws for both plastic and metal flush and surface boxes
- IP2X protection degree and IK01 impact strength rating suitable for indoor use
- Terminal screws pre-backed off ready for cabling to streamline installation process
Technical Specifications
| Specification |
Value |
| Product Model | British Standard Single Pole Socket Outlet |
| Nominal Current | 13 Amperes |
| Nominal Voltage | 250 Volts |
| Frequency Range | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 outlet |
| Number of Switchable Outlets | 1 switchable outlet |
| Connection Type | Screwed Terminal |
| Cable Section Range | 6-6 mm² |
| Material | Stainless Steel Grade 304L |
| Surface Finish | Brushed Stainless Steel with Glossy Finish |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 29 mm |
| Built-in Depth | 25 mm |
| Cover Plate Dimensions | Square 86x86 mm |
| Installation Thickness | 7 mm |
| Degree of Protection | IP2X |
| Impact Strength Rating | IK01 |
| LED Power Indicator | Blue LED 11mm x 1.5mm |
| LED Technology | LED for maximum reliability and energy efficiency |
| Protective Contact Type | Flat |
| Number of Active Flat Contacts | 2 |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Function Lighting | Yes - Blue LED Power Indicator |
| On/Off Switch | Yes - Switched outlet |
| Loop Through Function | Yes |
| Safety Shutters | Yes - Child protection integrated |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -5°C to +40°C |
| Voltage Type | AC (Alternating Current) |
| Halogen Free | Yes |
| Metallic Colour | Yes |
| Standards Compliance | BS1363-2, ASTA Licence |
| Recommended Use | Indoor use only |
| Reference Number | 833067 |
| EAN Code | 3414970665188 |
Order Legrand Synergy Authentic 1 Gang Switched BS Socket 13A Brushed Stainless | 833067 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
