Shop Legrand Soliroc TV Socket Male 0–2400 MHz IP20 Flush Mounted | 077882 In Iraq Best Prices
Professional flush-mounted TV socket with 0-2400 MHz frequency range, IP20 protection, minimal signal loss, and halogen-free metal construction for reliable television distribution.

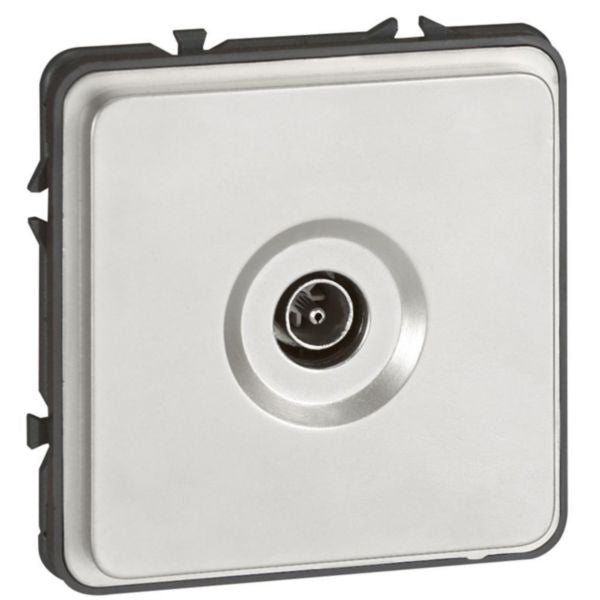

The Soliroc TV Socket is a premium flush-mounted television outlet designed for residential and commercial applications. This male TV socket features advanced frequency range coverage from 0 to 2400 MHz, making it compatible with modern digital television systems and LTE protected Class A networks. The socket delivers exceptional performance with minimal signal loss, featuring only 1 dB loss at 860 MHz and 1.5 dB loss at 2150 MHz, ensuring crystal-clear picture and sound quality for your television viewing experience.
Built with durability and safety in mind, this Soliroc socket offers IP20 protection rating and IK04 impact strength rating, providing reliable protection against dust and minor impacts. The halogen-free metal construction ensures environmental safety and compliance with modern building standards. With its sleek 70.4mm x 70.4mm design and 34.6mm depth, it integrates seamlessly into standard flush-mounted installation boxes with a minimum depth of 40mm. The socket operates reliably across a wide temperature range from 5°C to 45°C, making it suitable for various climate conditions.
The Soliroc TV socket is engineered for professional installation with secure claw and screw fastening mechanisms. It supports remote power supply functionality and is specifically designed as an end socket for television applications. This product represents the perfect balance of performance, reliability, and modern design for any television distribution system.
Key Features
- Wide frequency range 0-2400 MHz compatible with digital TV and LTE networks
- Minimal signal loss: 1 dB at 860 MHz and 1.5 dB at 2150 MHz for superior picture quality
- IP20 degree of protection rating with IK04 impact strength for durability
- Halogen-free metal construction for environmental safety and compliance
- Flush-mounted design with secure claw and screw fastening mechanism
Technical Specifications
| Specification |
Value |
| Product Type | TV Socket - Male End Socket |
| Frequency Range | 0-2400 MHz with Class A LTE Protection |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Material | Halogen-free Metal |
| Mounting Method | Flush-mounted with Claw and Screw Fastening |
| Dimensions | Width: 70.4 mm, Height: 70.4 mm, Depth: 34.6 mm |
| Minimum Installation Box Depth | 40 mm |
| Signal Loss at 860 MHz | 1 dB |
| Signal Loss at 2150 MHz | 1.5 dB |
| Operating Temperature Range | 5°C to 45°C |
| Storage Temperature Range | -25°C to 70°C |
| Number of Outlets | 1 |
| Remote Power Supply Support | Yes |
| Antimicrobial Treatment | No |
Order Legrand Soliroc TV Socket Male 0–2400 MHz IP20 Flush Mounted | 077882 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
