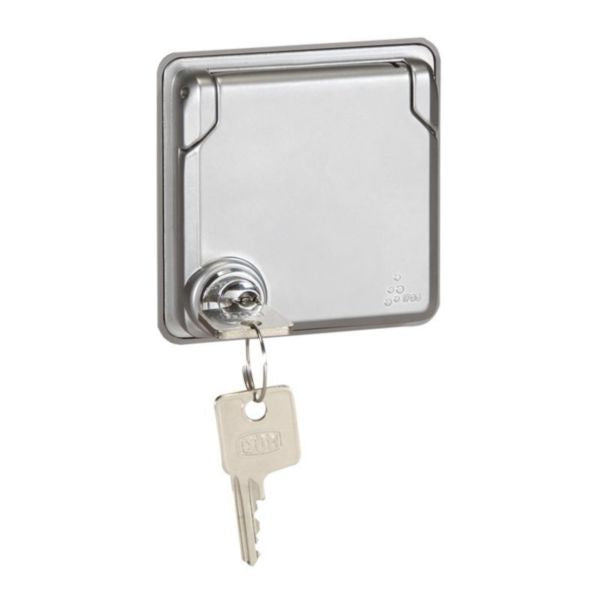

Shop Legrand Soliroc German Socket Outlet 2P+E Screw Locked IP55 | 077837 In Iraq Best Prices
Soliroc™ German-standard socket outlet with 16A/250V capacity, IK10 impact resistance, IP55 weatherproof protection, screw terminals, locked cover, and enhanced safety features for demanding environments.
The Soliroc™ Socket Outlet is a premium German-standard electrical socket designed for maximum durability and safety in demanding environments. This 16A, 250V socket features a robust IK10 impact-resistant design, making it ideal for harsh conditions and high-traffic areas. The socket incorporates screw terminals for secure wire connections and a locked hinged cover to prevent accidental contact with live components. With IP55 protection rating, this outlet is fully protected against dust ingress and water jets from any direction, making it suitable for both indoor and outdoor applications.
The Soliroc™ outlet features safety shutters and enhanced contact protection to meet the highest European electrical safety standards. The metallic chrome finish provides an attractive, professional appearance while maintaining excellent durability. The 2P+E configuration includes two active contacts and a protective earth contact, conforming to CEE 7/3 (type F) German standard specifications. The device operates at 50-60 Hz frequency and is compatible with both flexible and rigid cables ranging from 4-4 mm² cross-section.
This socket outlet is engineered for professional installations requiring reliability and compliance with strict safety regulations. The module frame mounting system allows for flexible installation options, while the insulated mounting design ensures electrical safety. Operating temperature range of -5 to 40°C and storage temperature range of -10 to 70°C demonstrate the product's versatility across various climate conditions. The halogen-free materials used in construction ensure environmental compliance and reduce toxic emissions in case of fire.
Key Features
- German Standard 16A-250V Socket with CEE 7/3 Type F Configuration
- IK10 Impact Resistance for Extreme Durability in High-Traffic Areas
- IP55 Weatherproof Protection Against Dust and Water Jets
- Safety Shutters and Enhanced Contact Protection for Maximum Safety
- Screw Terminals with Secure Wire Connections (4-4 mm² Cable Support)
- Locked Hinged Cover Preventing Accidental Contact with Live Components
- Halogen-Free Materials for Environmental Compliance
- Chrome Metallic Finish with Professional Aesthetic Design
- Wide Operating Temperature Range (-5°C to +40°C)
- Module Frame Mounting System for Flexible Installation
- Insulated Mounting Design Ensuring Electrical Safety
- 50-60 Hz Frequency Compatibility
- 2-Module System Integration
- Loop Through Function Capability
- Suitable for Both Indoor and Outdoor Applications
Technical Specifications
| Specification |
Value |
| Product Type | Socket Outlet with Protective Contact |
| Standard | German Standard CEE 7/3 (Type F) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Active Contacts | 2 (Round) |
| Protective Contact | Yes (2P+E Configuration) |
| Impact Resistance Rating | IK10 |
| Ingress Protection Rating | IP55 |
| Connection Type | Screw Terminals |
| Cable Section Range | 4-4 mm² |
| Material | Metal with Chrome Finish |
| Surface Finishing | Matt Chrome |
| Halogen Free | Yes |
| Colour | Chrome |
| Device Width | 70.4 mm |
| Device Height | 70.4 mm |
| Device Depth | 57.5 mm |
| Built-in Depth | 38 mm |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Assembly Arrangement | Basic Element with Central Cover Plate |
| Number of Modules | 2 |
| Mounting Method | Module Frame with Screw Fastening |
| Cover Type | Locked Hinged Cover |
| Safety Features | Safety Shutters, Enhanced Contact Protection |
| Cable Support | Flexible or Rigid Cables |
| Voltage Type | AC (Alternating Current) |
| Loop Through Function | Yes |
| Reference Number | 077837 |
| EAN Code | 3245060778378 |
Order Legrand Soliroc German Socket Outlet 2P+E Screw Locked IP55 | 077837 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
