Professional-grade Soliroc™ RJ45 Category 6 FTP socket with IK10 vandal resistance, IP55 weatherproof rating, and 1 Gbps data transmission. Ideal for public buildings and high-traffic areas requiring maximum durability and security.

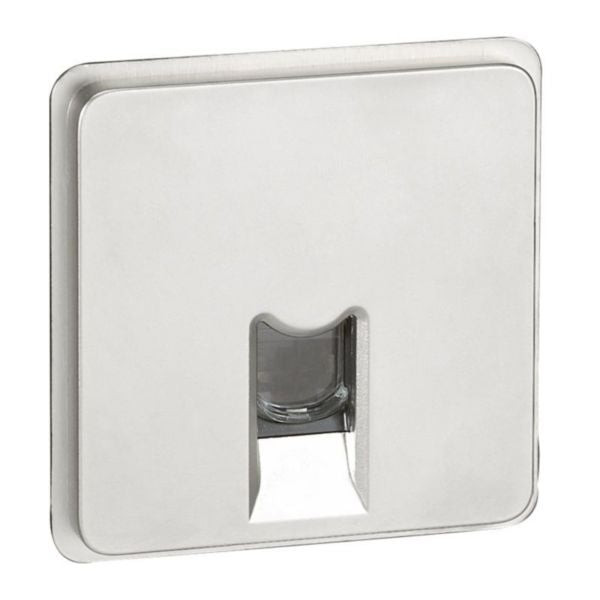

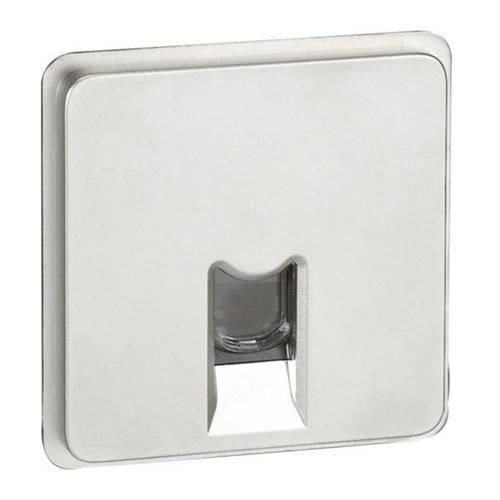

The Soliroc™ RJ45 Socket Category 6 FTP IP20 is a professional-grade network connector designed for high-performance data transmission with data rates up to 1 Gigabit per second, enabling fast file downloads of 1 GB in just 8 seconds. This robust connector features exceptional durability with an IK10 impact rating (20 joule force), making it virtually impossible to tear off thanks to four zamak sealing plugs on the plate that can only be removed by drilling. The deliberately thin plate design minimizes grip points and reduces vandalism risks, while the IP5X rating ensures complete protection against solid bodies larger than 1mm and dust penetration. Perfect for public buildings, unsupervised passageways, car parks, and communal areas requiring maximum security and reliability.
This flush-mounted connector features integrated crimping technology with fast connection capabilities, accommodating AWG 22 single-core cables up to AWG 26 and multicore cables. The IP55 rating guarantees extended useful lifetime in both indoor and outdoor environments, with all external parts constructed from zamak for optimal robustness. The connector maintains excellent performance across operating temperatures from -5°C to 40°C and storage temperatures from -10°C to 70°C. Installation is straightforward with snap-on engagement fastening, and the product is halogen-free, meeting environmental standards and safety regulations including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C.
The Soliroc™ range represents the pinnacle of vandal-resistant electrical infrastructure, specifically engineered for harsh environments and high-traffic areas. With its 2-module configuration, white RAL color, and comprehensive technical documentation, this RJ45 socket category 6 FTP connector delivers professional-grade networking infrastructure with uncompromising security and performance standards.
Key Features
- Category 6 FTP with data rates up to 1 Gigabit per second for high-speed data transmission
- IK10 impact resistance rating (20 joule impact force) with vandal-proof design using four zamak sealing plugs
- IP55 weatherproof and IP5X dust protection for both indoor and outdoor applications
- Fast integrated crimping technology supporting AWG 22 to AWG 26 single-core and multicore cables
- Deliberately thin plate design minimizing grip points and reducing risk of attempted tear-off
- Flush-mounted installation with snap-on engagement fastening mechanism
- Halogen-free construction meeting ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Operating temperature range from -5°C to 40°C with storage capability from -10°C to 70°C
- 2-module configuration with white RAL finish and color coding for terminal marking
- Suitable for public buildings, car parks, communal areas, and unsupervised passageways
Technical Specifications
| Specification |
Value |
| Product Reference | 077891 |
| EAN Code | 3245060778910 |
| Brand | LEGRAND |
| Product Line | Soliroc™ |
| Connector Type | RJ45 8(8) |
| Category | Category 6 FTP |
| Data Rate | Up to 1 Gigabit per second |
| Installation Type | Flush-mounted |
| Fastening Method | Engage (snap) |
| Number of Modules | 2 |
| Connection Type | Insulation displacement connector (IDC) |
| Supported Cable Types | AWG 22 single-core cables up to AWG 26 and multicore cables |
| Maximum Input Cable Diameter | 9 mm |
| Device Width | 70.4 mm |
| Device Height | 70.4 mm |
| Device Depth | 36.8 mm |
| Built-in Depth | 25.2 mm |
| IP Rating | IP55 |
| Dust Protection Rating | IP5X |
| Impact Resistance Rating | IK10 (20 joule impact force) |
| Operating Temperature | -5°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Color | White |
| Color Coding | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| With Dust Cover | Yes |
| Outlet Direction | Straight |
| Number of Connectors | 1 |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Recommended Mounting Box Depth | 50 mm multi-material or concrete BATIBOX (40 mm accepted) |
| Recommended Wall Plugs | 6 mm diameter expanding nylon wall plugs for concrete walls |
| Mounting Fasteners | 4 standard screws (4 mm diameter, 40 mm length) |
