Shop Snap-on Tools@Height 1/2" Drive 12-Point SAE 1/2" Flank Drive® Shallow Socket | THSW161A In Iraq Best Prices
Professional 1/2" drive shallow socket with Flank Drive® system delivering 15-25% more turning power. Features locking holes on all four sides, nickel-chrome finish, and 12-point configuration for superior grip and corrosion resistance.

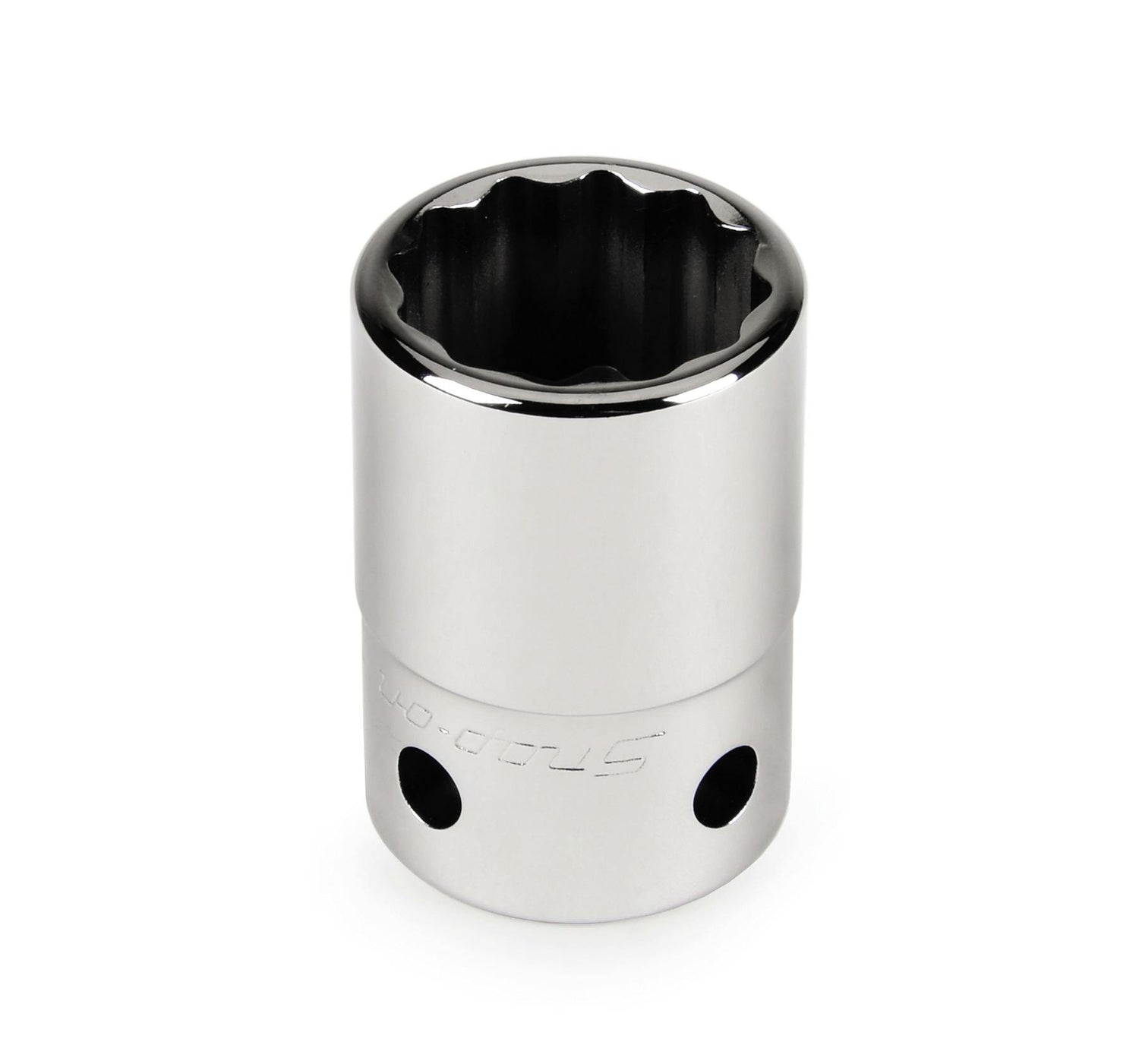

The Snap-on Tools@Height 1/2" Drive 12-Point SAE 1/2" Flank Drive® Shallow Socket (Model THSW161A) is a professional-grade socket designed for precision fastening applications. This socket features the innovative Flank Drive® wrenching system that grips fasteners on their flanks and flats, delivering 15-25% more turning power compared to traditional socket designs. The socket is manufactured from the highest quality proprietary steel, ensuring optimum strength and durability for demanding work environments.
This shallow socket is equipped with a unique locking hole on all four sides, which works in conjunction with a pin combination to significantly reduce the risk of misaligning the socket, adaptor, or extension onto the drive tool. The nickel-chrome alloy finish provides superior rust and corrosion resistance, making it ideal for use in harsh industrial environments including aviation, aerospace, military, defense, oil and gas, power generation, railroads, and general industry applications. The 12-point configuration allows for better access in tight spaces while maintaining excellent grip strength.
Weighing only 0.14 lbs (0.06 kg) and measuring 1-1/2 inches in length, this socket is part of the Tools@Height collection designed for work at heights and confined spaces. It is compatible with 1/2" drive tools and features a 1/2" hex size, making it a versatile addition to any professional tool collection. Do not use with quick release tools featuring locking collars or push button releases, as these can be inadvertently disengaged.
Key Features
- Flank Drive® wrenching system delivers 15-25% more turning power than traditional sockets
- Locking holes on all four sides reduce risk of socket misalignment with drive tool
- Nickel-chrome alloy finish resists rust and corrosion in harsh environments
- 12-point configuration allows better access in tight spaces
- Manufactured from highest quality proprietary steel for optimum strength and durability
- Lightweight design at only 0.14 lbs ideal for work at heights
- Compatible with 1/2" drive tools and extensions
- SAE 1/2" hex size for versatile fastening applications
Technical Specifications
| Specification |
Value |
| Model | THSW161A |
| Drive Size | 1/2 inch |
| Socket Size | 1/2 inch SAE |
| Point Configuration | 12-Point |
| Socket Type | Shallow |
| Wrenching System | Flank Drive® |
| Hex End Outside Diameter | 3/4 inch |
| Drive End Outside Diameter | 29/32 inch |
| Bolt Clearance Depth | 7/8 inch |
| Length | 1-1/2 inches |
| Hex Depth | 13/32 inch |
| Weight | 0.14 lbs (0.06 kg) |
| Material | Proprietary steel with nickel-chrome alloy finish |
| Finish | Nickel-chrome |
| Turning Power Advantage | 15-25% more than traditional sockets |
| Locking Feature | Locking holes on all four sides |
| Brand | Snap-on Tools@Height |
| List Price | $42.00 |
Order Snap-on Tools@Height 1/2" Drive 12-Point SAE 1/2" Flank Drive® Shallow Socket | THSW161A at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
