Professional Snap-on 1/4" Drive 12-Point Metric 14mm Deep Socket with Flank Drive technology delivering 15-25% more turning power, featuring locking holes on all sides and nickel-chrome corrosion-resistant finish for superior performance in demanding industrial applications.

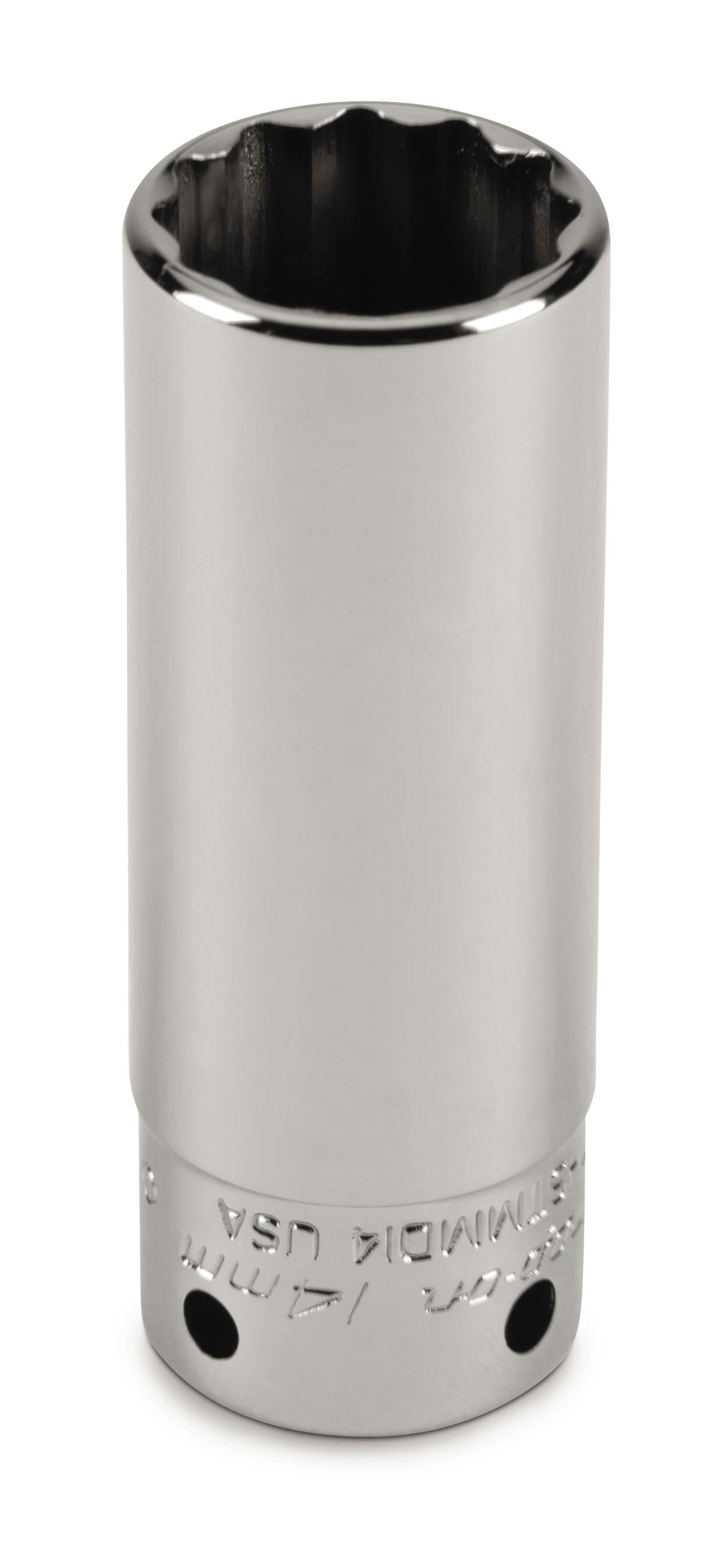

The Snap-on Tools@Height 1/4" Drive 12-Point Metric 14mm Flank Drive Deep Socket (Model THSTMMD14) is a premium professional-grade socket designed for precision fastening applications. This socket features the innovative Flank Drive wrenching system that grips fasteners on their flanks and flats, delivering 15-25% more turning power compared to traditional socket designs. The socket is engineered with a locking hole on all four sides, which works in conjunction with a pin combination to significantly reduce the risk of misaligning the socket, adaptor, or extension onto the drive tool, ensuring safe and reliable operation in demanding work environments.
Manufactured from the highest quality proprietary steel, this socket provides optimum strength and durability for heavy-duty applications. The nickel-chrome alloy finish resists rust and corrosion, extending the tool's service life even in harsh conditions. The concentric, thin-wall construction design improves both strength and accessibility, allowing users to work in tight spaces while maintaining structural integrity. With a 12-point configuration, this metric socket offers versatility in fastening applications and is ideal for aviation, aerospace, military, defense, oil and gas, power generation, railroad, and general industry maintenance operations.
The socket measures 50.8mm in length with a hex end outside diameter of 18.8mm and a drive end outside diameter of 17.8mm, making it compact yet robust. Weighing only 0.12 pounds (0.05kg), it is lightweight for easy handling and portability. This professional tool is compatible with 1/4" drive tools and is an essential addition to any technician's toolkit for precision work requiring superior gripping power and reliability.
Key Features
- Flank Drive wrenching system grips fasteners on flanks and flats for 15-25% more turning power
- Locking holes on all four sides with pin combination reduces misalignment risks
- Nickel-chrome alloy finish resists rust and corrosion in harsh environments
- Concentric thin-wall construction improves strength and accessibility in tight spaces
- 12-Point configuration offers versatility for various fastening applications
- Manufactured from highest quality proprietary steel for optimum durability
- Lightweight design at 0.12 lbs for easy handling and portability
- Compatible with 1/4 inch drive tools and professional tool systems
Technical Specifications
| Specification |
Value |
| Model Number | THSTMMD14 |
| Drive Size | 1/4 inch |
| Socket Size | 14 mm metric |
| Point Configuration | 12-Point |
| Socket Type | Deep Socket with Flank Drive |
| Hex End Outside Diameter (Dimension A) | 18.8 mm |
| Drive End Outside Diameter (Dimension B) | 17.8 mm |
| Bolt Clearance Depth (Dimension C) | 38.1 mm |
| Total Length (Dimension D) | 50.8 mm |
| Opening Depth (Dimension E) | 9.7 mm |
| Weight | 0.12 lb (0.05 kg) |
| Material | Proprietary steel with nickel-chrome alloy finish |
| Finish | Nickel-chrome alloy, rust and corrosion resistant |
| Construction | Concentric thin-wall construction |
| Locking Features | Locking holes on all four sides with pin combination |
| Brand | Snap-on Tools@Height |
| List Price | $45.00 |
