Shop Snap-On 9/32" SAE, #9 Spline, Flank Drive® 0° Offset Non-Reversible Ratcheting Combination Wrench | SOSR9 In Iraq Best Prices
Professional Snap-on ratcheting combination wrench with Flank Drive® technology, 9/32" SAE size, #9 spline, zero offset design, and 60-tooth ratchet mechanism for superior fastener removal in tight spaces.

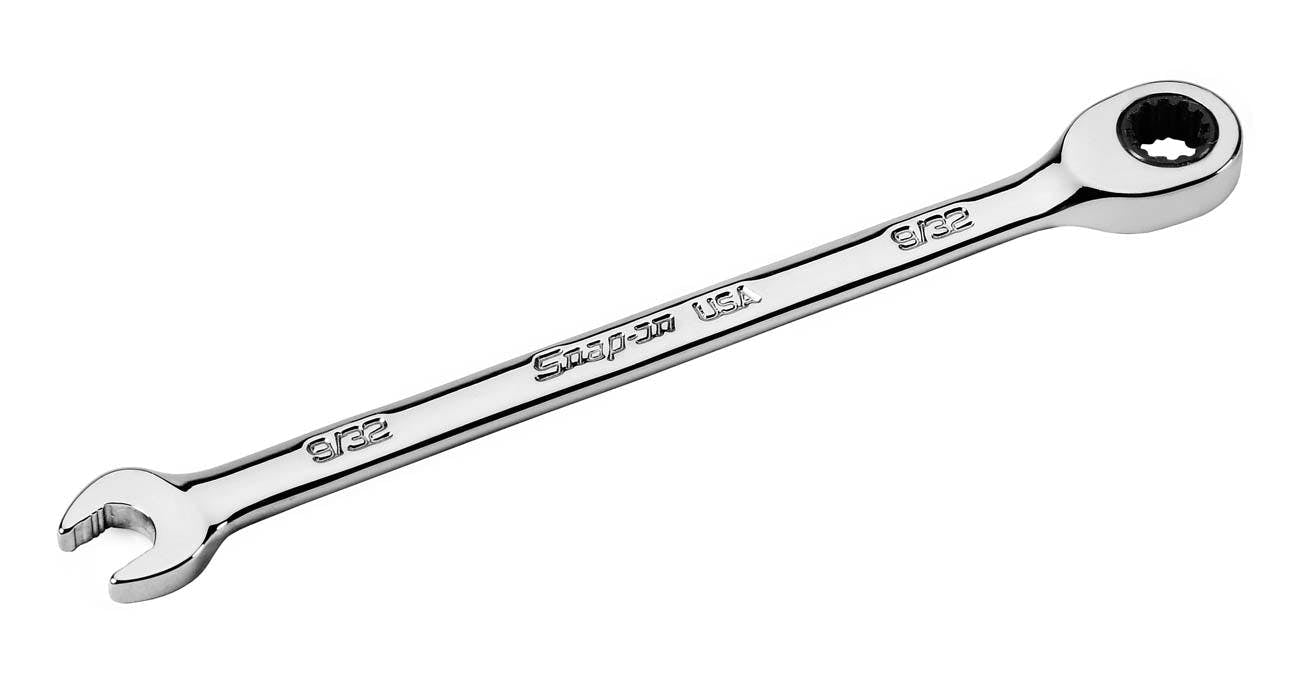

The Snap-on 9/32" SAE #9 Spline Flank Drive® 0° Offset Non-Reversible Ratcheting Combination Wrench (Model SOSR9) is a professional-grade tool engineered for demanding maintenance and repair applications. This innovative wrench features a unidirectional, zero degree offset gear design that utilizes cutting-edge Snap-on® technology to deliver exceptional power in minimal lateral space, making it ideal for accessing and removing stubborn fasteners in confined work areas. The ratcheting mechanism incorporates up to 60 teeth in conjunction with an 8-tooth pawl, significantly reducing the swing arc required to operate in restricted spaces.
Manufactured from special alloy steel and precision forged with heat treatment for optimum strength and durability, this wrench is built to withstand the rigors of professional use. The Flank Drive® wrenching system on the box end generates 15-20% more turning power than conventional wrenches while minimizing the risk of tool or fastener damage. The gears are cold formed using the same domestic steel found in Snap-on® sockets, ensuring ultimate toughness and reliability. With chrome finish and comprehensive specifications including a 5-25/32" overall length, this wrench is an essential addition to any professional tool collection.
Key Features
- Unidirectional zero degree offset gear design for maximum power in minimal lateral space
- Flank Drive® wrenching system delivers 15-20% more turning power than conventional wrenches
- Up to 60-tooth ratchet with 8-tooth pawl minimizes swing arc for restricted spaces
- Precision forged special alloy steel with heat treatment for exceptional durability
- Cold formed gears using same domestic steel as Snap-on® sockets for ultimate toughness
Technical Specifications
| Specification |
Value |
| Model/SKU | SOSR9 |
| Size | 9/32" SAE, #9 Spline |
| Wrench Type | Non-Reversible Ratcheting Combination Wrench |
| Ratcheting Box Head Diameter (Dimension A) | 21/32 inches |
| Outside Diameter (Dimension B) | 11/16 inches |
| Ratcheting Box Head Depth (Dimension C) | 1/4 inch |
| Head Depth (Dimension D) | 3/16 inch |
| Overall Length (Dimension E) | 5-25/32 inches |
| Ratchet Teeth | Up to 60 teeth with 8-tooth pawl |
| Drive System | Flank Drive® 0° Offset |
| Material | Special alloy steel, precision forged and heat-treated |
| Finish | Chrome |
| Power Advantage | 15-20% more turning power than conventional wrenches |
| Offset Angle | 0 degrees |
| Gear Design | Unidirectional with cold formed gears |
