Shop Snap-On 7/32" 12-Point SAE Flank Drive® Midget Combination Wrench | OXI7B In Iraq Best Prices
Professional-grade 7/32" midget combination wrench featuring Snap-on's Flank Drive® system for enhanced grip and up to 15-20% more turning power. Compact design for hard-to-reach areas with nickel-chrome plating for corrosion resistance.

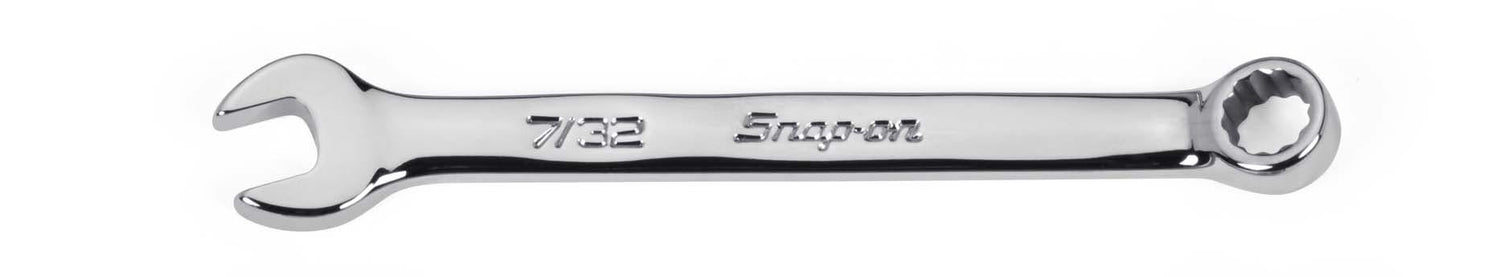

The Snap-on 7/32" 12-Point SAE Flank Drive® Midget Combination Wrench (OXI7B) is a precision-engineered hand tool designed for professional mechanics and technicians who require access to hard-to-reach fasteners. This compact midget wrench combines both open-end and box-end functionality in a single tool, making it an essential addition to any professional toolkit. The wrench features Snap-on's exclusive Flank Drive® system, which grips the fastener flats directly rather than the corners, providing up to 15-20% more turning power and significantly reducing fastener rounding and stripping.
Manufactured from special alloy steel that has been precision forged and heat treated, this wrench delivers superior strength and durability while maintaining a lightweight profile. The 7.5° offset broaching design allows users to flip the box end over to obtain a more advantageous grip on fasteners in restricted clearance areas, making it ideal for confined spaces and complex assembly work. The continuous arc design distributes stress evenly over the entire wrench opening radius, ensuring greater strength and longer tool life even under demanding conditions.
The tool features a tough, durable nickel-chrome plating that produces a mirror-like finish, effectively protecting against corrosion and making it easy to clean and maintain. Sized at 3-3/32 inches in overall length with optimized weight distribution, this midget wrench provides superior comfort and balance during extended use. The 12-point design offers versatility for working with various fastener configurations, while the compact handle design ensures maximum access to hard-to-reach areas commonly found in aerospace, automotive, and precision equipment applications.
Key Features
- Flank Drive® system provides up to 15-20% more turning power by gripping fastener flats instead of corners
- Compact midget design ensures maximum access to hard-to-reach and confined areas
- 7.5° offset broaching allows flexible grip positioning for restricted clearance applications
- Continuous arc design distributes stress evenly for superior strength and reduced breakage
- Nickel-chrome plating with mirror-like finish provides excellent corrosion resistance and easy cleaning
- Precision forged special alloy steel construction delivers exceptional durability and reliability
- 12-point design offers versatility for multiple fastener configurations
- Optimally sized and balanced for extended comfortable use without hand fatigue
Technical Specifications
| Specification |
Value |
| SKU | OXI7B |
| Size | 7/32 inches |
| Style | 12-Point |
| Type | SAE Flank Drive® Midget Combination Wrench |
| Overall Length | 3-3/32 inches |
| Dimension A (Outside Diameter) | 3/8 inches |
| Dimension B (Outside Diameter) | 1/2 inches |
| Dimension C (Head Depth) | 3/16 inches |
| Dimension D (Head Depth) | 1/8 inches |
| Finish | Chrome (Nickel-Chrome Plating) |
| Material | Special Alloy Steel, Precision Forged and Heat Treated |
| Offset | 7.5° offset broaching |
| Standard | ASME® B107.100 |
| Design Feature | Continuous Arc Design with Flank Drive® System |
| Application | Professional hand tool for mechanics and technicians |
Order Snap-On 7/32" 12-Point SAE Flank Drive® Midget Combination Wrench | OXI7B at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
