Professional 5-inch round nose pliers with heat-treated frame, precision grinding, and smooth jaw for wire handling and bending. Features internal torsion spring, screw joint alignment, and serrated grip for delicate materials.

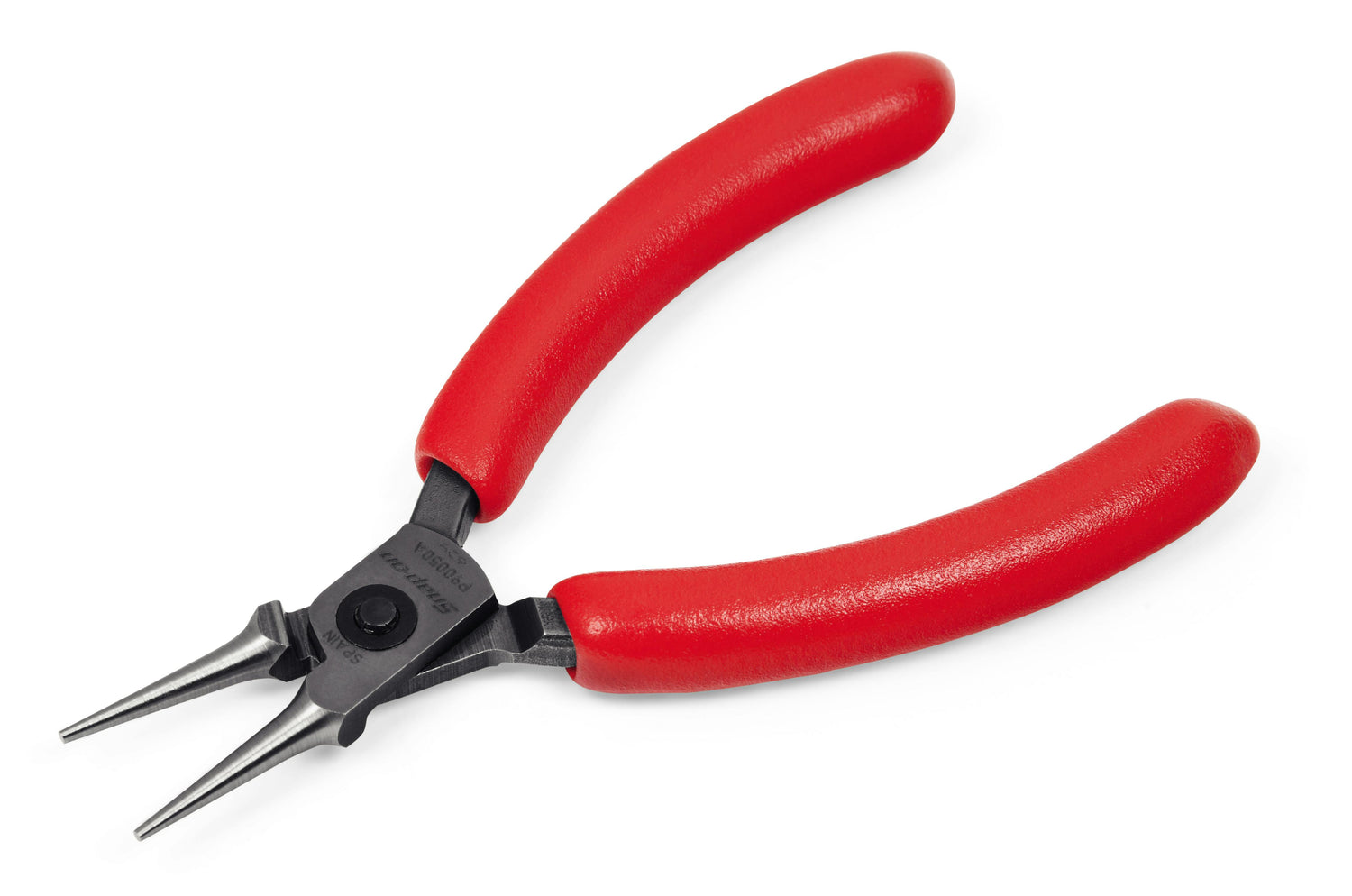

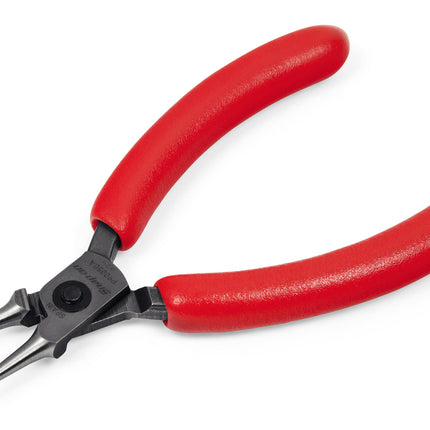

The Snap-on 5" Round Nose Pliers (Red) model P90050A is a professional-grade precision tool designed for handling and bending wire with exceptional accuracy and durability. These pliers feature a heat-treated frame hardened to 42-46 HRC, providing exceptional tool life and reliability in demanding work environments. The precision grinding in the joint greatly reduces friction, ensuring smooth operation without requiring lubrication, while the screw joint minimizes friction and maximizes jaw alignment for consistent performance.
These round nose pliers are engineered with an internal torsion spring that returns the pliers to the opening position automatically, keeping the tools always ready to work while minimizing hand fatigue during extended use. The precise serrations on the jaw allow for confident gripping of delicate materials without slipping or damaging them. The staking of the screw threads helps prevent the screw from backing out, ensuring long-term reliability and consistent performance. With a compact 5-inch length and smooth jaw style, these pliers are ideal for precision work in aviation, aerospace, automotive, and general maintenance applications.
As part of Snap-on's P-Series Precision Pliers collection, the P90050A represents the brand's commitment to quality, precision, and professional-grade performance. The red handles provide excellent visibility and are part of Snap-on's standard color coding system for easy identification in tool collections.
Key Features
- Heat-treated frame hardened to 42-46 HRC for exceptional durability and tool life
- Precision grinding in joint reduces friction for smooth operation without lubrication
- Screw joint minimizes friction and maximizes jaw alignment for consistent performance
- Internal torsion spring returns pliers to opening position automatically, reducing hand fatigue
- Precise serrations on smooth jaw allow confident gripping of delicate materials without slipping
- Staked screw threads prevent backing out ensuring long-term reliability
- Round nose design ideal for wire handling and bending applications
- Compact 5-inch length perfect for precision work in tight spaces
Technical Specifications
| Specification |
Value |
| Product Name | 5" Round Nose Pliers |
| Model Number | P90050A |
| Length | 5 inches (127 mm) |
| Jaw Flat Length | 1 inch (26 mm) |
| Head Width | 31/64 inch (12.5 mm) |
| Head Thickness | 19/64 inch (7.6 mm) |
| Tip Width | 7/64 inch (2.9 mm) |
| Tip Thickness | 3/64 inch (1.2 mm) |
| Jaw Style | Smooth |
| Head Style | Round |
| Hardness Rating | 42-46 HRC |
| Frame Treatment | Heat-treated |
| Joint Type | Screw joint with precision grinding |
| Spring Type | Internal torsion spring |
| Handle Color | Red |
| Brand | Snap-on |
| Product Line | P-Series Precision Pliers |
| List Price | $74.75 USD |
