Professional-grade 5/8–11/16" 12-Point SAE Flank Drive® offset box wrench with 10° angle for enhanced knuckle clearance and 15-20% more turning power. Chrome-plated for corrosion protection.

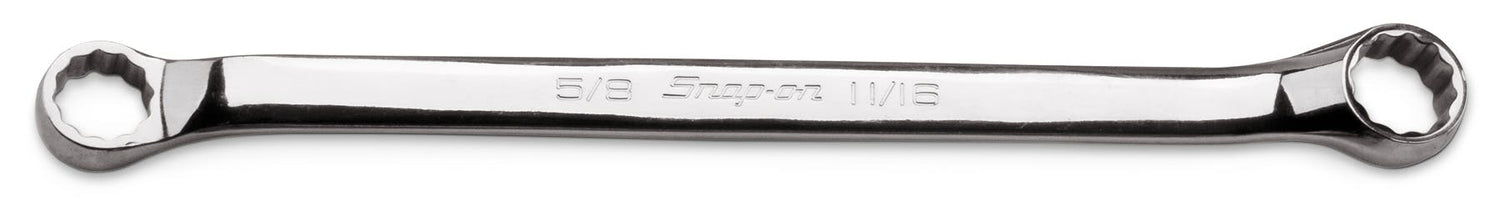

The Snap-on 5/8–11/16" 12-Point SAE Flank Drive® 10° Offset Box Wrench (Model XB2022A) is a premium precision tool engineered for professional mechanics and technicians. This wrench features the innovative Flank Drive® wrenching system that delivers up to 15-20% more turning power compared to conventional wrenches, while significantly reducing the risk of tool or fastener damage. The 10° offset design provides maximum knuckle clearance and enhanced access in confined spaces, making it ideal for tight working environments where standard wrenches cannot reach.
Constructed with a durable nickel-chrome plating, this wrench produces a mirror-like finish that provides excellent corrosion protection and easy maintenance. The extended handle length is precisely sized for optimum comfort and balance in your hand, delivering increased leverage especially in restricted spaces. The 12-point SAE configuration ensures versatility and compatibility with a wide range of fastener applications. Meeting ASME® B107.100 standards, this tool represents the gold standard in wrench engineering and reliability.
Ideal for aviation and aerospace, military and defense, oil and gas, power generation, railroads, and general industry applications, this Flank Drive® wrench is an essential addition to any professional tool collection. The precision engineering and superior construction make it a trusted choice for demanding work environments where quality and performance are non-negotiable.
Key Features
- Flank Drive® wrenching system provides 15-20% more turning power with reduced tool and fastener damage risk
- 10° offset design maximizes knuckle clearance and improves access in confined spaces
- Durable nickel-chrome plating with mirror-like finish for corrosion protection and easy cleaning
- Extended handle length optimized for comfort, balance, and increased leverage in tight spaces
- 12-Point SAE configuration for versatile fastener compatibility and professional-grade reliability
Technical Specifications
| Specification |
Value |
| Model Number | XB2022A |
| Size | 5/8–11/16 inches |
| Point Style | 12-Point SAE |
| Offset Angle | 10 degrees |
| Wrench Type | Flank Drive® Offset Box Wrench |
| Overall Length | 10-5/32 inches |
| Outside Diameter (Dimension A) | 29/32–1 inch |
| Head Depth (Dimension C) | 7/16–15/32 inches |
| Finish | Chrome with Nickel-Chrome Plating |
| Standard Compliance | ASME® B107.100 |
| Material | High-Grade Steel with Nickel-Chrome Plating |
| Turning Power Advantage | 15-20% more than conventional wrenches |
| List Price | $62.25 |
| Warranty | Snap-on Limited Lifetime Warranty |
