Professional 3/16" 12-point SAE Flank Drive midget combination wrench with compact design for hard-to-reach fasteners. Features 15-20% more turning power, 7.5° offset broaching, and durable nickel-chrome finish.

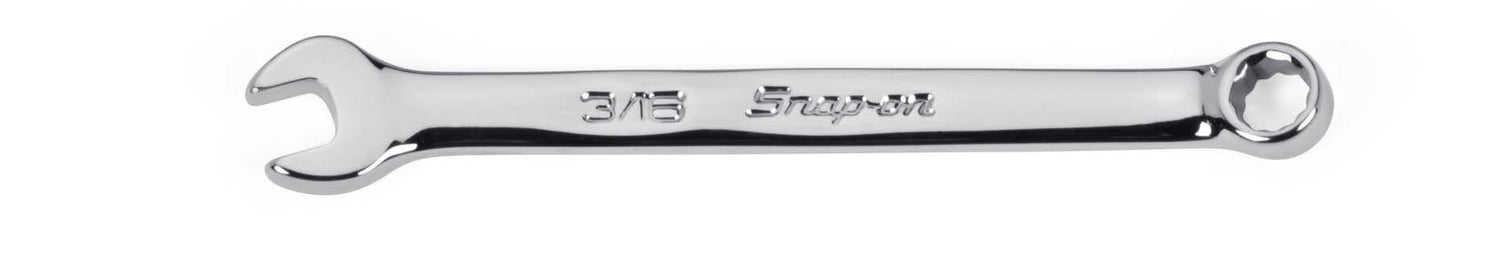

The Snap-on 3/16" 12-Point SAE Flank Drive® Midget Combination Wrench (Model OXI6B) is a premium precision tool designed for professional mechanics and technicians working in confined spaces. This compact wrench features the innovative Flank Drive® system that grips fastener flats with exceptional precision, delivering up to 15-20% more turning power compared to traditional wrenches. The combination design offers both open-end and box-end functionality in a single tool, making it an essential addition to any professional toolbox.
Manufactured from special alloy steel and precision forged with heat treatment, this midget wrench combines superior strength with optimal durability to minimize wear and breakage. The 7.5° offset broaching design allows users to flip the box end for improved grip access in restricted clearance areas, while the continuous arc design distributes stress evenly across the entire wrench opening radius. The compact handle design provides exceptional access to hard-to-reach fasteners, making it ideal for intricate automotive, aerospace, and industrial applications.
Finished with tough, durable nickel-chrome plating that produces a mirror-like finish, this wrench resists corrosion and maintains its pristine appearance with minimal maintenance. Sized for optimum comfort and balance, the wrench meets ASME® B107.100 standards and is engineered to perform reliably in professional environments. The 3/16" size makes it perfect for small fasteners and precision work where access is limited.
Key Features
- Flank Drive® system provides up to 15-20% more turning power than conventional wrenches
- Compact midget handle design for superior access to hard-to-reach fasteners
- 7.5° offset broaching allows flipping for optimal grip in restricted clearance areas
- Continuous arc design distributes stress evenly for enhanced strength and durability
- Precision forged special alloy steel with heat treatment for superior performance
- Durable nickel-chrome plating with mirror-like finish resists corrosion
- 12-point box end for versatile fastener engagement
- Meets ASME® B107.100 standards for professional quality
Technical Specifications
| Specification |
Value |
| SKU | OXI6B |
| Size | 3/16 inch |
| Style | 12-Point |
| Type | SAE Flank Drive Midget Combination Wrench |
| Material | Special Alloy Steel, Precision Forged and Heat Treated |
| Finish | Nickel-Chrome Plating |
| Length (Dimension E) | 2-31/32 inches |
| Outside Diameter A | 5/16 inch |
| Outside Diameter B | 7/16 inch |
| Head Depth C | 5/32 inch |
| Head Depth D | 1/8 inch |
| Offset Broaching | 7.5° |
| Standards | ASME® B107.100 |
| Design Feature | Continuous Arc Design with Flank Drive® System |
| Turning Power Advantage | 15-20% more than conventional wrenches |
