Shop Snap-On 1/4" Drive 6-Point SAE 5/16" Flank Drive® Semi-Deep Socket | TMS10 In Iraq Best Prices
Professional Snap-on 1/4" drive socket with 6-point design and Flank Drive® technology for superior fastener grip and 15-25% more turning power. Chrome-finished, corrosion-resistant, ASME/ANSI compliant.

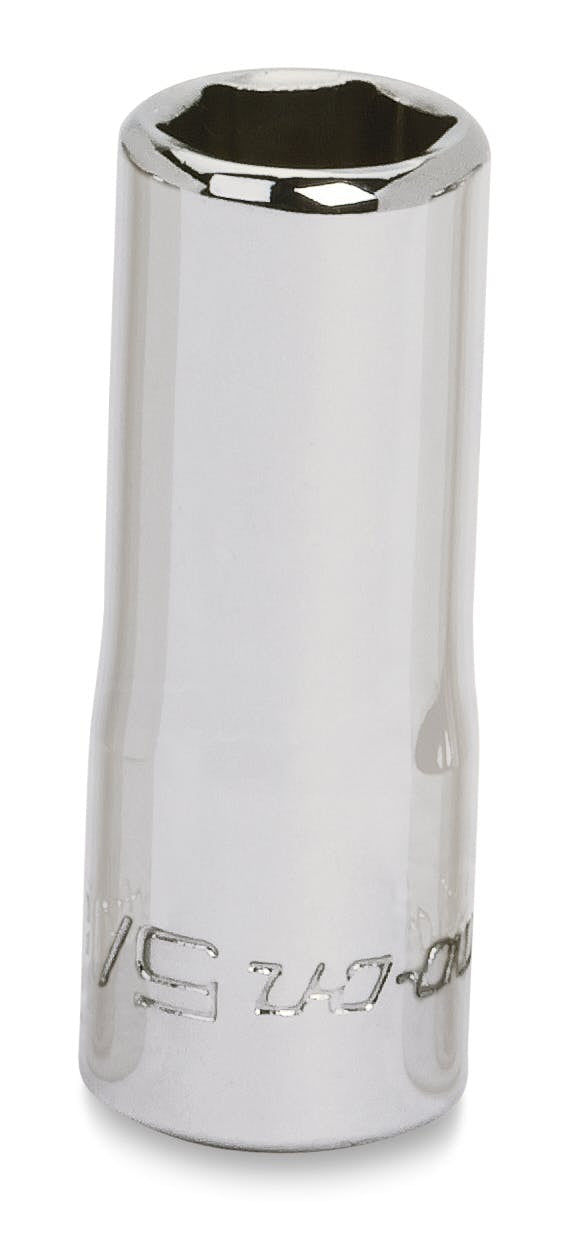

The Snap-on 1/4" Drive 6-Point SAE 5/16" Flank Drive® Semi-Deep Socket (Model TMS10) is a professional-grade fastening tool engineered for precision and durability in demanding work environments. This socket features the innovative Flank Drive® system that grips fasteners on their flanks and flats, delivering 15-25% more turning power compared to conventional sockets. This enhanced grip reduces fastener rounding and extends tool life, making it an essential addition to any professional technician's toolkit.
Manufactured from Snap-on's proprietary high-quality steel, this socket is built to withstand the rigors of heavy-duty applications while maintaining exceptional strength and durability. The nickel-chrome alloy finish provides superior rust and corrosion resistance, ensuring longevity even in harsh industrial conditions. The 6-point configuration offers excellent balance between strength and accessibility, allowing users to work with various fastener types effectively.
With dimensions precisely engineered for optimal performance, the socket features a 5/16" SAE size, 1-1/4" overall length, and a 15/32" socket end diameter. The chrome finish not only provides aesthetic appeal but also contributes to the socket's corrosion resistance. Compliant with ASME®/ANSI® B107.110 standards, this socket meets the highest industry specifications for quality and performance. Whether used in aviation, aerospace, automotive, or general industrial maintenance, this Snap-on socket delivers consistent, reliable performance.
Key Features
- Flank Drive® system grips fasteners on flanks and flats for 15-25% more turning power
- 6-point configuration for versatile fastener compatibility and optimal strength
- Nickel-chrome alloy finish provides superior rust and corrosion resistance
- Manufactured from proprietary high-quality steel for exceptional durability
- ASME®/ANSI® B107.110 compliant for industry-leading quality standards
- 1/4" drive size ideal for precision work in automotive and industrial applications
- Semi-deep socket design balances accessibility with fastener clearance
- Professional-grade construction suitable for aviation, aerospace, and heavy-duty maintenance
Technical Specifications
| Specification |
Value |
| Model Number | TMS10 |
| Drive Size | 1/4 inch |
| Socket Size (SAE) | 5/16 inch |
| Point Configuration | 6-Point |
| Socket Type | Semi-Deep |
| Overall Length | 1-1/4 inches |
| Socket End Diameter (Dimension A) | 15/32 inch |
| Drive End Diameter (Dimension B) | 15/32 inch |
| Bolt Clearance Depth (Dimension C) | 23/32 inch |
| Hex Depth (Dimension E) | 9/32 inch |
| Finish | Chrome |
| Material | Proprietary High-Quality Steel |
| Corrosion Resistance | Nickel-Chrome Alloy Finish |
| Standards Compliance | ASME®/ANSI® B107.110 |
| Technology | Flank Drive® System |
| List Price | $25.75 |
Order Snap-On 1/4" Drive 6-Point SAE 5/16" Flank Drive® Semi-Deep Socket | TMS10 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
