Professional 18V brushless cordless impact wrench with 325 ft-lb breakaway torque, LED work light, and three torque settings for versatile fastening applications.

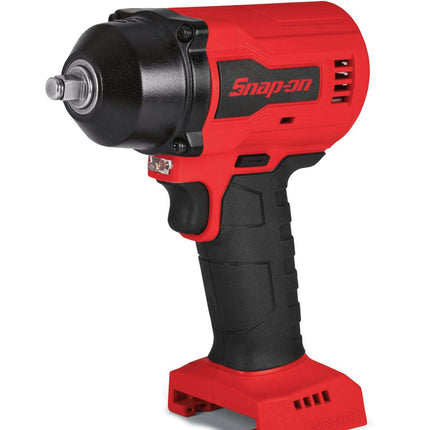

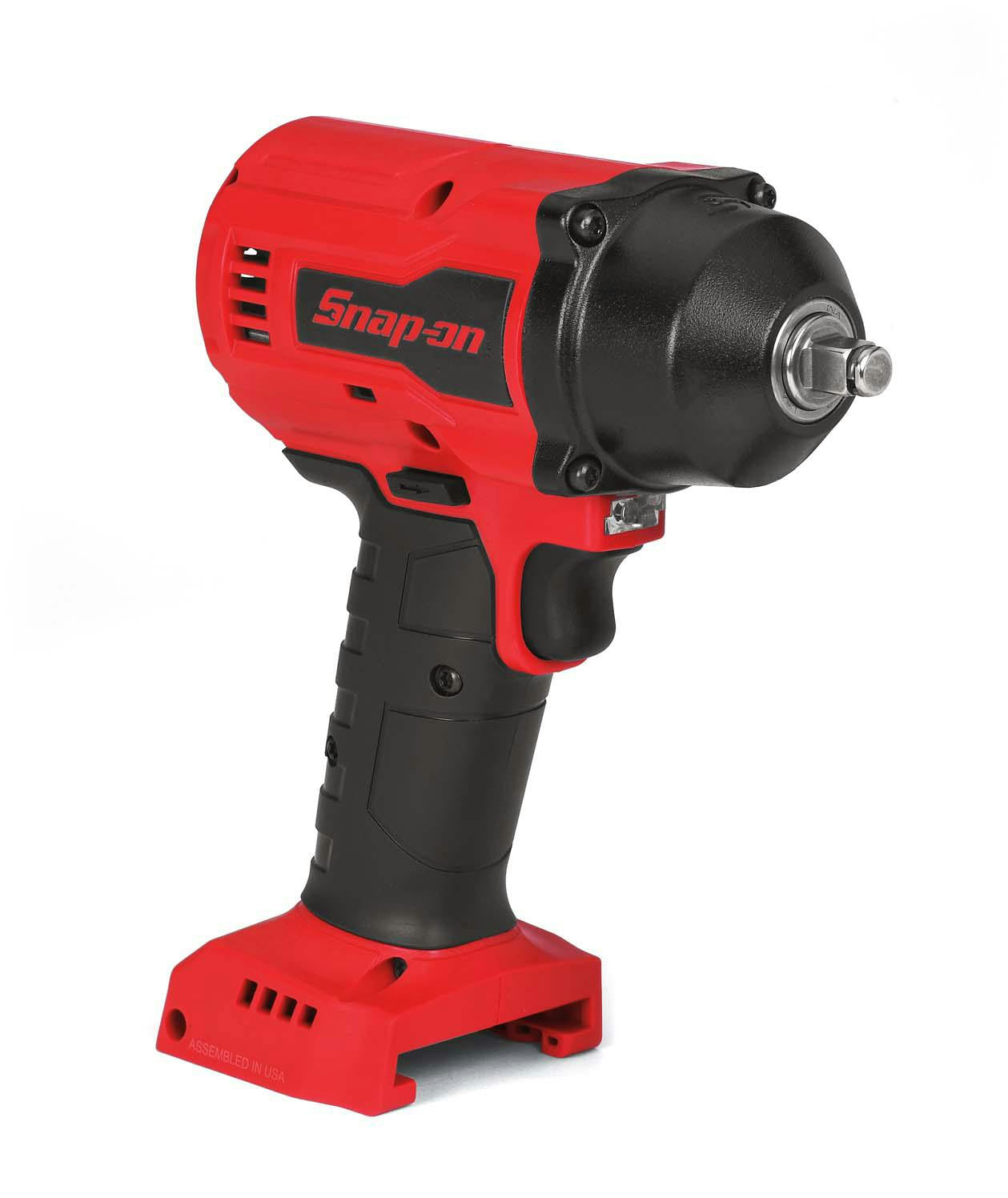

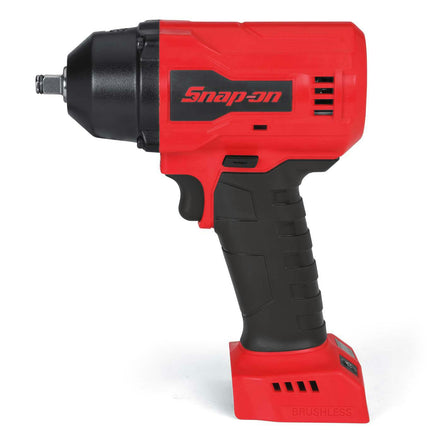

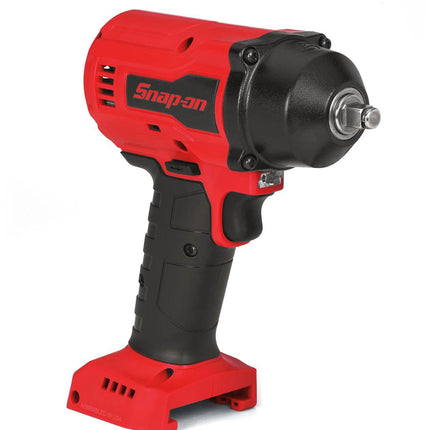

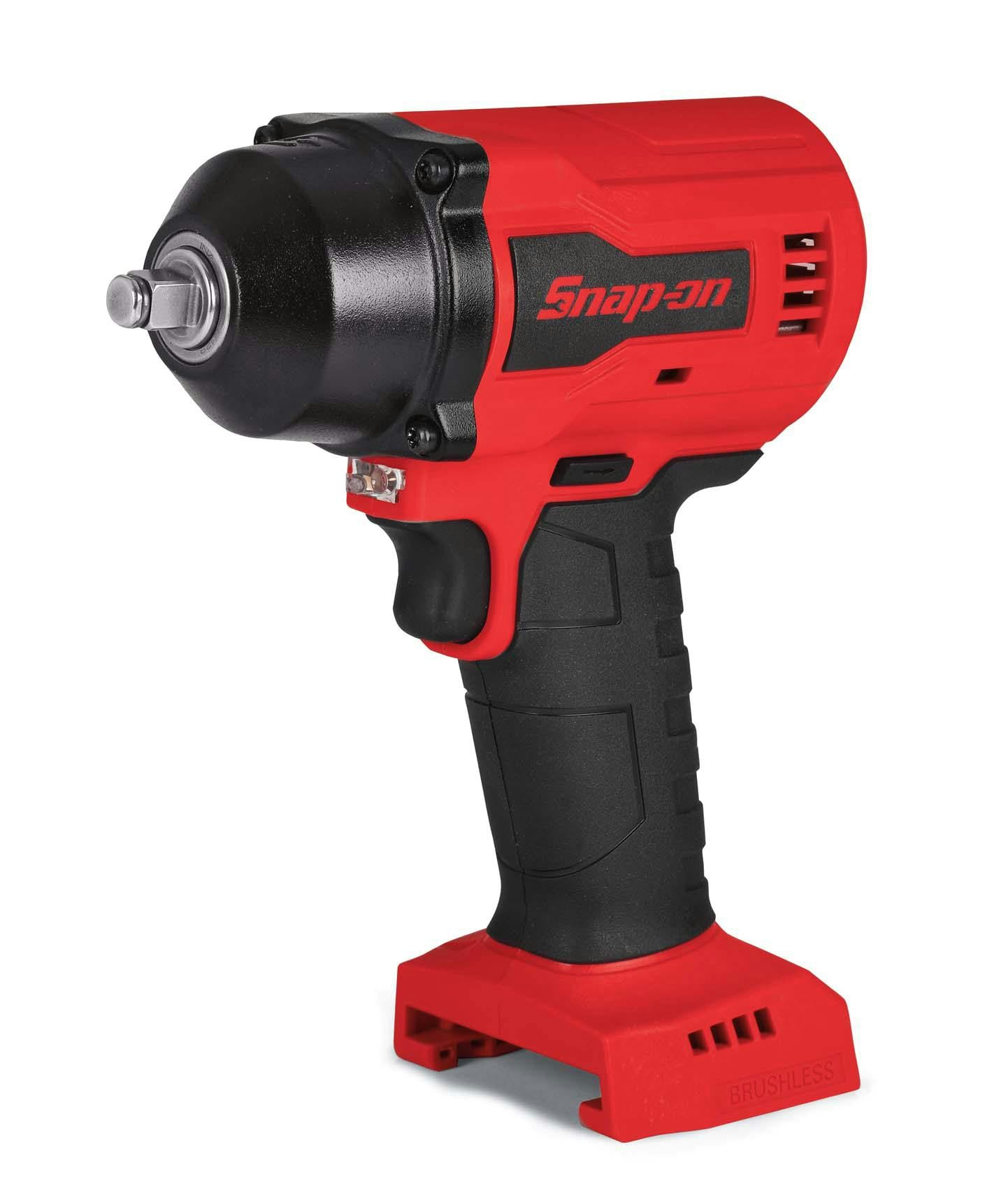

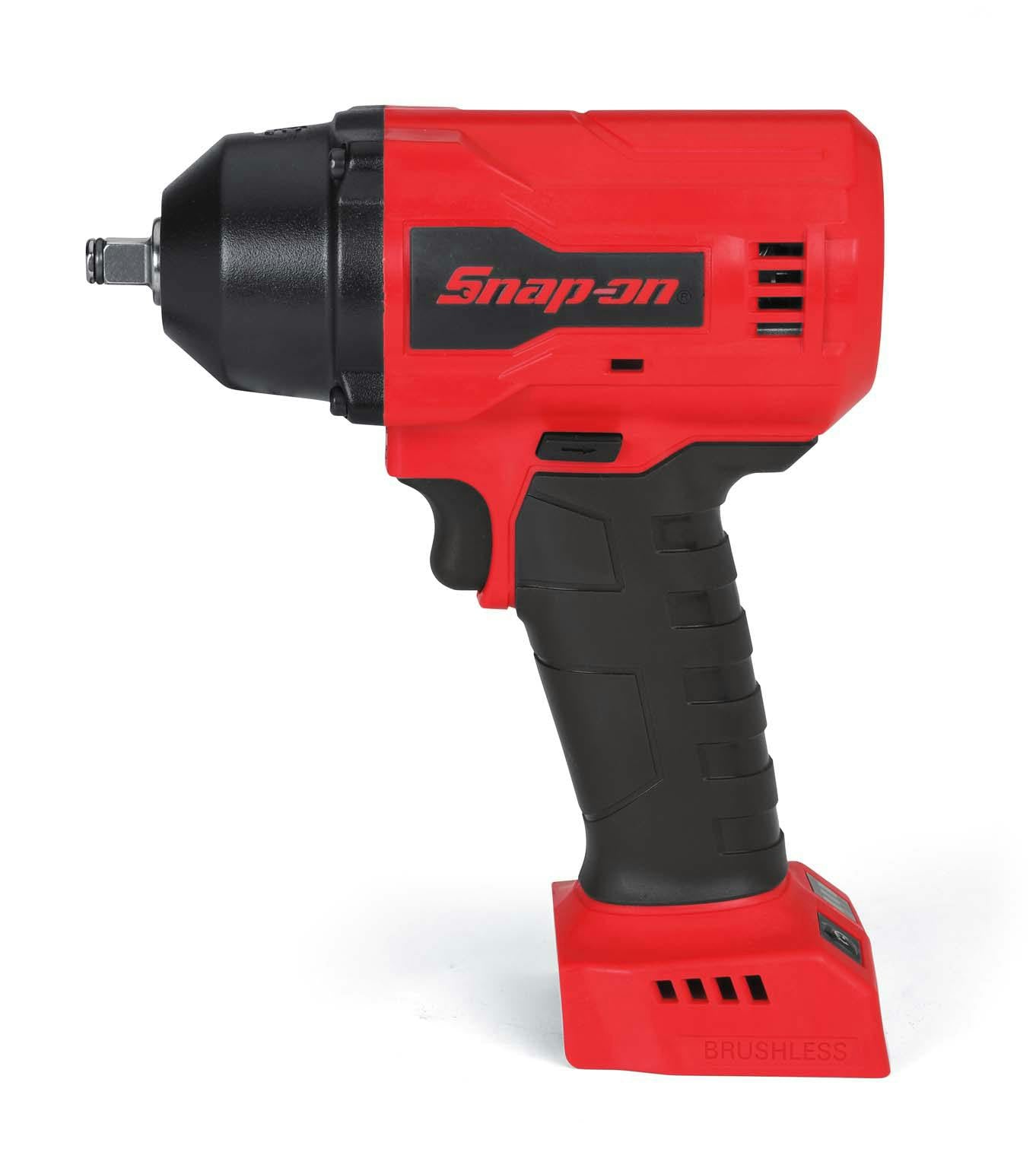

The Snap-on CT9010DB is a professional-grade 18 Volt 3/8" Drive Lithium Brushless Cordless Impact Wrench designed for demanding automotive and industrial applications. This tool-only model delivers exceptional power with 325 ft-lb of bolt breakaway torque and 240 ft-lb of working torque output, making it ideal for loosening stubborn fasteners and assembly tasks. The brushless motor technology ensures extended runtime and superior durability compared to traditional brush motors, while the variable speed trigger provides precise control for different fastening applications.
Equipped with advanced features including three torque settings to adapt to various applications and a super bright 100 lm LED light output for enhanced visibility in dimly lit work areas, the CT9010DB offers versatility and reliability. Operating at 3,500 blows per minute with a free speed of 1,760 RPM, this impact wrench maintains consistent performance throughout the charge cycle. The compact design measures 6.7 inches in length and weighs just 3.3 pounds without battery, ensuring reduced operator fatigue during extended use.
This tool-only version (batteries and charger not included) is compatible with Snap-on's 18V lithium battery system, specifically the CTB185 5.0 Ah battery and CTC131A charger with 75-minute charge time. The friction ring anvil provides reliable fastener engagement, while the comprehensive 2-year warranty on the tool and charger, plus 2-year/1,000 cycle warranty on batteries, demonstrates Snap-on's commitment to quality and customer satisfaction.
Key Features
- 325 ft-lb bolt breakaway torque with 240 ft-lb working torque output
- Brushless motor for extended runtime and superior durability
- Three torque settings for versatile application adaptation
- Super bright 100 lm LED light output for enhanced visibility
- Variable speed trigger for precise fastening control
- 3,500 blows per minute impact rate for efficient fastening
- Compact 6.7-inch length design reduces operator fatigue
- Friction ring anvil for reliable fastener engagement
- Compatible with 18V Snap-on lithium battery system
- Professional-grade construction for demanding industrial use
Technical Specifications
| Specification |
Value |
| Model Number | CT9010DB |
| Voltage | 18 Volts |
| Drive Size | 3/8 inch (10 mm) |
| Bolt Breakaway Torque | 325 ft-lb (441 N·m) |
| Working Torque Output | 240 ft-lb (325 N·m) |
| Blows Per Minute | 3,500 BPM |
| Free Speed | 1,760 RPM |
| Motor Type | Brushless |
| Motor Size | 54 mm |
| Anvil Type | Friction Ring |
| Length | 6.7 inches (170 mm) |
| Height | 8 inches (203 mm) |
| Height with Battery | 10 inches (254 mm) |
| Weight | 3.3 lb (1.5 kg) |
| Weight with Battery | 4.9 lb (2.22 kg) |
| LED Light Output | 100 Lumens |
| Torque Settings | Three adjustable settings |
| Battery Type | Lithium 5.0 Ah (CTB185 - Not Included) |
| Charger Model | CTC131A (Not Included) |
| Charge Time | 75 minutes |
| Tool Warranty | 2 Years |
| Charger Warranty | 2 Years |
| Battery Warranty | 2 Years / 1,000 Cycles |
| Package Contents | Tool Only (Batteries and Charger Not Included) |
| Color | Red |
