Professional-grade 5" flat nose pliers with heat-treated frame, precision grinding, and smooth jaw operation for delicate small parts handling

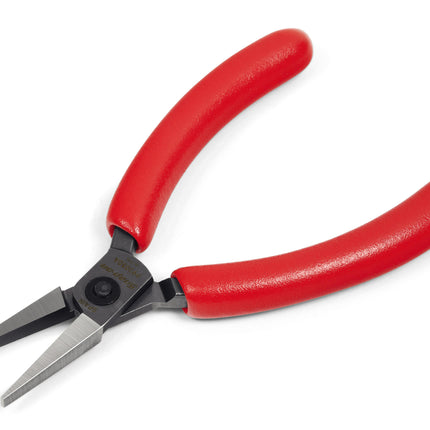

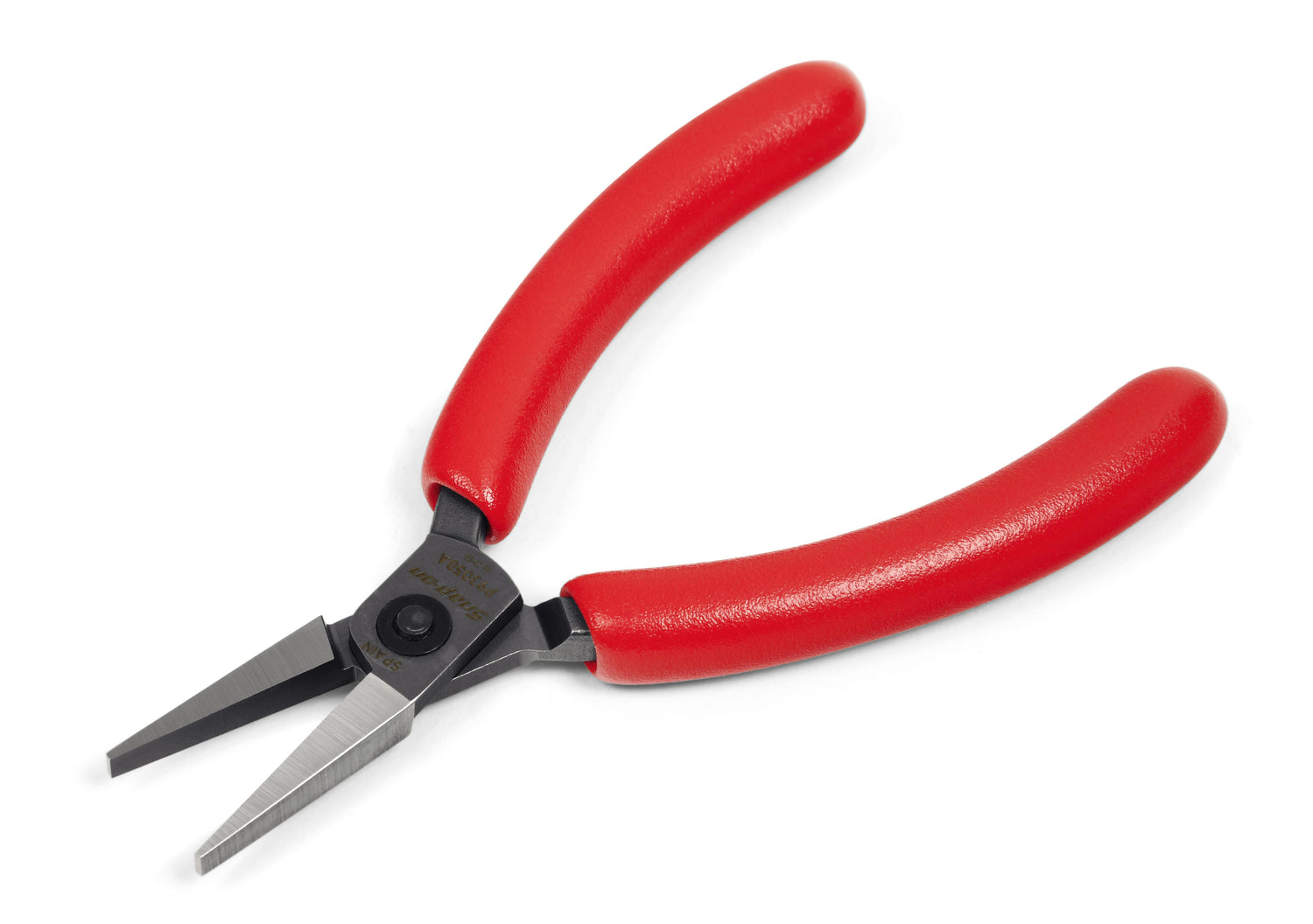

The Snap-on 5" Flat Nose Pliers (Model P93050A) represent the pinnacle of professional hand tool engineering, designed specifically for handling delicate small parts with precision and control. These premium pliers feature a heat-treated frame that delivers exceptional tool life and durability under demanding work conditions. Manufactured using hot forged technology, the proprietary alloyed steel is precisely aligned to follow the profile of the shank, resulting in extraordinary tenacity and toughness that withstands repetitive use in industrial, aerospace, and precision assembly applications.
The engineering excellence of these pliers is evident in every detail. Hardened to 42-46 HRC, the tool maintains its edge and performance through thousands of cycles. The precision grinding in the joint significantly reduces friction, enabling smooth operation without requiring lubrication. The screw joint design minimizes friction while maximizing jaw alignment for consistent, accurate gripping. An internal torsion spring automatically returns the pliers to the opening position, keeping the tool ready for continuous work while reducing hand fatigue during extended use. The staking of the screw threads prevents backing out, ensuring reliable performance throughout the tool's lifetime.
With dimensions of 5-5/64 inches in length and a jaw flat length of 1-3/32 inches, these pliers offer the perfect balance of reach and control. The smooth jaw style and flat head design make them ideal for delicate work requiring precision. Whether you're working in electronics assembly, jewelry making, model building, or professional maintenance, these Snap-on flat nose pliers deliver the reliability and performance that professionals demand.
Key Features
- Heat-treated frame for exceptional tool life and durability
- Hot forged technology with proprietary alloyed steel for extraordinary tenacity and toughness
- Hardened to 42-46 HRC for superior edge retention and performance
- Precision grinding in joint reduces friction for smooth operation without lubrication
- Internal torsion spring returns pliers to opening position reducing hand fatigue
- Screw joint design minimizes friction and maximizes jaw alignment
- Staked screw threads prevent backing out ensuring reliable performance
- Smooth jaw style ideal for handling delicate small parts
- Professional-grade construction for industrial and precision applications
- Snap-on quality and reliability trusted by professionals worldwide
Technical Specifications
| Specification |
Value |
| Product Model | P93050A |
| Overall Length | 5-5/64 inches (129 mm) |
| Jaw Flat Length | 1-3/32 inches (28 mm) |
| Head Width | 31/64 inches (12.5 mm) |
| Head Thickness | 19/64 inches (7.6 mm) |
| Tip Width | 5/64 inches (1.8 mm) |
| Tip Thickness | 5/64 inches (1.9 mm) |
| Jaw Style | Smooth |
| Head Style | Flat |
| Hardness Rating | 42-46 HRC |
| Material | Proprietary alloyed steel, heat-treated |
| Manufacturing Process | Hot forged technology |
| Joint Type | Screw joint with precision grinding |
| Spring Type | Internal torsion spring |
| Color | Red |
| Brand | Snap-on Incorporated |
| List Price | $74.75 |
| Application | Delicate small parts handling, precision work |
