Professional 5-inch 90° bent needle nose pliers with serrated jaws, heat-treated frame, and precision-ground joint for superior performance in confined spaces and detailed work.

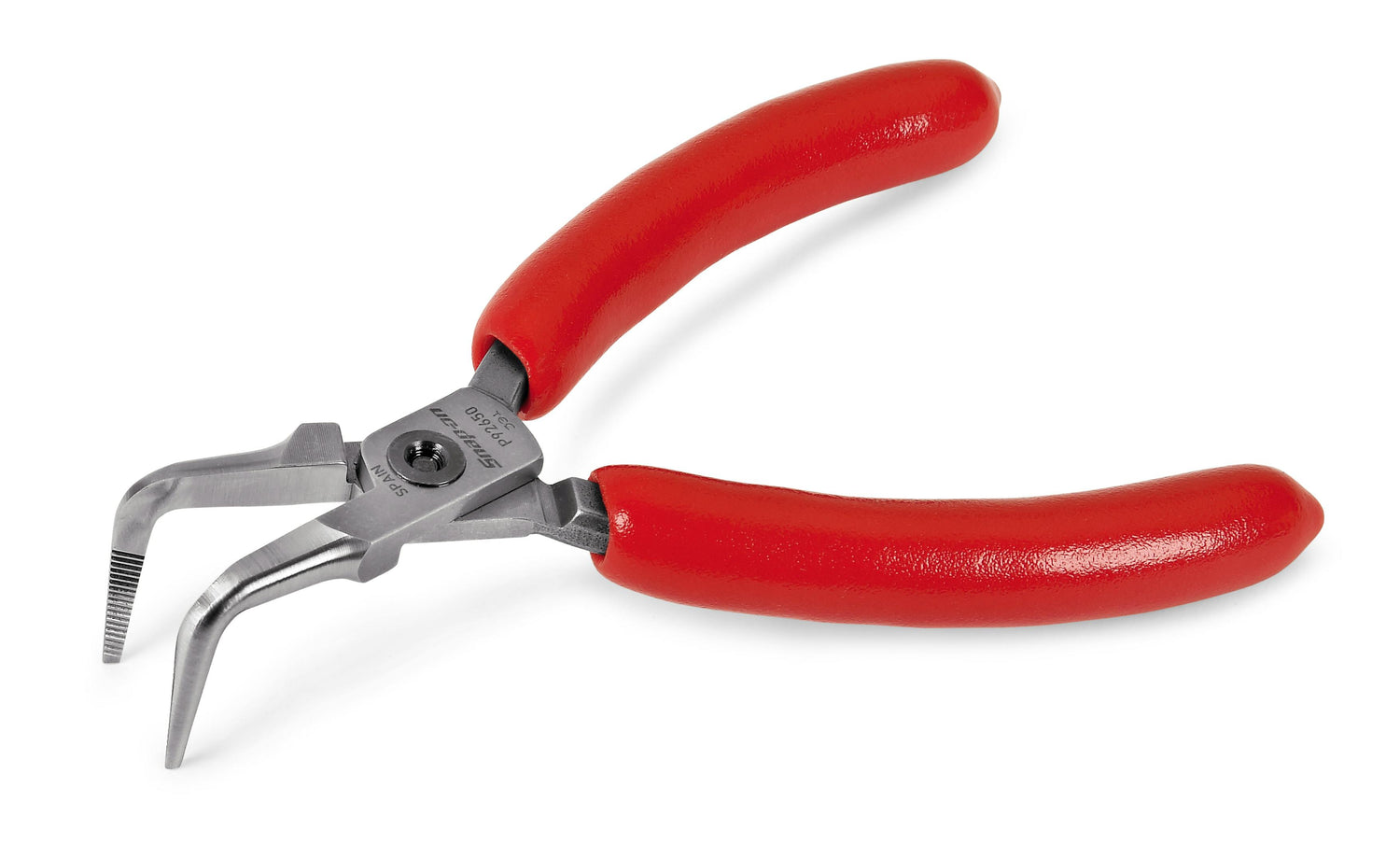

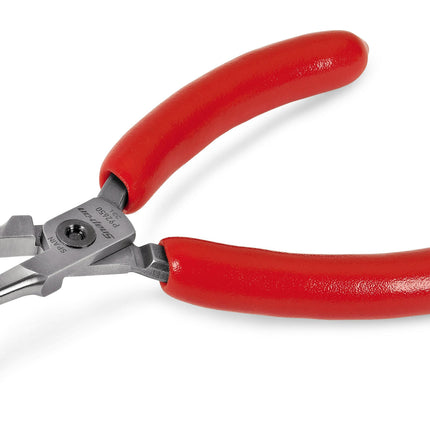

The Snap-on 5" 90° Bent Needle Nose Pliers (Model P92650A) represent professional-grade precision hand tools engineered for demanding applications in confined spaces and intricate work environments. These specialized pliers feature bent tips at a 90-degree angle, making them ideal for accessing hard-to-reach areas where standard straight pliers cannot perform effectively. The serrated jaws provide secure gripping of small delicate parts while the heat-treated frame ensures exceptional durability and extended tool life.
Manufactured using Snap-on's proprietary hot forged technology, these pliers align the grain structure of specially alloyed steel to follow the profile of the shank, delivering extraordinary tenacity and toughness that withstands rigorous industrial use. The precision-ground joint significantly reduces friction, enabling smooth operation without requiring lubrication. Hardened to 42-46 HRC, the tool maintains its edge and structural integrity through countless applications. The internal torsion spring automatically returns the pliers to the open position, minimizing hand fatigue during extended use and keeping the tool always ready for the next task.
Designed for professionals across aviation, aerospace, military, defense, oil and gas, power generation, and general industry sectors, these needle nose pliers meet the exacting standards expected from Snap-on tools. The precise serrations ensure confident gripping of delicate materials without slipping, while the screw joint design minimizes friction and maximizes jaw alignment. Thread staking prevents screw backup, ensuring long-term reliability. Measuring 4-29/32 inches in length with a 1-7/32 inch jaw flat length, these pliers offer the perfect balance of reach and control for precision work.
Key Features
- 90-degree bent tips for accessing hard-to-reach confined spaces
- Serrated jaws for secure gripping of small delicate parts and materials
- Heat-treated frame with hardness rating of 42-46 HRC for exceptional durability
- Hot forged proprietary alloyed steel with grain structure alignment for superior tenacity
- Precision-ground joint that reduces friction and enables smooth operation without lubrication
- Internal torsion spring returns tool to open position and minimizes hand fatigue
- Screw joint design minimizes friction and maximizes jaw alignment
- Thread staking prevents screw backup ensuring long-term reliability
- Ideal for aviation, aerospace, military, oil and gas, and industrial applications
- Professional-grade Snap-on quality and precision engineering
Technical Specifications
| Specification |
Value |
| Model Number | P92650A |
| Overall Length | 4-29/32 inches (125 mm) |
| Jaw Flat Length | 1-7/32 inches (31 mm) |
| Head Width | 31/64 inches (12.5 mm) |
| Head Thickness | 19/64 inches (7.6 mm) |
| Tip Width | 5/64 inches (1.8 mm) |
| Tip Thickness | 5/64 inches (1.9 mm) |
| Jaw Style | Serrated |
| Head Style | 90° Bent |
| Material | Proprietary alloyed steel with hot forged technology |
| Hardness | 42-46 HRC |
| Joint Type | Screw joint with precision grinding |
| Spring Type | Internal torsion spring |
| Color | Red |
| List Price | $91.75 |
