Professional 27mm metric angle head wrench with Flank Drive® Plus technology providing 62% more power, four working positions, and superior corrosion resistance for demanding industrial applications.

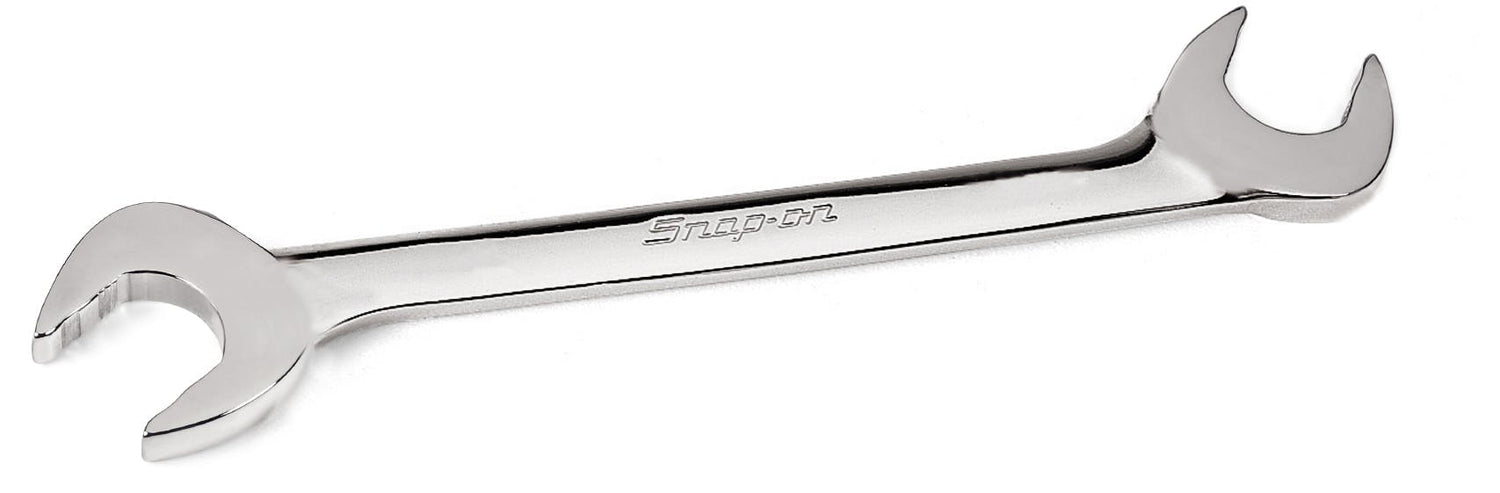

The Snap-on 27mm Metric Flank Drive® Plus Four-Way Angle Head Open-End Wrench (Model SVSM27A) is a premium professional-grade hand tool engineered for maximum performance in demanding industrial applications. Featuring the innovative Flank Drive® Plus wrenching profile, this wrench provides up to 62% more turning power and strength compared to conventional wrenches, while effectively preventing fastener slipping and rounding. The dual offset angles of 30° and 60° to the handle enable four different working positions from a single wrench, significantly improving accessibility in confined spaces and tight working environments.
Manufactured from specially formulated alloy steel and subjected to rigorous heat treatment processes, this wrench delivers exceptional durability and longevity in the most demanding professional settings. The nickel-chrome plating provides superior corrosion resistance and maintains a clean, professional appearance even after extended use. With identical sizes on both ends, this angle head wrench offers unmatched versatility, allowing technicians to work efficiently without carrying multiple tools. The carefully engineered dimensions ensure optimal comfort and balance during extended use.
This professional tool meets ASME® B107.100 standards and is ideal for aviation and aerospace, military and defense, oil and gas, power generation, railroad maintenance, and general industrial applications. The 27mm size makes it particularly suited for larger fasteners commonly found in heavy equipment and fleet maintenance operations. Whether you're working in cramped engine compartments or accessing hard-to-reach bolts, this four-way angle head wrench delivers the reliability and performance that professional technicians demand.
Key Features
- Flank Drive® Plus wrenching profile delivers up to 62% more turning power and strength
- Prevents fastener slipping and rounding for reliable grip and performance
- Four working positions from single wrench with 30° and 60° offset angles
- Special alloy steel construction with heat treatment for maximum durability
- Nickel-chrome plating provides corrosion resistance and easy maintenance
- Identical sizes on both ends for versatile multi-position use
- ASME® B107.100 certified professional-grade tool
- Optimal comfort and balance engineering for extended use
- Suitable for aviation, aerospace, military, oil and gas, and industrial applications
- Compact 283mm length for accessibility in confined spaces
Technical Specifications
| Specification |
Value |
| Model Number | SVSM27A |
| Size | 27 mm |
| Type | Metric Flank Drive® Plus Four-Way Angle Head Open-End Wrench |
| Length | 283 mm |
| Outside Diameter (Dimension B) | 53 mm |
| Head Depth (Dimension D) | 9 mm |
| Material | Special alloy steel, heat-treated |
| Finish | Nickel-chrome plated |
| Offset Angles | 30° and 60° to handle |
| Working Positions | Four positions |
| Standards Compliance | ASME® B107.100 |
| Power Advantage | Up to 62% more turning power than conventional wrenches |
| Corrosion Resistance | Nickel-chrome plating for superior protection |
| End Configuration | Same size on both ends |
| List Price | $115.00 |
