Professional 22-24mm Metric Flank Drive Offset Box Wrench with 12-point design, 10° offset handle for superior knuckle clearance, and up to 15-20% more turning power. ASME B107.100 compliant with nickel-chrome plating.

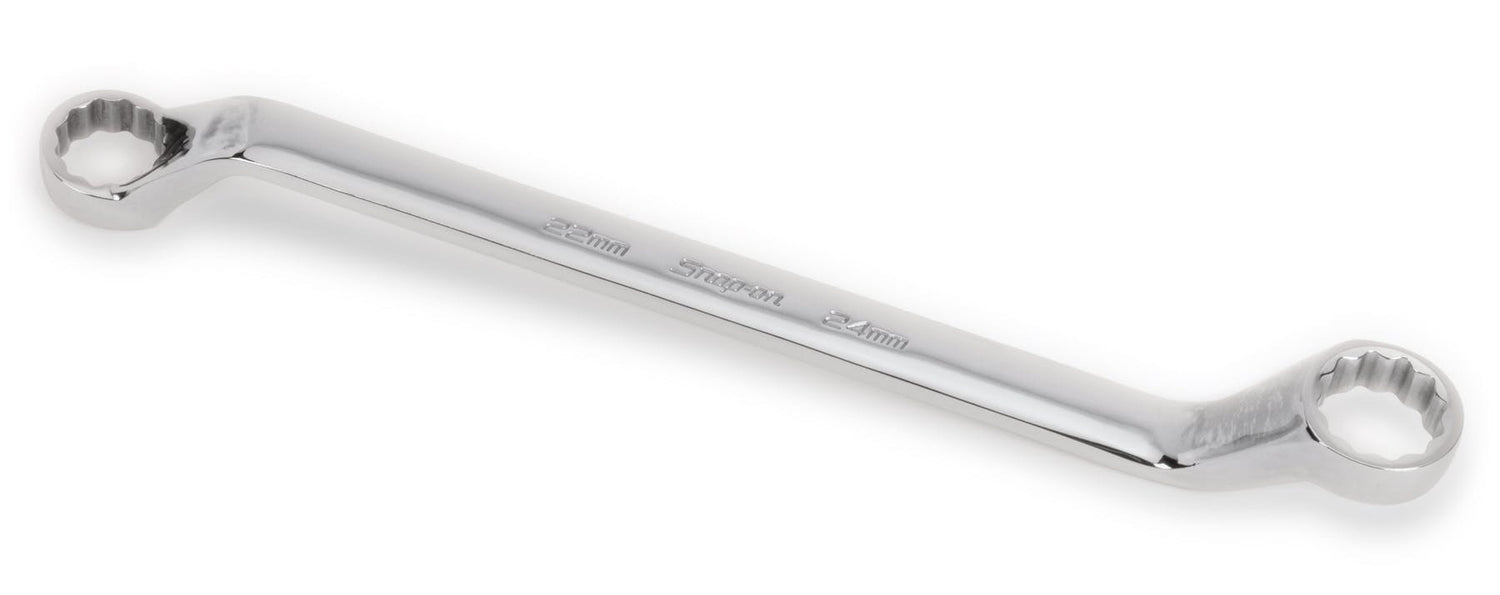

The Snap-on 22-24mm 12-Point Metric Flank Drive 10° Offset Box Wrench (Model XBM2224A) is a professional-grade precision tool designed for demanding industrial applications. This wrench features the innovative Flank Drive® wrenching system on the box-end, which delivers up to 15-20% more turning power while significantly reducing the risk of tool damage and fastener stripping. The 10° offset handle design maximizes knuckle clearance and provides superior access in tight spaces, making it an essential tool for mechanics, technicians, and maintenance professionals working in aviation, aerospace, military, defense, oil and gas, power generation, railroad, and general industrial environments.
Constructed with premium nickel-chrome plating, this wrench features a mirror-like finish that provides excellent corrosion resistance and easy maintenance. The 12-point configuration ensures versatile fastening compatibility, while the metric sizing (22-24mm) accommodates a wide range of standard fasteners. Weighing approximately 450 grams and measuring 342mm in overall length, this wrench is ergonomically sized for optimum comfort and balance during extended use. The robust construction meets ASME B107.100 standards, ensuring reliability and durability in the most challenging work environments.
Snap-on's reputation for quality and precision is reflected in every aspect of this wrench's design and manufacture. Whether you're performing routine maintenance or tackling complex mechanical repairs, the 22-24mm Flank Drive Offset Box Wrench delivers the performance, durability, and reliability that professional technicians demand. The tool's superior turning power reduces operator fatigue and increases productivity, making it a valuable addition to any professional tool collection.
Key Features
- Flank Drive® wrenching system provides 15-20% more turning power with reduced tool and fastener damage
- 10° offset handle design maximizes knuckle clearance and improves access in tight spaces
- 12-point configuration for versatile fastening compatibility across multiple fastener types
- Premium nickel-chrome plating with mirror-like finish for corrosion resistance and easy maintenance
- Ergonomically designed for optimum comfort and balance during extended professional use
- ASME B107.100 compliant for guaranteed quality and reliability standards
- Metric sizing (22-24mm) accommodates wide range of standard industrial fasteners
- Durable construction suitable for aviation, aerospace, military, oil and gas, and heavy industry applications
Technical Specifications
| Specification |
Value |
| Model Number | XBM2224A |
| Size Range | 22-24 mm |
| Point Configuration | 12-Point |
| Offset Angle | 10° |
| Overall Length | 342 mm |
| Outside Diameter (Dimension A) | 31.3-34 mm |
| Head Depth (Dimension C) | 13.7-14.7 mm |
| Finish | Chrome Plated (Nickel-Chrome) |
| Weight | Approximately 450 grams |
| Standard Compliance | ASME B107.100 |
| Wrench Type | Offset Box Wrench |
| Drive System | Flank Drive® |
| Material | Chrome-plated steel |
| Application | Professional mechanical and industrial use |
| Turning Power Advantage | 15-20% more than conventional wrenches |
