Professional-grade 22-24mm metric offset box wrench with 12-Point Flank Drive design and 60° deep offset for superior access to recessed fasteners. Chrome-finished, ASME B107.100 compliant.

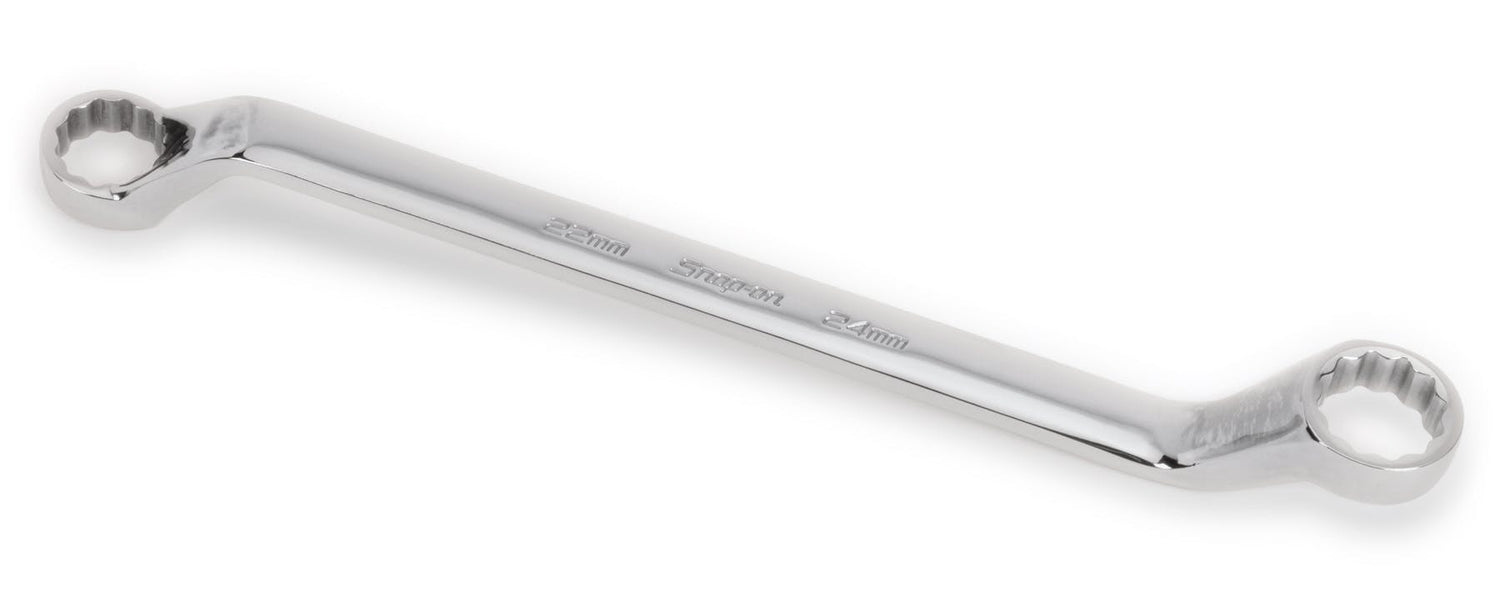

The Snap-on 22-24mm 12-Point Metric Flank Drive 60° Deep Offset Box Wrench (Model XOM2224) is a professional-grade tool designed for precision fastening applications in demanding industrial environments. This metric wrench features a distinctive 60-degree deep offset design that provides exceptional access to recessed and hard-to-reach fasteners, making it an indispensable tool for aviation, aerospace, automotive, and heavy equipment maintenance professionals.
Equipped with Snap-on's renowned 12-Point Flank Drive configuration, this wrench delivers superior strength and turning power compared to traditional designs. The flank drive system minimizes fastener rounding and provides enhanced grip on both metric and standard fasteners. The chrome-finished head resists corrosion and maintains its appearance through years of professional use, while the ergonomic handle ensures comfortable operation during extended work sessions.
With dimensions measuring 329.6mm in length and a head depth of 13.7mm, this wrench is engineered to ASME B107.100 standards, guaranteeing reliability and performance. The 22-24mm size range accommodates a wide variety of metric fasteners commonly found in industrial applications. Whether you're working in aerospace manufacturing, military defense systems, oil and gas operations, or general heavy-duty maintenance, this Snap-on wrench combines precision engineering with professional-grade durability.
Key Features
- 60° Deep Offset Design for exceptional access to recessed and hard-to-reach fasteners
- 12-Point Flank Drive configuration for superior strength and turning power
- Chrome finish resists corrosion and maintains professional appearance
- ASME B107.100 certified for guaranteed quality and reliability standards
- Ergonomic handle design for comfortable extended use in professional applications
Technical Specifications
| Specification |
Value |
| Model Number | XOM2224 |
| Size Range | 22-24 mm |
| Point Configuration | 12-Point |
| Drive Type | Flank Drive |
| Offset Angle | 60° Deep Offset |
| Outside Diameter (Dimension A) | 31.9-34.1 mm |
| Head Depth (Dimension B) | 13.7 mm |
| Overall Length (Dimension C) | 329.6 mm |
| Finish | Chrome |
| Standard Compliance | ASME B107.100 |
| Wrench Type | Metric Box Wrench |
| Application | Professional industrial fastening and maintenance |
