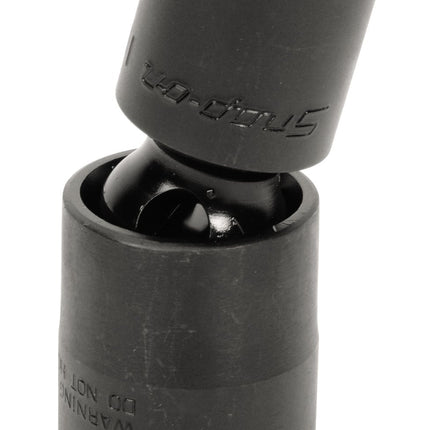

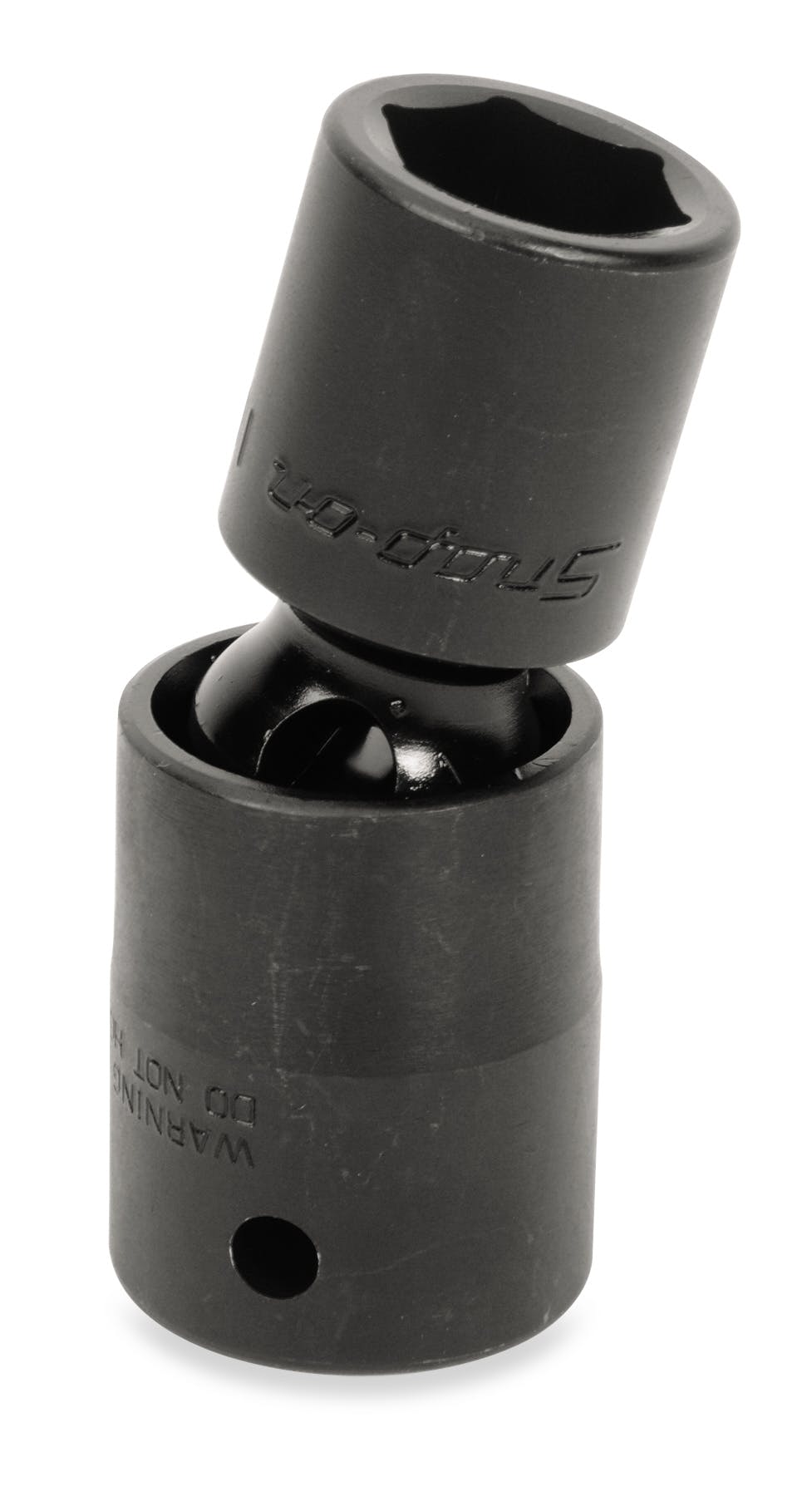

Shop Snap-on 1/2" Drive 6-Point SAE 13/16" Flank Drive® Shallow Swivel Impact Socket | IPL26C In Iraq Best Prices
Professional Snap-on 1/2" impact socket with Flank Drive system delivering 15-25% more turning power. Features laser-welded pivot pin for 30° smooth action and superior grip on SAE fasteners.
The Snap-on 1/2" Drive 6-Point SAE 13/16" Flank Drive Shallow Swivel Impact Socket (Model IPL26C) is a professional-grade tool designed for heavy-duty fastening applications. This impact socket features the revolutionary Flank Drive system that grips fasteners on their flanks and flats, delivering 15-25% more turning power compared to traditional sockets. The socket is manufactured from special alloy steel and heat-treated to ensure optimum strength and durability, making it capable of withstanding today's high-torque impact guns for removing even the most stubborn fasteners.
This shallow swivel socket incorporates a laser-welded pivot pin that reinforces the socket wall and allows 30 degrees of smooth, uninterrupted action for efficient power transfer at any angle. The innovative design eliminates the traditional pin collar through a proprietary pin-welding process, reducing potential failure points and improving reliability. The socket features a 6-point configuration that provides excellent grip on SAE fasteners while minimizing the risk of rounding off fastener heads.
Perfect for aviation, aerospace, military, defense, oil and gas, power generation, railroad, and general industrial applications, this Snap-on impact socket is an essential addition to any professional mechanic's or technician's tool collection. The industrial finish protects against corrosion and wear, ensuring long-lasting performance in demanding work environments.
Key Features
- Flank Drive system grips fasteners on flanks and flats for 15-25% more turning power
- Laser-welded pivot pin reinforces socket wall and allows 30° smooth uninterrupted action
- Proprietary pin-welding process eliminates traditional pin collar for improved reliability
- Manufactured from special alloy steel and heat-treated for optimum strength and durability
- Designed to withstand high-torque impact guns for removing stubborn fasteners
- 6-Point SAE configuration provides excellent grip and minimizes fastener head rounding
- Industrial finish protects against corrosion and wear
- Shallow socket design for efficient power transfer in tight quarters
- Professional-grade tool suitable for aviation, aerospace, military, and industrial applications
Technical Specifications
| Specification |
Value |
| Model Number | IPL26C |
| Drive Size | 1/2 inch |
| Socket Style | 6-Point |
| Socket Size (SAE) | 13/16 inch |
| Socket Type | Shallow Swivel Impact Socket |
| Hex End (inches) | 13/16 |
| Hex O.D. Dimension A (inches) | 1-3/16 |
| Square Drive O.D. Dimension B (inches) | 1-1/16 |
| Bolt Clearance Depth Dimension C (inches) | 1-1/16 |
| Assembly Length Dimension D (inches) | 2-13/16 |
| Hex Depth Dimension E (inches) | 1/2 |
| Material | Special Alloy Steel |
| Heat Treatment | Heat-Treated for Optimum Strength |
| Finish | Industrial |
| Pivot Pin Design | Laser-Welded with 30° Smooth Action |
| Pin Collar | Eliminated with Proprietary Pin-Welding Process |
| Flank Drive System | Yes - 15-25% More Turning Power |
| Impact Rated | Yes - Designed for High-Torque Impact Guns |
| List Price | $90.00 |
