Shop Snap-On 1-1/8" 12-Point SAE Flank Drive® Combination Wrench | OEX36B In Iraq Best Prices
Professional 1-1/8" SAE combination wrench with Flank Drive® system delivering 15-20% more turning power. Precision-forged alloy steel with nickel-chrome finish for durability and corrosion resistance. Ideal for aerospace, automotive, and industrial applications.

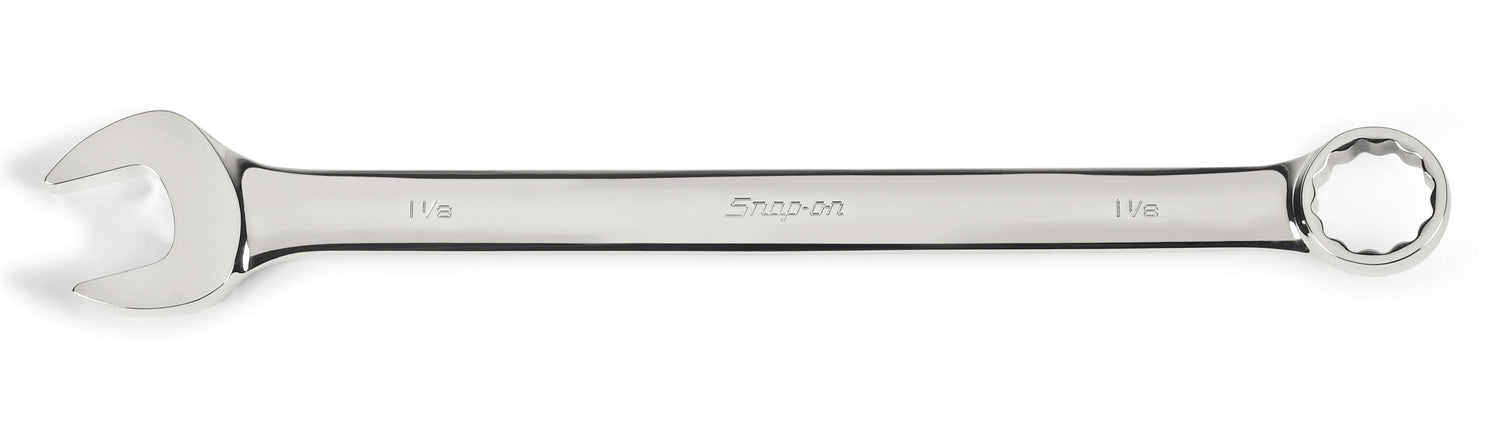

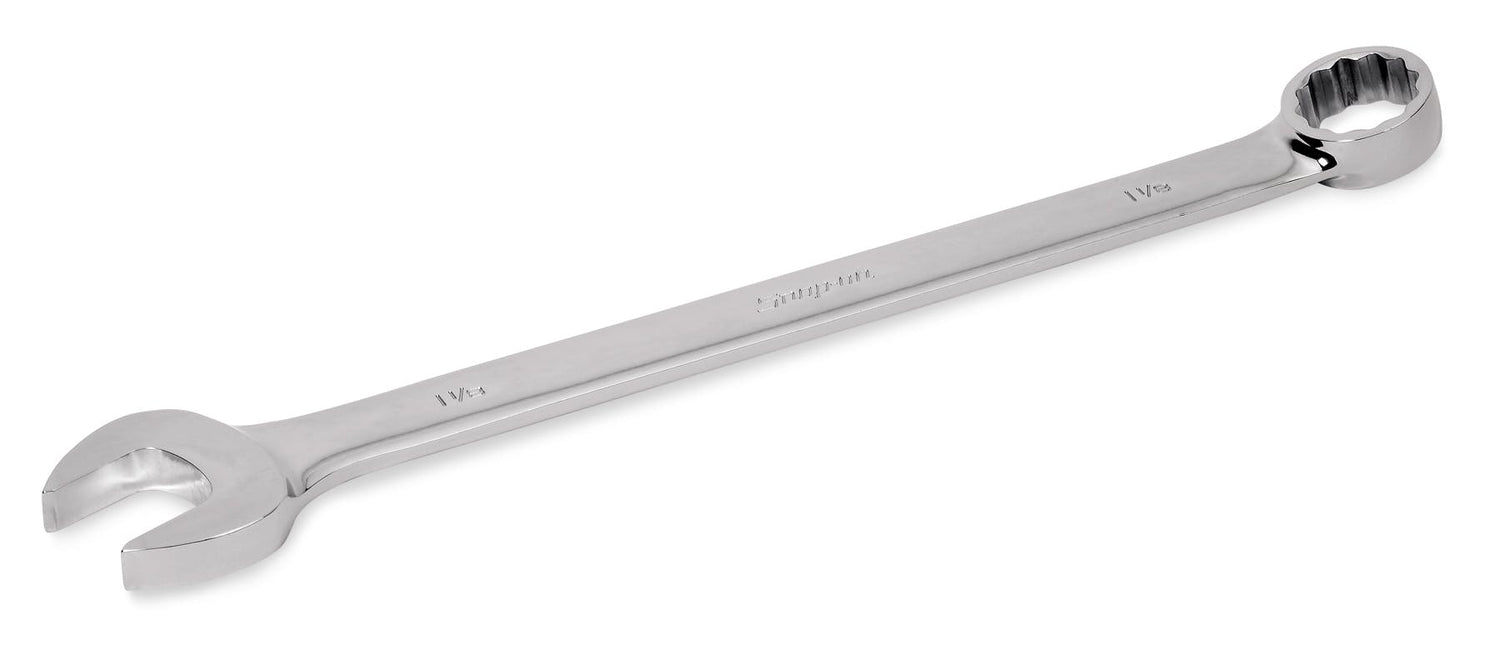

The Snap-on 1-1/8" 12-Point SAE Flank Drive® Combination Wrench (Model OEX36B) is a professional-grade hand tool engineered for demanding industrial applications. This premium wrench features the innovative Flank Drive® system that grips fastener flats with superior precision, delivering 15-20% more turning power compared to conventional wrenches. The combination design provides both open-end and box-end functionality in a single tool, making it an essential addition to any professional mechanic's toolkit.
Manufactured from special alloy steel and precision forged with advanced heat treatment, this wrench combines exceptional durability with optimal weight distribution for comfortable extended use. The 7.5° offset broaching design allows users to flip the box end to achieve advantageous grip angles in restricted clearance areas, while the continuous arc design distributes stress evenly across the entire wrench opening radius for maximum strength and reduced breakage. The longer handle provides increased leverage, making it ideal for accessing hard-to-reach fasteners in complex machinery and equipment.
The wrench features a tough, durable nickel-chrome plating that produces a mirror-like finish, protecting against corrosion and facilitating easy cleaning. Compliant with ASME® B107.100 standards, this 1-1/8" SAE wrench is sized for optimum comfort and balance, making it suitable for aviation, aerospace, military defense, oil and gas, power generation, railroad, and general industrial applications.
Key Features
- Flank Drive® system provides 15-20% more turning power than conventional wrenches
- 7.5° offset broaching for improved grip in restricted clearance areas
- Continuous arc design distributes stress for enhanced strength and durability
- Longer handles provide increased leverage for hard-to-reach fasteners
- Nickel-chrome plating with mirror-like finish resists corrosion and enables easy cleaning
- Precision-forged special alloy steel with advanced heat treatment
- Combination design with open-end and box-end functionality
- 12-point box end for versatile fastener engagement
- Optimally sized for comfort and balance during extended use
- ASME® B107.100 compliant for professional standards
Technical Specifications
| Specification |
Value |
| Model Number | OEX36B |
| Size (SAE) | 1-1/8 inches |
| Style | 12-Point |
| Type | Combination Wrench (Open-End and Box-End) |
| Material | Special Alloy Steel, Precision Forged |
| Finish | Nickel-Chrome Plating |
| Total Length (Dimension E) | 15-7/16 inches |
| Outside Diameter A | 1-5/8 inches |
| Outside Diameter B | 2-5/16 inches |
| Head Depth C | 11/16 inches |
| Head Depth D | 17/32 inches |
| Offset Angle | 7.5° |
| Standard Compliance | ASME® B107.100 |
| Turning Power Advantage | 15-20% more than conventional wrenches |
| Heat Treatment | Advanced Heat Treatment for Superior Strength |
Order Snap-On 1-1/8" 12-Point SAE Flank Drive® Combination Wrench | OEX36B at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
