Shop Snap-on 1,200 RPM Stall Drive Pistol Grip Screwdriver | SSD10P12S In Iraq Best Prices
Professional pneumatic pistol grip screwdriver with 1,200 RPM, 145 in-lbs torque, stall drive mechanism, and three-planet gear system for precision industrial fastening

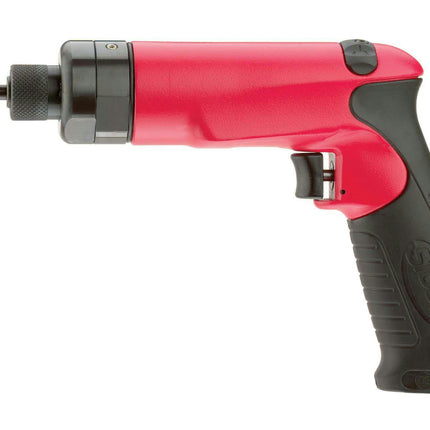

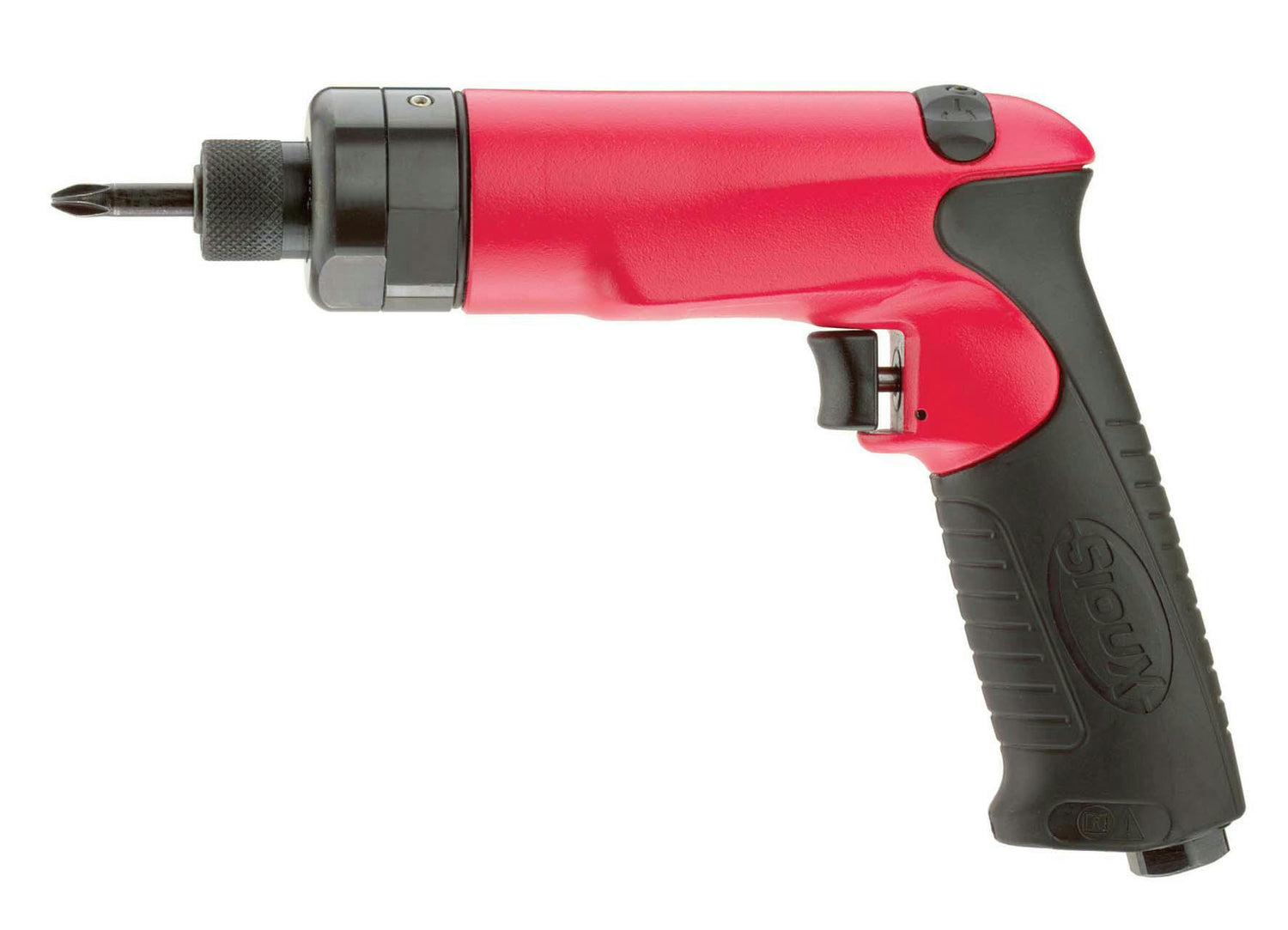

The Sioux 1,200 RPM Stall Drive Pistol Grip Screwdriver (Model SSD10P12S) is a professional-grade pneumatic fastening tool designed for precision screwdriving applications in demanding industrial environments. This robust air-powered screwdriver delivers 145 in-lbs of maximum torque with a stall drive mechanism that automatically stops when the fastener reaches the desired resistance level, ensuring consistent and reliable fastening results. The tool features a sophisticated three-planet gear system that extends tool life and increases load capacity, making it ideal for high-volume production environments and heavy-duty applications.
Designed with operator comfort and efficiency in mind, this screwdriver incorporates a compact pistol grip body with strategically positioned finger rests on the side, allowing for trigger actuation using the stronger middle finger to reduce fatigue during extended use. The trigger start mechanism includes a conveniently located shuttle reverse function for quick directional changes, while the teasing throttle provides excellent speed control and precision during fastening operations. The lightweight design at just 2.6 pounds reduces operator strain without compromising power or durability.
This pneumatic screwdriver operates at a free speed of 1,200 RPM and requires a maximum air consumption of 30 CFM at standard operating pressure. The stall drive technology ensures that final torque is reached when the resistance of the fastener overcomes the torque output of the motor, providing automatic load limiting and preventing over-tightening. With its compact 7.5-inch length and professional construction, this tool is essential equipment for aerospace, automotive, electronics assembly, and general industrial manufacturing applications requiring precision fastening with consistent torque control.
Key Features
- Stall drive mechanism with automatic torque limiting ensures consistent fastening without over-tightening
- Three-planet gear system provides increased tool life and enhanced load capacity for demanding applications
- Trigger start with conveniently located shuttle reverse for quick directional changes
- Ergonomic compact pistol grip with finger rests for comfortable operation and reduced operator fatigue
- Teasing throttle for precise speed control and excellent fastening accuracy
- Lightweight design at 2.6 pounds reduces operator strain during extended use
- 1,200 RPM free speed with 145 in-lbs maximum torque output
- Maximum air consumption of 30 CFM for efficient pneumatic operation
Technical Specifications
| Specification |
Value |
| Model | SSD10P12S |
| Power Rating | 1.0 hp (0.75 kW) |
| Clutch Type | Stall Drive Pistol Grip Screwdriver |
| Free Speed | 1,200 RPM |
| Maximum Torque (Soft Joint) | 145 in-lbs (16.4 Nm) |
| Length | 7.5 inches (191 mm) |
| Weight | 2.6 lbs (1.17 kg) |
| Maximum Air Consumption | 30 CFM (13 l/s) |
| Side to Center Distance | 0.8 inches (20 mm) |
| Grip Type | Pistol Grip with Finger Rests |
| Reverse Function | Shuttle Reverse |
| Gear System | Three-Planet Gear System |
| Torque Control | Automatic Stall Drive with Teasing Throttle |
| Air Pressure | Standard Industrial Pneumatic Pressure |
| Manufacturer | Sioux |
Order Snap-on 1,200 RPM Stall Drive Pistol Grip Screwdriver | SSD10P12S at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
