Range	Domain
Type of product or equipment	miniature circuit breaker

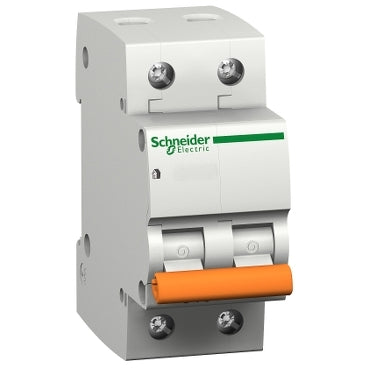

Name of the device	Domain MCB
Device function	Distribution
Description of the poles	2P
number of poles protected	2
Position of the neutral pole	Left
In rated operational current	32A
Network type	THAT
Trigger Type	Thermal-magnetic
trigger curve	VS
breaking capacity	Icn 3000A
Network frequency	50/60Hz
[Ue] rated operational voltage	230V AC 50/60Hz
magnetic trip limit	5…10 x In
[Ics] rated service short-circuit breaking capacity	3000 kA 100 % Icn conforming to EN/IEC 60898-1
Fully apparent cut	Yes
Order type	By crankpin
Voltage indication	Trigger error
Installation mode	snap-on
mounting bracket	DIN rail
compatibility of distributors, combs, busbars	Yes
9mm pitch	4
Height	81mm
Lenght	36mm
Depth	78.5mm
Product weight	0.19kg
Color	White
Mechanical Stamina	20000 cycles
connection mode	Tunnel type terminals (top or bottom) – 1…35 mm² – rigid Tunnel type terminals (top or bottom) – 1…25 mm² – flexible
Wire stripping length	14 mm for top or bottom connection
Tightening torque	3.5 Nm top or bottom
Differential protection	Without

SKU: 12996
