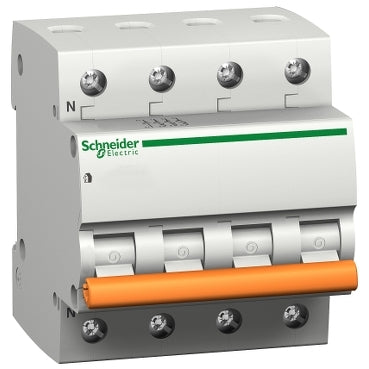

Miniature circuit breaker | C12 Domae - 4P 63A /C

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

SKU: 12592

50,000 IQD

Multiple shipping options local and international
Original international brands
100% secure payment methods
24/7 support

Range	Domain
Type of product or equipment	Miniature circuit breaker
Name of the device	Domain MCB
Application	Distribution
Description of the poles	3P+N
Number of poles protected	3
Position of the neutral pole	Left
In rated operational current	63A
Network type	THAT
Trigger type	Thermal-magnetic
Trigger curve	VS
breaking capacity	Icn 3000 A
Network frequency	50/60Hz
[Ue] rated operational voltage	400VAC 50/60Hz
Magnetic Trip Limit	5,,,10 x In
[Ics] rated service short-circuit breaking capacity	3000 kA 100 % Icn conforming to EN/IEC 60898-1
Fully apparent cut	Yes
Order type	By crankpin
Voltage indication	Trigger error
Installation method	Snap-on
mounting bracket	DIN rail
Compatibility of distributors, combs, busbars	Yes
9mm pitch	8
Height	81mm
Lenght	72mm
Depth	78.5mm
Product weight	0.38kg
Color	White
Mechanical Stamina	20000 cycles

Range	Domain
Type of product or equipment	Miniature circuit breaker
Name of the device	Domain MCB
Application	Distribution
Description of the poles	3P+N
Number of poles protected	3
Position of the neutral pole	Left
In rated operational current	63A
Network type	THAT
Trigger type	Thermal-magnetic
Trigger curve	VS
breaking capacity	Icn 3000 A
Network frequency	50/60Hz
[Ue] rated operational voltage	400VAC 50/60Hz
Magnetic Trip Limit	5,,,10 x In
[Ics] rated service short-circuit breaking capacity	3000 kA 100 % Icn conforming to EN/IEC 60898-1
Fully apparent cut	Yes
Order type	By crankpin
Voltage indication	Trigger error
Installation method	Snap-on
mounting bracket	DIN rail
Compatibility of distributors, combs, busbars	Yes
9mm pitch	8
Height	81mm
Lenght	72mm
Depth	78.5mm
Product weight	0.38kg
Color	White
Mechanical Stamina	20000 cycles
