Description

Reliable RCCB with 63A current, 100mA sensitivity, and advanced safety features.
The Schneider Electric Residual Current Circuit Breaker (RCCB) Acti9 iID offers superior protection against electrical shock and fire hazards. This device is designed for residential and commercial use, providing a reliable solution for ensuring safety in electrical systems. With a rated current of 63A and a sensitivity of 100mA, it efficiently disconnects electrical circuits in case of earth faults. The device features a unique Visitrip indicator to quickly identify the faulty circuit and a VisiSafe window to ensure safe maintenance operations. Compliant with EN/IEC 61008-1 standards, it boasts a robust design with a high electrical endurance of up to 15,000 cycles and mechanical endurance up to 20,000 cycles. Ideal for integration in DIN rail systems, it has a compact design measuring 36mm wide and weighing 0.21kg.

Key Features

  • 63A rated current for efficient protection
  • 100mA sensitivity for enhanced safety
  • Visitrip indicator for quick fault identification
  • Compliant with EN/IEC 61008-1 standards
  • Compact DIN rail mount design

Technical Specifications

Specification Value
MaterialPlastic, metal components
Dimensions36mm x 91mm x 73mm
Weight0.21 kg
Power220-240V AC, 50/60 Hz
Warranty18 months

Read more

Product form

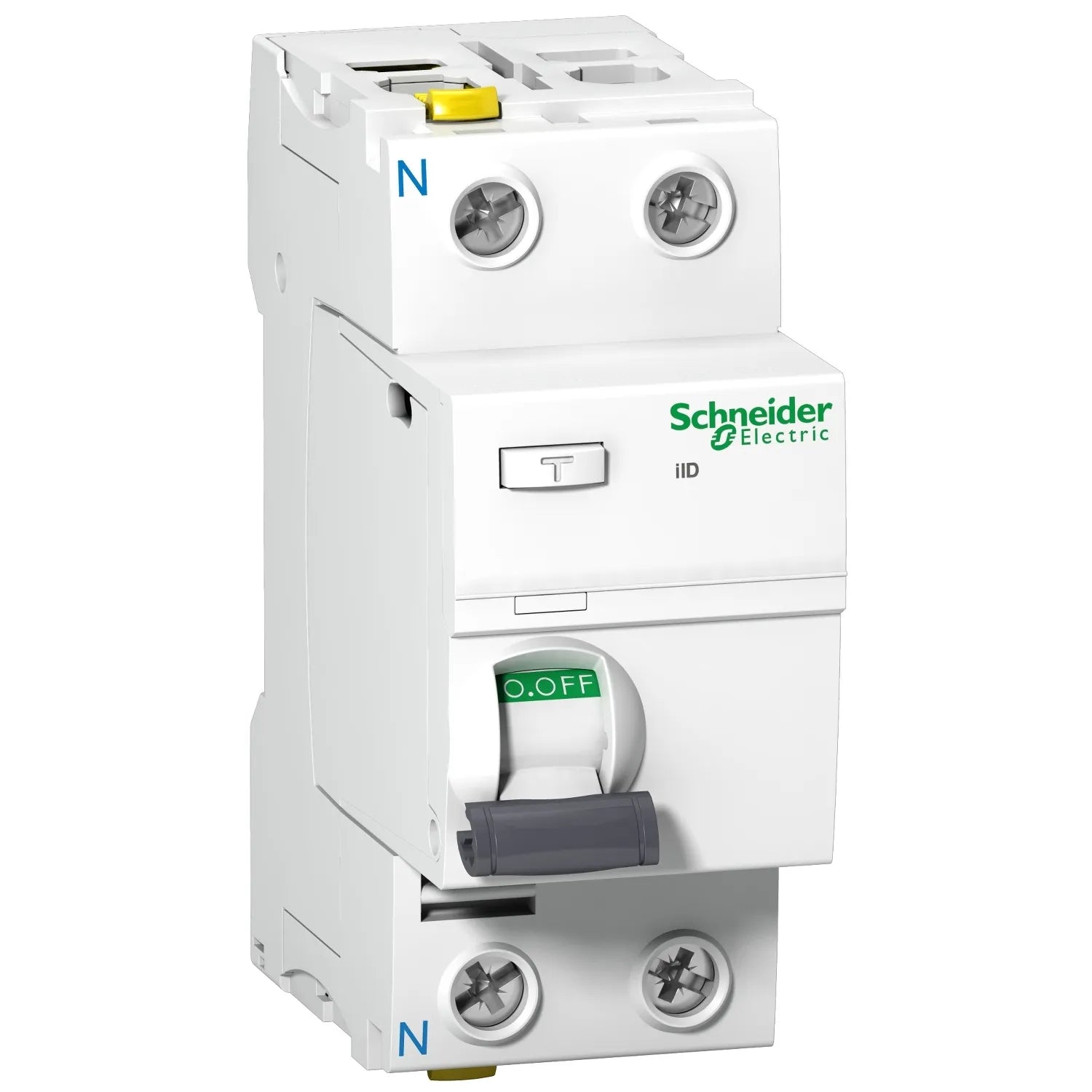

Schneider Residual Current Circuit Breaker 63A

Schneider Electric

SKU: A9Z32263

34,500 IQD
