Reliable RCCB with 100A current, 100mA sensitivity, AC type protection. Ensures electrical safety and fire prevention.

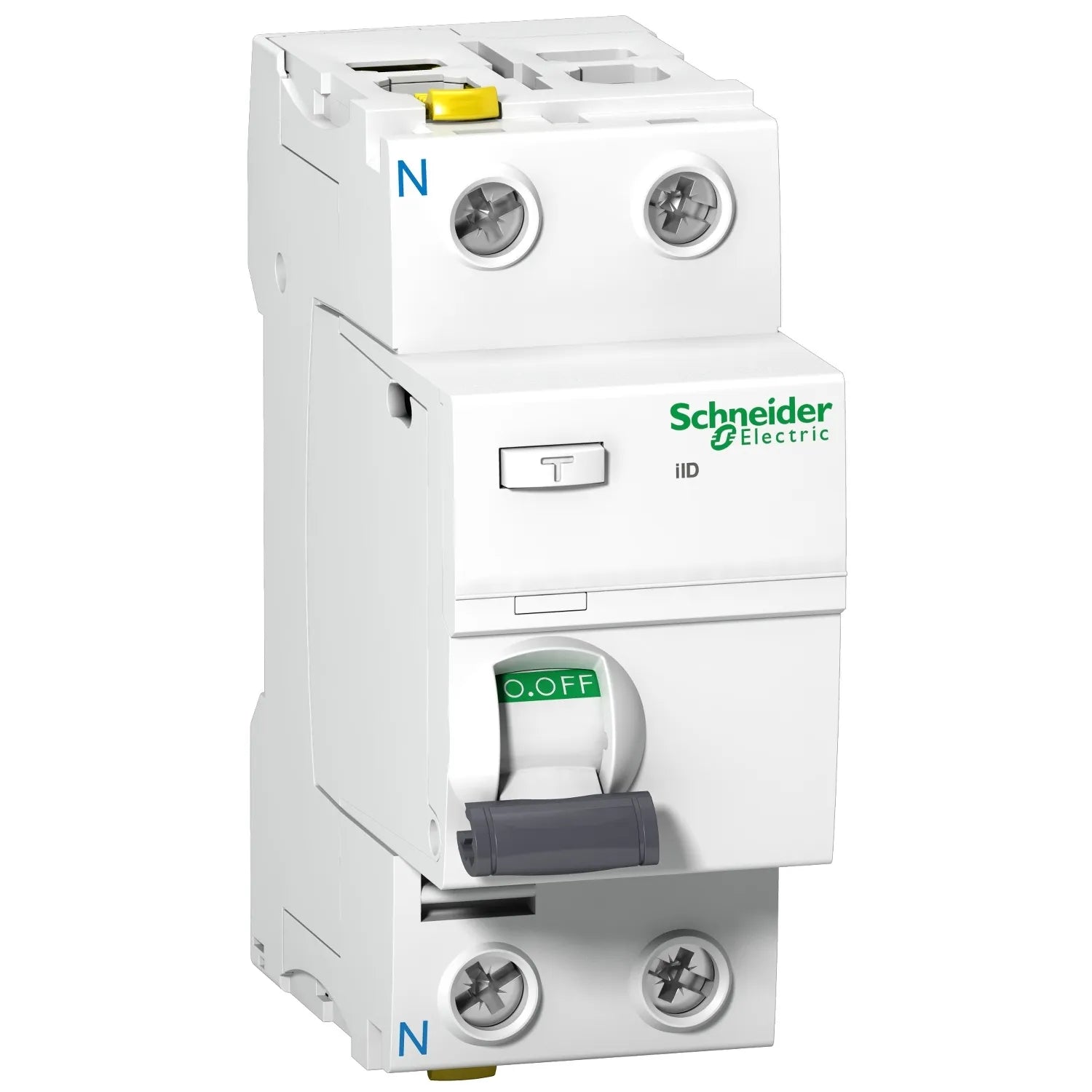

The Schneider Electric Acti9 iID Residual Current Circuit Breaker (RCCB) is a state-of-the-art device designed to ensure safety and reliability in electrical circuits. It is a 2P circuit breaker with a 100A rated current and 100mA earth leakage sensitivity, providing AC type protection class. This device is engineered to protect against electrical shock by indirect contact and fire hazards, effectively disconnecting electrical circuits in case of earth faults. The RCCB features a VisiTrip window that indicates fault-tripping with a red mechanical indicator on the front, and a VisiSafe window with a green strip on the toggle to confirm full opening of the poles for safe downstream maintenance. Compliant with EN/IEC 61008-1 standards, this circuit breaker exhibits a high electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. It operates on a voltage range of 220VAC to 240VAC, with a rated insulation voltage of 500VAC and rated impulse withstand voltage of 6kV. The frequency range is between 50Hz and 60Hz, and the device is designed for DIN rail mounting. Its compact dimensions are 36mm in width, 91mm in height, and 73mm in depth, with a weight of 0.21kg. The device also boasts a high degree of protection, with IP20 and IP40 ratings when enclosed, and an operating temperature range from -5¡C to 60¡C._4:8 source_
Key Features
- 100A Rated Current
- 100mA Earth Leakage Sensitivity
- AC Type Protection
- VisiTrip and VisiSafe Indicators
- Compliant with EN/IEC 61008-1
Technical Specifications
| Specification |
Value |
| Material | Plastic housing |
| Dimensions | 36mm x 91mm x 73mm |
| Weight | 0.21 kg |
| Power | 220-240V AC, 50/60Hz |
| Warranty | 18 months |
