Description

High-performance RCBO with 32A rating, ensures safety with 30mA sensitivity.

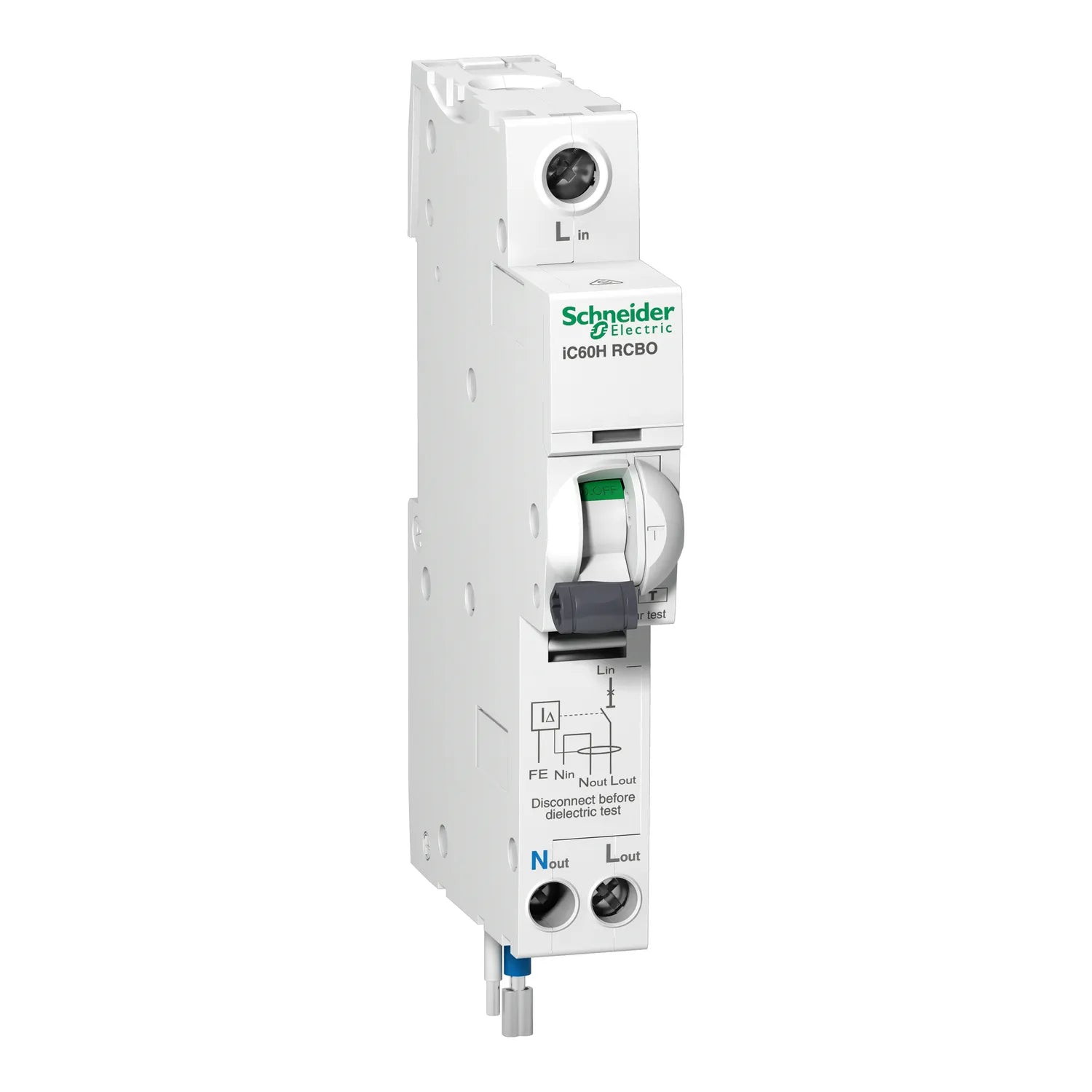

The Schneider Electric iC60H Earth Leakage Circuit Breaker, model A9D11832, is a high-performance device designed for residential and commercial electrical systems. This RCBO (Residual Current Breaker with Overcurrent protection) offers a robust solution for protection against electrical faults. It features a single pole plus neutral (1P+N) configuration with a C tripping curve, and is capable of handling a rated current of 32 A at a sensitivity of 30 mA, ensuring rapid response to earth leakage conditions. The breaker operates at a rated operational voltage of 230/240 V AC and is suitable for use in 50/60 Hz network frequencies. Its compact design is DIN rail mountable, making it easy to integrate into existing electrical panels. The iC60H breaker is equipped with a Visitrip indicator that reduces intervention time by clearly displaying which circuit is faulty, and a Visisafe green strip to guarantee the physical opening of the contacts for maintenance safety. This device complies with international standards such as BS EN 61009-1 and IEC 61009-2-2, ensuring reliability and safety in diverse environments.

Key Features

  • Residual current and overcurrent protection
  • Single pole plus neutral (1P+N) configuration
  • Rated current 32 A with C tripping curve
  • Visitrip indicator for easy fault identification
  • Complies with IEC 61009 standards

Technical Specifications

Specification Value
MaterialPlastic and metal components
Dimensions18mm x 110mm x 77.5mm
Weight205g
Power230/240 V AC, 50/60 Hz
Warranty2 years manufacturer warranty

Read more

Product form

Schneider iC60H Earth Leakage Breaker

Schneider Electric

SKU: A9D11832

35,000 IQD
