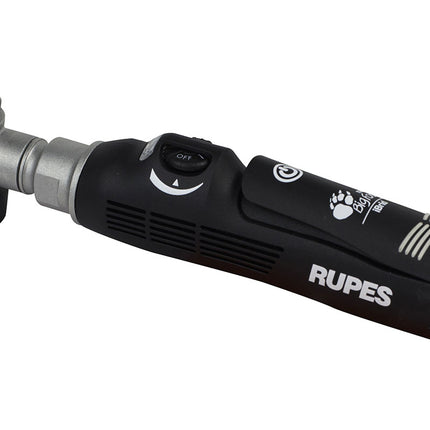

The RUPES BigFoot iBrid Nano HR81M LUX Kit is a highly versatile compact polishing, sanding and cleaning system designed for tight spaces, intricate details and areas that are difficult to reach with conventional full-size machines. The Short Neck configuration combines compact dimensions with precise control for professional automotive detailing and refinishing applications.
One of the key advantages of the HR81M is its ability to operate with three different functional movements: rotary, 3 mm random orbital and 12 mm random orbital. These interchangeable movements allow the same machine to handle aggressive spot correction, fine polishing, sanding and detailed cleaning tasks.
The iBrid system also allows the tool to operate either from its rechargeable battery packs or through the included AC DC power adapter. RUPES specifies an operating voltage of 10.8 to 12 V, a speed range of 2,000 to 5,000 RPM, approximately 30 minutes battery runtime and approximately 20 minutes charging time. Electronic speed control, overcurrent protection, soft start and an LED indicator are also standard features.

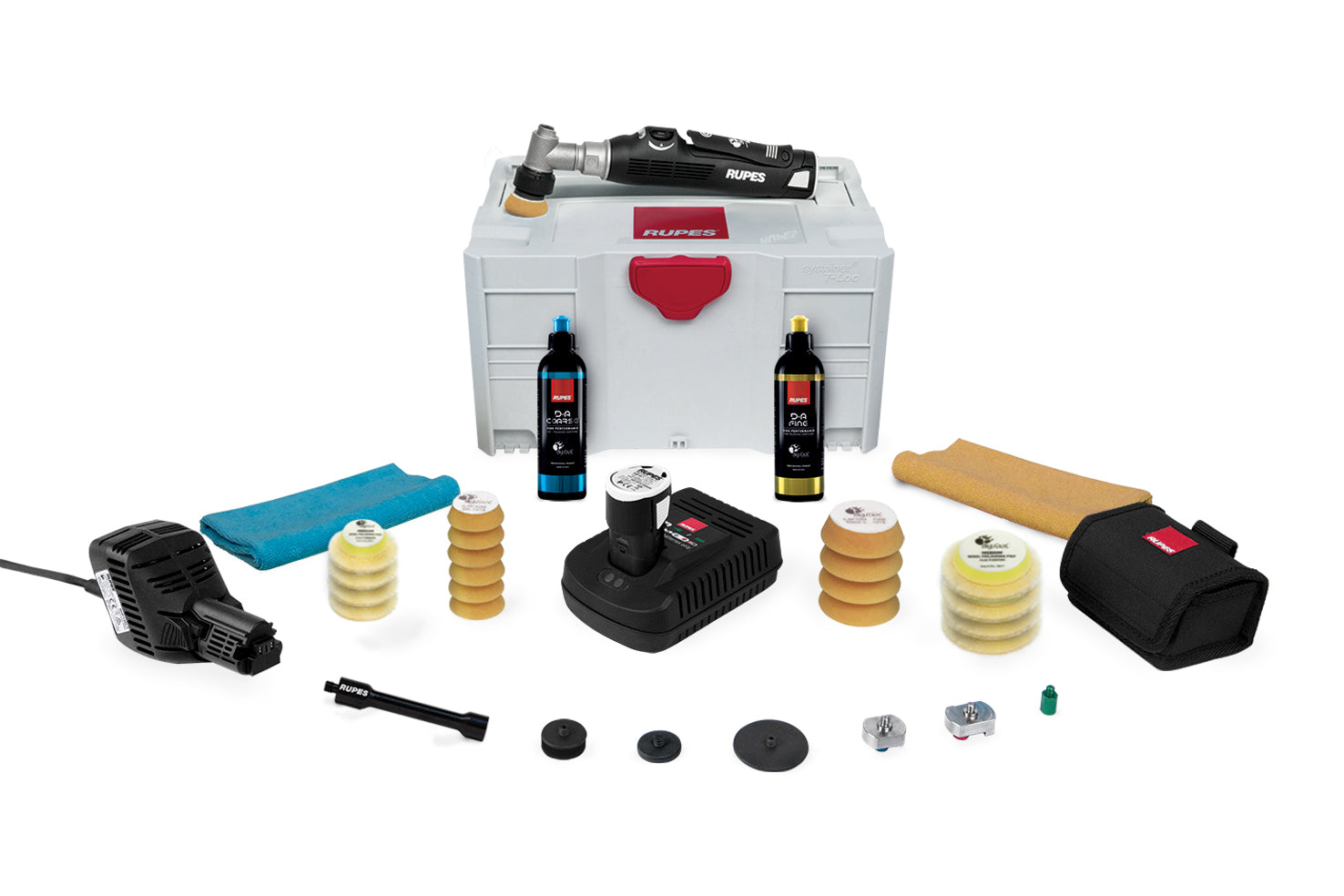

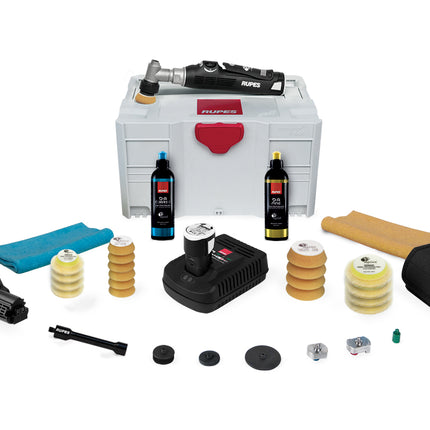

The LUX Kit is the most complete HR81M configuration. It combines the Short Neck machine with power accessories, multiple functional units, 30 mm and 50 mm backing pads, sanding accessories, wool and foam polishing pads, D-A polishing compounds, microfiber cloths and a RUPES Systainer case.
Features
- Professional BigFoot iBrid Nano Short Neck system
- Compact design for tight and intricate areas
- Rotary functional movement
- 3 mm random orbital movement
- 12 mm random orbital movement
- Suitable for polishing sanding and cleaning
- Battery and corded operation capability
- 10.8 to 12 V power system
- Speed range from 2,000 to 5,000 RPM
- Approximately 30 minutes battery runtime
- Approximately 20 minutes charging time
- Electronic speed control
- Overcurrent protection
- Soft start
- LED battery indicator
- 30 mm and 50 mm polishing backing pads included
- 30 mm sanding backing pad included
- Multiple wool and foam polishing pads
- D-A COARSE and D-A FINE compounds included
- Supplied in RUPES Systainer case
Kit Contents
| Item |
Quantity |
RUPES Code |
| iBrid Nano Short Neck Polisher |
1 |
9.HR81M |
| Accessories Case with Container |
1 |
9.Z987/BF |
| AC DC Adapter |
1 |
9HP120LT |
| Rechargeable Power Pack |
2 |
9HB120LT |
| Charger |
1 |
9HC120LT |
| Extension Shaft |
1 |
291.390/C |
| Wool Polishing Pad 30 to 40 mm |
4 |
9.BW40M/4 |
| Fine Foam Polishing Pad 30 to 40 mm |
6 |
9.DA40M/6 |
| Wool Polishing Pad 50 to 70 mm |
4 |
9.BW70M/4 |
| Fine Foam Polishing Pad 50 to 70 mm |
4 |
9.DA70M/4 |
| D-A COARSE Polishing Compound 250 ml |
1 |
9.DACOARSE |
| D-A FINE Polishing Compound 250 ml |
1 |
9.DAFINE |
| Rotary Functional Unit |
1 |
562.390 |
| 3 mm Orbit Functional Unit |
1 |
581.390/C |
| 12 mm Orbit Functional Unit |
1 |
58.390/C |
| Polishing Backing Pad 30 mm |
1 |
995.001 |
| Polishing Backing Pad 50 mm |
1 |
996.001 |
| Sanding Backing Pad 30 mm |
1 |
997.001 |
| P2000 Adhesive Abrasive Discs 35 mm |
10 |
9.45520 |
| P3000 Adhesive Abrasive Discs 35 mm |
10 |
9.45530 |
| Blue Microfiber Cloth |
1 |
9.BF9050 |
| Yellow Microfiber Cloth |
1 |
9.BF9060 |
| RUPES Systainer T LOC |
1 |
9.CASEIII |
RUPES currently lists these components for the HR81M/LUX configuration.
Specifications
| Specification |
Details |
| Brand |
RUPES |
| Product Series |
BigFoot iBrid Nano |
| Model |
HR81M |
| Neck Version |
Short Neck |
| Kit Version |
LUX |
| SKU |
HR81M#230/H5/GB/LUX |
| Product Type |
Compact polishing sanding and cleaning kit |
| Voltage |
10.8 to 12 V DC |
| Speed |
2,000 to 5,000 RPM |
| Functional Movements |
Rotary 3 mm random orbital 12 mm random orbital |
| Battery Runtime |
Approx. 30 minutes |
| Charging Time |
Approx. 20 minutes |
| Electronic Speed Control |
Yes |
| Overcurrent Protection |
Yes |
| Soft Start |
Yes |
| LED Indicator |
Yes |
| Tool Weight |
470 g |
| Weight Measurement |
Without functional unit battery and power supply |
| Polishing Pad Sizes |
30 mm and 50 mm |
| Sanding Backing Pad |
30 mm |
| Main Application |
Precision polishing sanding and cleaning |
