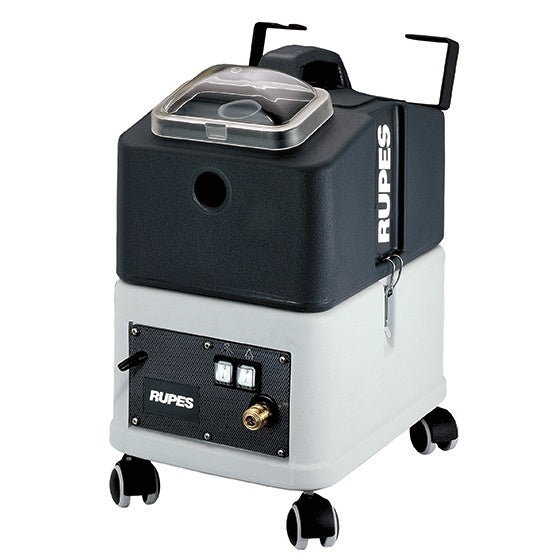

The RUPES CK31F is a professional injection-extraction cleaning machine designed specifically for foaming detergents and textile cleaning applications. It is ideal for cleaning vehicle interiors, fitted carpets, matting, fabric upholstery and padded materials where deep cleaning and controlled moisture are important.
Unlike conventional water-heavy extraction systems, the CK31F uses foam technology to apply a lower quantity of water to the treated surface. This helps reduce drying time after cleaning while still allowing detergent to penetrate fabric and lift dirt effectively.
The machine is equipped with two separate 14 litre tanks, one for water and detergent and another for recovered liquid. The recovery tank has a transparent lid for easy monitoring and can be detached to simplify emptying and maintenance. Separate front-panel controls operate the injection and extraction functions independently.
For even foam distribution, the CK31F includes an injection plunger with an integrated brush and a 5 metre flexible tube. The machine uses a 1500 W motor, delivers 3000 mmH2O vacuum, operates at 70 dB(A), and weighs 20 kg. The official manual also specifies a 220 to 240 V 50/60 Hz power supply, 3000 L/min maximum airflow and a vibration bypass pump rated at 70 W.
Features
- Professional foam injection and extraction cleaner
- Designed for fabric and padded interiors
- Suitable for carpets and fitted carpets
- Ideal for automotive interior cleaning
- Foam technology for reduced drying time
- 1500 W motor
- Two separate 14 litre tanks
- Detachable liquid recovery reservoir
- Transparent recovery tank lid
- Separate injection and extraction controls
- Integrated cleaning brush
- 5 metre flexible hose
- 3000 mmH2O vacuum
- Maximum airflow of 3000 L/min
- Vibration bypass pump
- Compact wheeled design for workshop use
Specifications
| Specification |
Details |
| Brand |
RUPES |
| Model |
CK31F |
| Version |
STD |
| SKU |
CK31F#230/H5/DE/STD |
| Product Type |
Foam injection extraction cleaning machine |
| Voltage |
220 to 240 V |
| Frequency |
50/60 Hz |
| Power |
1500 W |
| Current |
7 A |
| Detergent Tank Capacity |
14 L |
| Recovery Tank Capacity |
14 L |
| Vacuum |
3000 mmH2O |
| Maximum Airflow |
3000 L/min |
| Noise Level |
70 dB(A) |
| Weight |
20 kg |
| Dimensions |
30 x 42 x 66.5 cm |
| Pump Type |
Vibration bypass pump |
| Pump Power |
70 W |
| Maximum Pump Pressure |
4 bar |
| Maximum Pump Flow |
1.5 L/min |
| Cleaning Width |
100 mm |
| Foam Technology |
Yes |
| Integrated Compressor |
No |
| Hose Length |
5 m |
| Main Application |
Upholstery carpet and vehicle interior cleaning |
