Description

The PROJAHN HSS-G DIN 345 32 mm drill bit is engineered for high precision and durability. Made from high-speed steel (HSS-G), it offers excellent resistance to breaking forces and optimal chip removal. Suitable for drilling through tough materials like steel (up to 900 N/mm²), cast iron, and non-ferrous metals such as aluminum and bronze. The tapered finish and normal spiral angle enhance drilling efficiency. This drill bit is crafted according to DIN 345 standards, ensuring consistent quality and performance.

Specifications & Features:

  • Material: High-speed steel (HSS-G)
  • Standard: DIN 345
  • Diameter: 32 mm
  • Total Length: 334 mm
  • Shank Type: Morse taper
  • Point Angle: 118°
  • Tolerance: h8
  • Core Thickness: Normal
  • Use Case: Steel, cast iron, aluminum, bronze, graphite

Read more

Product form

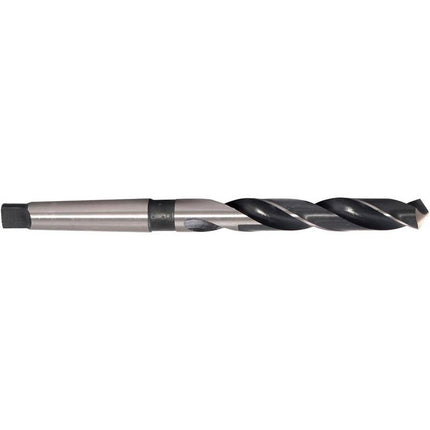

PROJAHN ‎‎‎Drill bit HSS-G DIN 345 32 mm MT4 | 220320

Projahn

High-performance PROJAHN HSS-G drill bit, 32 mm, ideal for drilling steel, cast iron, and non-ferrous metals with optimal chip removal and break resistance. Read more

SKU: 220320

104,000 IQD

  • Shipped today? Order within: Jan 10, 2025 17:00:00 +0300
    • Shipped today? Order within: Jan 10, 2025 17:00:00 +0300

    High-performance PROJAHN HSS-G drill bit, 32 mm, ideal for drilling steel, cast iron, and non-ferrous metals with optimal chip removal and break resistance.

    Description

    The PROJAHN HSS-G DIN 345 32 mm drill bit is engineered for high precision and durability. Made from high-speed steel (HSS-G), it offers excellent resistance to breaking forces and optimal chip removal. Suitable for drilling through tough materials like steel (up to 900 N/mm²), cast iron, and non-ferrous metals such as aluminum and bronze. The tapered finish and normal spiral angle enhance drilling efficiency. This drill bit is crafted according to DIN 345 standards, ensuring consistent quality and performance.

    Specifications & Features:

    • Material: High-speed steel (HSS-G)
    • Standard: DIN 345
    • Diameter: 32 mm
    • Total Length: 334 mm
    • Shank Type: Morse taper
    • Point Angle: 118°
    • Tolerance: h8
    • Core Thickness: Normal
    • Use Case: Steel, cast iron, aluminum, bronze, graphite
