Shop Snap-on 1" Square Drive Pneumatic Torque Wrench (295–1,475 ft-lb) | PTM1475 In Iraq Best Prices
Professional pneumatic torque wrench with 295-1,475 ft-lb capacity, twin motor technology, low vibration operation, and ±5% accuracy for precision industrial fastening

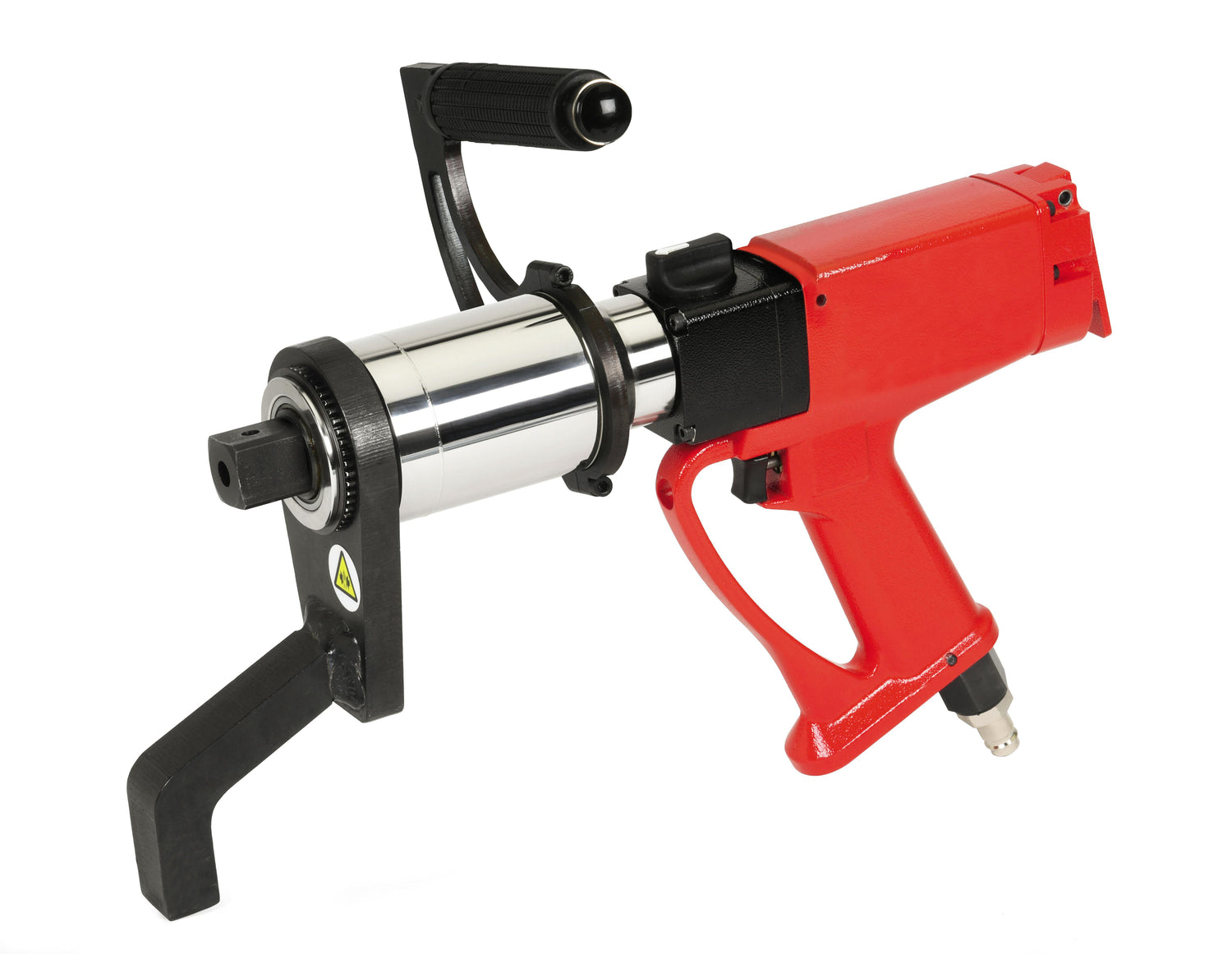

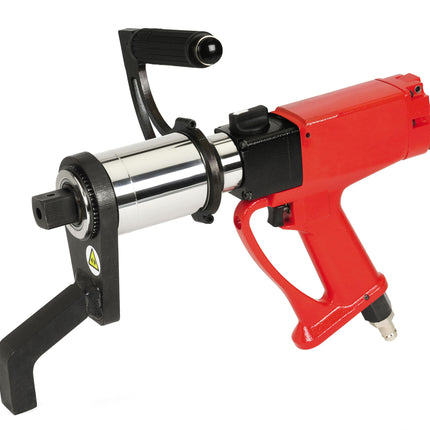

The Snap-on PTM1475 is a professional-grade 1" square drive pneumatic torque wrench designed for heavy-duty industrial applications. With a torque range of 295-1,475 ft-lb (400-2,000 Nm), this tool delivers precise and consistent fastening performance across a wide variety of industries including aviation, aerospace, military, defense, oil and gas, power generation, and railroad maintenance. The innovative twin motor technology enables the wrench to achieve both lightweight construction and exceptional speed while maintaining compact dimensions for superior access to treaded fasteners in confined spaces.
This advanced pneumatic torque wrench features non-impacting operation with exceptionally low vibration levels, operating at noise levels below 85 dB under load. The independent gearbox rotation ensures reaction forces are never transferred back to the operator, providing superior safety and comfort during extended use. The secondary trigger mechanism keeps hands safely away from pinch points during operation, while the ±5% accuracy rating guarantees reliable and repeatable torque application every time. A wide variety of reaction fixtures are available, making this tool extremely versatile for different fastening applications.
The PTM1475 comes fully equipped with a protective carrying case, cranked reaction fixture, tool hanger, secondary handle, and male quick connect coupling for easy pneumatic integration. All tools are supplied with a certificate of calibration and torque versus pressure chart for documentation and compliance purposes. As part of the PTM series, this wrench is part of a comprehensive range offering torque outputs from 74-4,500 ft-lb, allowing customers to select the perfect tool for their specific application requirements.
Key Features
- Twin motor technology for lightweight construction and fast operation
- Compact design with excellent access to confined fastening spaces
- Non-impacting operation with vibration levels below 85 dB under load
- Independent gearbox rotation prevents reaction forces transfer to operator
- Secondary trigger mechanism keeps hands away from pinch points
- ±5% accuracy for reliable and repeatable torque application

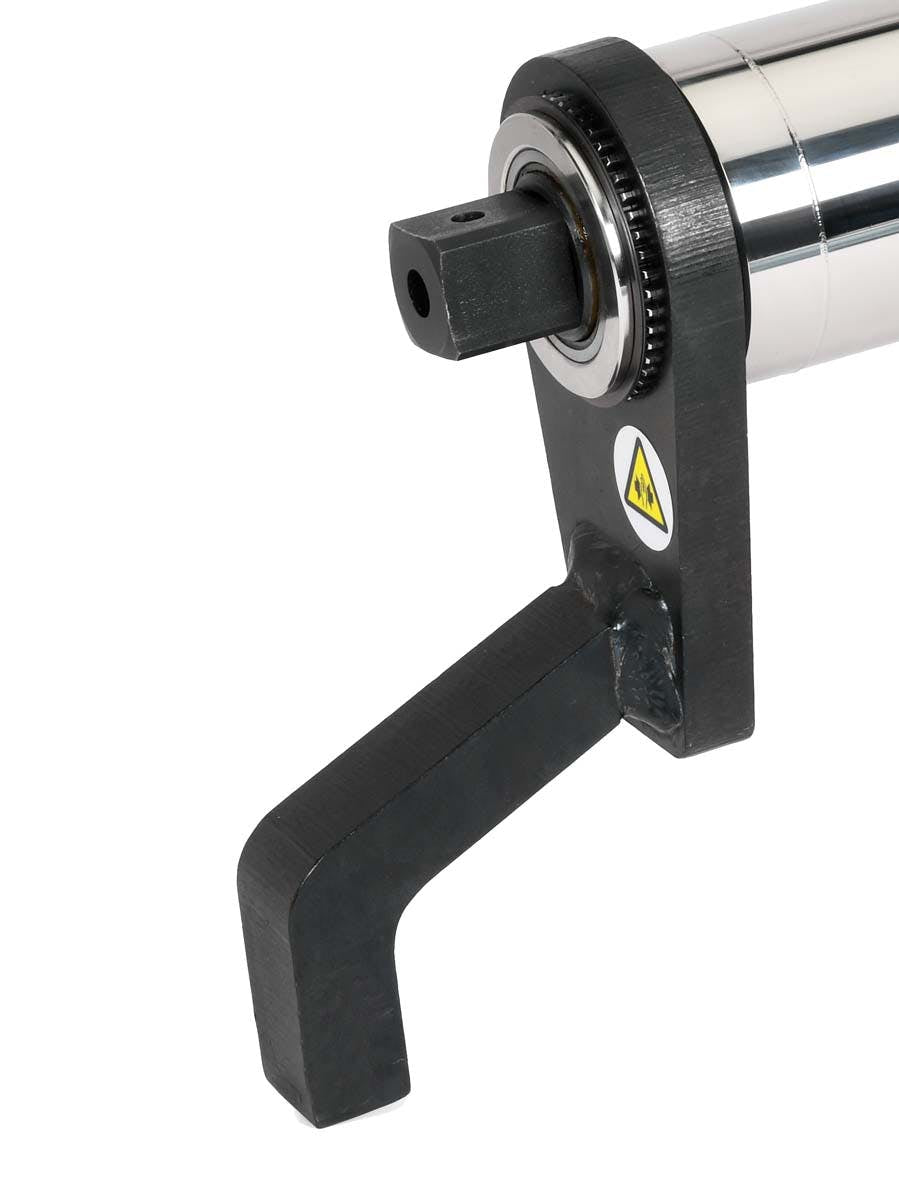

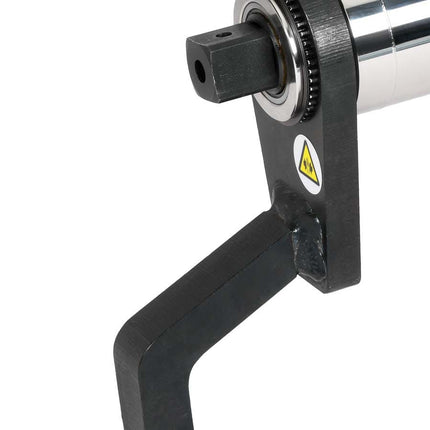

- Wide variety of available reaction fixtures for versatile applications
- Includes protective case, reaction fixture, tool hanger, and quick connect
- Certificate of calibration and torque vs. pressure chart included
- Suitable for aviation, aerospace, military, oil and gas industries
Technical Specifications
| Specification |
Value |
| Model Number | PTM1475 |
| Torque Range | 295-1,475 ft-lb |
| Torque Range Metric | 400-2,000 Nm |
| Square Drive Size | 1 inch |
| Motor Type | Twin Motor Technology |
| Operation Type | Non-impacting |
| Accuracy | ±5% |
| Noise Level | Below 85 dB under load |
| Vibration | Low vibration |
| Gearbox | Independent rotation from handle |
| Power Source | Pneumatic (Air-powered) |
| Trigger Type | Secondary trigger mechanism |
| Quick Connect | Male quick connect coupling included |
| Included Accessories | Protective case, cranked reaction fixture, tool hanger, secondary handle |
| Calibration | Certificate of calibration and torque vs. pressure chart included |
Order Snap-on 1" Square Drive Pneumatic Torque Wrench (295–1,475 ft-lb) | PTM1475 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
