Professional weatherproof 2 gang socket outlet with IP66 protection, 13A 250V rating, stainless steel terminals, and lockable design for secure outdoor and indoor applications

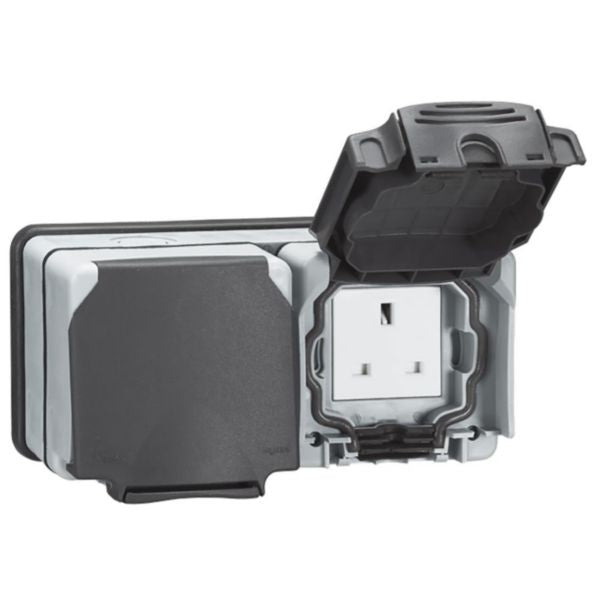

The Plexo Socket Outlet 66 is a premium weatherproof 2 gang unswitched socket designed for surface mounting with exceptional durability and protection. This professional-grade electrical outlet features IP66 protection rating, ensuring complete protection against dust and water jets from any direction, making it ideal for both indoor and outdoor applications in harsh environments. With an IK08 impact strength rating, it withstands significant mechanical stress and potential damage from impacts.
Manufactured by Legrand, this socket outlet combines robust construction with practical functionality. It accommodates a nominal current of 13A at 250V AC with 50-60Hz frequency compatibility. The unit features stainless steel captive terminal screws supplied in backed-off position for secure and reliable electrical connections. The hinged lid design with enhanced contact protection ensures safety during installation and maintenance, while the lockable feature prevents unauthorized access. The socket is supplied with ISO 20 membrane glands and caps for rear cabling, with provisions for both top and down cabling using plastic cable glands.
Constructed from halogen-free thermoplastic material in Grey RAL 7016, this outlet meets modern safety and environmental standards. The surface-mounted design with screw fastening provides easy installation, while the loop-through function allows for convenient daisy-chaining of multiple outlets. With a built-in depth of 30mm and dimensions of 194mm width × 98mm height × 78mm depth, it fits seamlessly into standard installation spaces. The device operates reliably across temperature ranges from -20°C to 40°C, making it suitable for diverse climate conditions.
Key Features
- IP66 weatherproof protection rating for complete dust and water jet resistance
- IK08 impact strength rating for enhanced mechanical durability and protection
- Stainless steel captive terminal screws with backed-off position for secure connections
- Lockable design with hinged lid and enhanced contact protection for safety
- Halogen-free thermoplastic construction in Grey RAL 7016 for environmental compliance
- Loop-through function enabling convenient daisy-chaining of multiple outlets
- Surface-mounted installation with screw fastening for easy setup
- ISO 20 membrane glands and rear cabling caps included for flexible installation
- Operates reliably from -20°C to 40°C temperature range
- 13A 250V AC rated with 50-60Hz frequency compatibility
Technical Specifications
| Specification |
Value |
| Product Type | Socket Outlet - 2 Gang Unswitched |
| Brand | Legrand |
| Series | Plexo 66 |
| SKU/Reference | 684628 |
| EAN Code | 3245066846286 |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V~ |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Number of Socket Outlets | 2 |
| Number of Modules | 4 |
| Connection Type | Screwed Terminal |
| Cable Section | 2.5-2.5 mm² |
| Cable Nature | Flexible or Rigid |
| IP Rating | IP66 |
| Impact Strength Rating | IK08 |
| Material | Halogen-free Thermoplastic |
| Color | Grey |
| RAL Number | 7016 |
| Surface Finishing | Glossy |
| Mounting Method | Surface Mounted |
| Type of Fastening | Mounting with Screw |
| Device Width | 194 mm |
| Device Height | 98 mm |
| Device Depth | 78 mm |
| Built-in Depth | 30 mm |
| With Hinged Lid | Yes |
| With Enhanced Contact Protection | Yes |
| Lockable | Yes |
| With Loop Through Function | Yes |
| Operating Temperature Range | -20°C to 40°C |
| Storage Temperature Range | -20°C to 40°C |
| Protective Contact | Flat |
| Number of Active Contacts (Flat) | 4 |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Standard Compliance | British Standard |
| Concurrently Switching Neutral Conductor | No |
| With Complementary Luminous Signal | No |
| With On/Off Switch | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| With Miniature Fuse | No |
| Power Delivery | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT Support Available | No |
| With Wi-Fi Signal Repeater | No |
| With Built-in Bluetooth Speaker | No |
| Connected Object | No |
| Included Accessories | ISO 20 Membrane Glands and Caps for Rear Cabling |
| Cabling Options | Top or Down Cabling with Plastic Cable Glands |
