Description

Weatherproof 1 gang switched socket outlet with IP66 protection, 13A 250V~, hinged opaque lid, and British Standard compliance for outdoor and harsh environments.

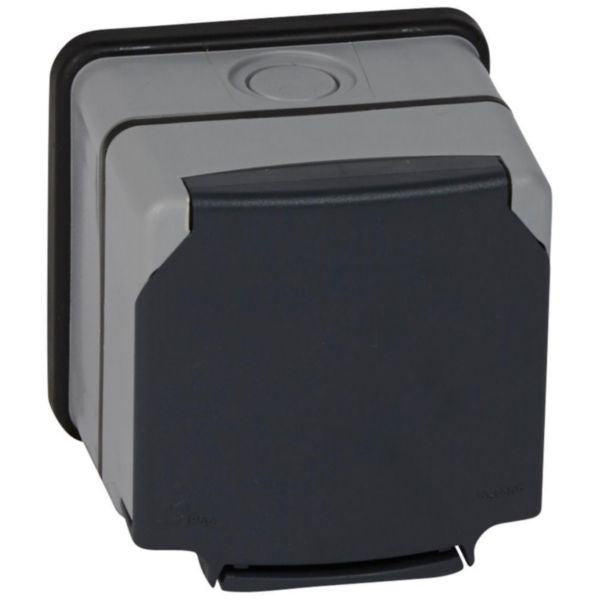

The Plexo™ Socket Outlet 66 is a premium weatherproof electrical socket designed for surface mounting applications requiring IP66 protection and IK08 impact resistance. This 1 gang switched socket outlet features an opaque hinged lid and operates at 13A 250V~, making it ideal for outdoor and harsh environment installations. The unit is constructed from halogen-free thermoplastic material in RAL 7016 grey finish and includes ISO 20 membrane glands and rear cabling caps supplied as standard. This socket outlet is engineered for reliability with stainless steel captive terminal screws supplied in backed-off position, ensuring secure and durable connections. The switched design provides convenient on/off control, while the enhanced contact protection and lockable feature offer additional safety benefits. Compatible with both top and down cabling through plastic cable glands, this versatile outlet accommodates flexible or rigid cables with a cross-section of 2.5mm². The Plexo 66 complete surface-mounting system delivers professional-grade performance with British Standard compliance, making it suitable for residential, commercial, and industrial applications where weatherproofing and durability are essential requirements.

Key Features

  • IP66 weatherproof protection rating for outdoor and harsh environment applications
  • IK08 impact resistance for durability and protection against mechanical stress
  • 1 gang switched socket outlet with convenient on/off control functionality
  • Halogen-free thermoplastic construction in RAL 7016 grey finish
  • Enhanced contact protection with lockable design for added safety
  • Stainless steel captive terminal screws for secure and reliable connections
  • Hinged opaque lid with gasket groove for silicone sealing
  • Compatible with flexible or rigid cables up to 2.5mm² cross-section
  • British Standard compliance for residential and commercial use
  • Surface mounting capability with top or down cabling options

Technical Specifications

Specification Value
Product TypeSocket Outlet with Switch
BrandLegrand Plexo
ModelBritish Standard
Reference Number684622
EAN Code3245066846224
Rated Current13 A
Rated Voltage250 V~
Frequency50-60 Hz
Number of Gangs1
Number of Socket Outlets1
Socket TypeSwitched with Opaque Lid
IP RatingIP66
IK RatingIK08
Mounting MethodSurface Mounted
MaterialHalogen-Free Thermoplastic
ColourGrey RAL 7016
Device Width98 mm
Device Height98 mm
Device Depth87 mm
Built-in Depth30 mm
Connection TypeScrewed Terminal
Cable Section2.5 mm²
Cable TypeFlexible or Rigid
Protective ContactFlat
Hinged LidYes
LockableYes
Enhanced Contact ProtectionYes
Operating Temperature-20°C to +40°C
Storage Temperature-20°C to +40°C
Switching FunctionYes, with On/Off Control
Voltage TypeAC
Number of Modules2
Switchable Socket Outlets1
Surface FinishingGlossy
Supplied AccessoriesISO 20 Membrane Glands and Rear Cabling Caps
