Shop Legrand Plexo German Standard Socket Outlet 16A 250V Grey | 069570L In Iraq Best Prices
Premium weatherproof German standard socket outlet with automatic terminals, IP55 protection, 16A 250V, IK08 impact resistance, and 90° symmetrical design for horizontal or vertical mounting in demanding indoor and outdoor applications.

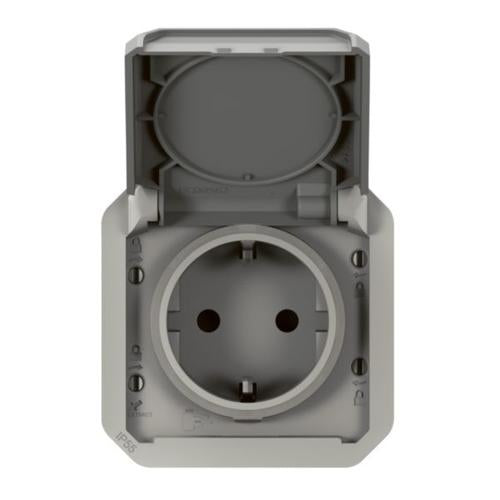

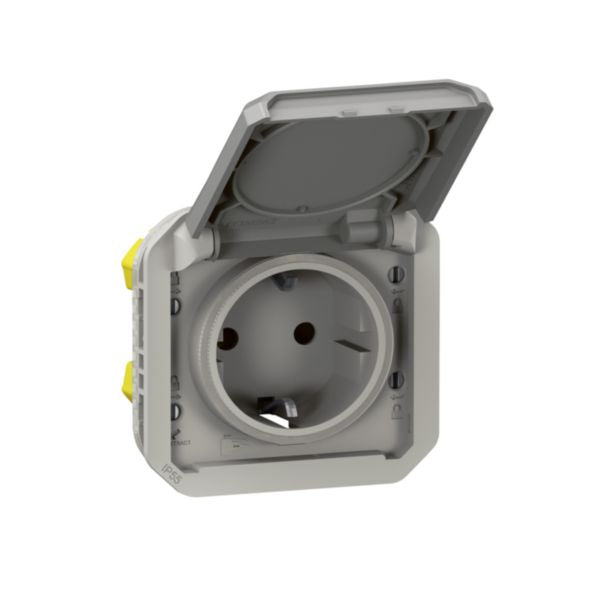

The Plexo weatherproof socket outlet in grey is a premium composable electrical outlet designed for demanding indoor and outdoor applications where resistance to water, dust, and impact is essential. This German standard socket outlet (CEE 7/3 type F) features automatic push-in terminals that enable quick tool-free connection with color coding for safe installation. With an IP55 protection rating, it effectively shields against water spray and dust from all directions, making it ideal for wet environments, construction sites, and outdoor installations.
This socket mechanism offers a 90° symmetrical design that allows both horizontal and vertical mounting on surface-mounted boxes or flush-mounted support frames. The 4-point (1/4 turn) front closure ensures superior waterproofness regardless of installation configuration. The enhanced contact protection and hinged lid provide additional safety and durability. Operating at 16A 250V with 50-60 Hz frequency, this outlet accommodates cable sections from 1.5-2.5mm² for both flexible and rigid conductors.
The Plexo socket outlet meets stringent international standards including VDE certification for heavy-duty conditions and achieves IK08 impact resistance rating (5 joules shock resistance). The grey thermoplastic construction is halogen-free and features a matt finish for aesthetic integration. This product is part of Legrand's comprehensive Plexo weatherproof range, designed for professionals who demand reliability and performance in challenging environments.
Key Features
- IP55 protection rating against dust and water spray from all directions
- Automatic push-in terminals with color coding for tool-free installation
- 90° symmetrical mechanism for horizontal or vertical mounting flexibility
- 4-point (1/4 turn) front closure ensuring superior waterproofness
- IK08 impact resistance (5 joules shock resistance) for heavy-duty conditions
- Enhanced contact protection with hinged lid for safety and durability
- German standard CEE 7/3 (type F) socket outlet configuration
- Halogen-free thermoplastic construction with matt grey finish
- Compatible with flexible and rigid cables 1.5-2.5mm² section
- VDE certified for heavy-duty conditions and professional applications
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| IP Protection Rating | IP55 (protected against dust and water spray from all directions) |
| IK Impact Resistance | IK08 (5 joules shock resistance) |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 46 mm |
| Cable Section Range | 1.5-2.5 mm² |
| Connection Type | Push-in clamp (automatic terminals) |
| Cable Nature | Flexible or rigid |
| Material | Thermoplastic |
| Color | Grey (RAL 7046) |
| Surface Finishing | Matt |
| Halogen Free | Yes |
| With Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Operating Temperature Range | -10 to +40 °C |
| Storage Temperature Range | -25 to +60 °C |
| Voltage Type | AC |
| Mounting Method | Surface-mounted box or flush-mounted support frame |
| Assembly Arrangement | Basic element with full cover plate |
| Degree of Protection (Connected Plug) | IP44 |
| Reference Number | 069570L |
| EAN Code | 3414971879164 |
