Premium weatherproof French standard socket outlet with 16A/250V rating, IP55 protection, enhanced contact safety, and halogen-free construction for demanding indoor and outdoor applications.

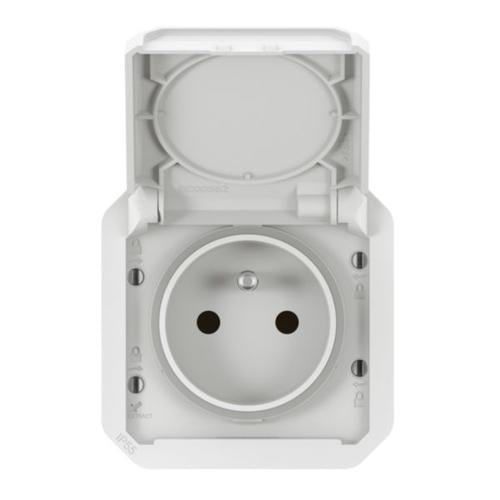

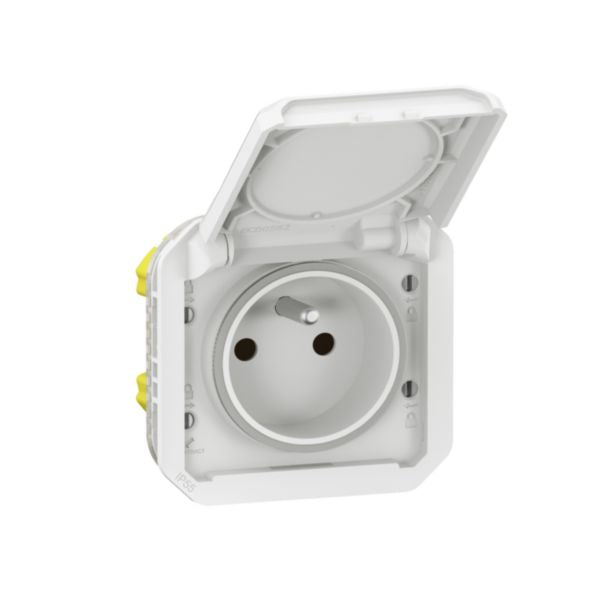

The Plexo French Standard Socket Outlet in white is a premium weatherproof electrical outlet designed for both indoor and outdoor applications requiring superior protection. This 2-module socket outlet features a robust plastic construction with a hinged lid and enhanced contact protection, making it ideal for demanding environments. The outlet is rated at 16A/250V and offers IP55 protection rating, ensuring reliable performance in harsh weather conditions and wet environments. With its push-in clamp connection system, installation is straightforward and secure, accommodating flexible or rigid cables from 1.5 to 2.5 mm² cross-section.
The Plexo socket outlet combines functionality with durability through its halogen-free thermoplastic material and IK08 impact resistance rating. It features round protective contacts with an earthing pin for enhanced safety and is compatible with both 50-60 Hz frequencies. The white finish with RAL 9003 color coding provides aesthetic appeal while maintaining professional standards. The device operates reliably across a wide temperature range from -5°C to 40°C, making it suitable for various climate conditions.
This socket outlet is certified and compliant with multiple international standards including NF domestic applications, CEBEC, and BBJ certifications. The mechanism includes terminal marking indication for easy identification and proper installation. Perfect for residential, commercial, and industrial applications, this Plexo outlet represents the pinnacle of French electrical engineering standards combined with practical weatherproof design.
Key Features
- IP55 weatherproof protection rating for outdoor and wet environment use
- 16A/250V nominal rating with 50-60 Hz frequency compatibility
- Enhanced contact protection with round earthing pin for safety
- Halogen-free thermoplastic construction with IK08 impact resistance
- Push-in clamp connection system for flexible or rigid cables 1.5-2.5 mm²
- Hinged lid design with secure mounting mechanism
- Wide operating temperature range -5°C to 40°C
- International certifications including NF, CEBEC, and BBJ standards
- Terminal marking indication for proper installation identification
- 2-module assembly with basic element and central cover plate
Technical Specifications
| Specification |
Value |
| Product Type | French Standard Socket Outlet |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Protection Rating | IP55 |
| Impact Resistance | IK08 |
| Material | Halogen-free Thermoplastic |
| Color | White (RAL 9003) |
| Number of Modules | 2 |
| Socket Outlets | 1 |
| Protective Contact Type | Round with Earthing Pin |
| Connection Type | Push-in Clamp |
| Cable Section Range | 1.5-2.5 mm² |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 46 mm |
| Built-in Depth | 28.5 mm |
| Operating Temperature Range | -5°C to 40°C |
| Storage Temperature Range | -25°C to 60°C |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Terminal Marking | Yes |
| Reference Number | 069621L |
| EAN Code | 3414971880283 |
| Certifications | NF Domestic, CEBEC, BBJ, PEP |
