Shop Legrand Plexo French Standard Socket Outlet 16A Grey Surface Mount | 069731L In Iraq Best Prices
Premium weatherproof French standard socket outlet with IP55 protection, 16A/250V, surface mounting, halogen-free thermoplastic construction, and enhanced contact protection for reliable power distribution.

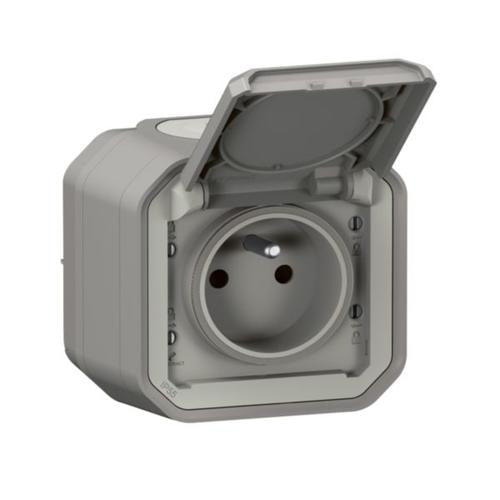

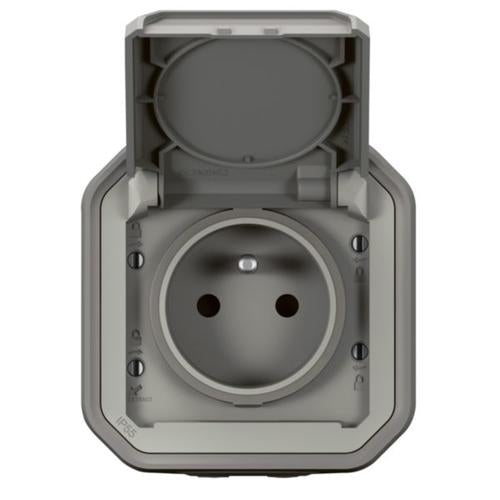

The Plexo French Standard Socket Outlet in Grey is a premium weatherproof electrical outlet designed for surface mounting installations. This high-quality socket outlet combines durability with modern design, featuring a robust plastic construction with thermoplastic material that ensures long-lasting performance. With an IP55 degree of protection and IK08 impact strength rating, this outlet is suitable for both indoor and outdoor applications where weather resistance is essential. The socket is equipped with a hinged lid and enhanced contact protection, making it ideal for residential and commercial installations requiring reliable power distribution in challenging environments.
This 16A/250V socket outlet operates at 50-60 Hz frequency and features push-in clamp connection type for easy installation. The device dimensions are 82mm width, 85mm height, and 62mm depth, making it compact yet fully functional. The halogen-free thermoplastic material ensures environmental safety and compliance with modern building standards. The socket includes an earthing pin with round protective contacts, providing enhanced electrical safety. With two modules in the basic element housing configuration, this outlet delivers professional-grade performance suitable for demanding applications.
The Plexo socket outlet is manufactured by Legrand, a trusted name in electrical solutions worldwide. It features terminal marking indication for clear identification and supports flexible or rigid cable connections with terminal capacity ranging from 1.5 to 2.5 mm². The operating temperature range of -5 to 40°C ensures reliable functionality across various climate conditions, while the storage temperature range of -25 to 60°C demonstrates its robust construction. This product is ideal for anyone seeking a dependable, weather-resistant socket outlet that combines safety, durability, and ease of installation.
Key Features
- IP55 weatherproof protection rating suitable for outdoor and indoor applications
- IK08 impact strength rating for enhanced durability and resistance to mechanical damage
- Halogen-free thermoplastic material ensuring environmental safety and compliance
- Hinged lid design with enhanced contact protection for safety and convenience
- Surface mounting configuration with screw fastening for easy installation
- 16A/250V nominal specifications with 50-60 Hz frequency compatibility
- Earthing pin with round protective contacts for electrical safety
- Push-in clamp connection type for quick and reliable cable installation
- Operating temperature range -5 to 40°C for reliable performance in various climates
- Two-module basic element housing configuration for professional-grade functionality
Technical Specifications
| Specification |
Value |
| Product Type | French Standard Socket Outlet |
| Brand | Legrand |
| Model Series | Plexo |
| SKU/Reference | 069731L |
| EAN Code | 3414971882072 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Degree of Protection | IP55 |
| Impact Strength Rating | IK08 |
| Material | Thermoplastic (Halogen-free) |
| Colour | Grey |
| RAL Number | 7046 (similar) |
| Device Width | 82 mm |
| Device Height | 85 mm |
| Device Depth | 62 mm |
| Mounting Method | Surface mounted |
| Type of Fastening | Mounting with screw |
| Connection Type | Push-in clamp |
| Earthing Pin | Yes, Round protective contact |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 (module system) |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Terminal Marking | Yes |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Cable Section | 1.5-2.5 mm² |
| Tube Diameter Range | 16-25 mm |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -25 to 60 °C |
| Voltage Type | AC |
| Surface Finishing | Matt |
| Assembly Arrangement | Basic element with complete housing |
| Lockable | No |
| Eject Mechanism | No |
| On/Off Switch | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Smart Home Compatible | No (Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant) |
Order Legrand Plexo French Standard Socket Outlet 16A Grey Surface Mount | 069731L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
