Shop Legrand Plexo Double Prewired Vertical German Socket Outlet 16A 250V Grey | 069577L In Iraq Best Prices
Premium weatherproof double socket outlet with IP55 protection, 16A 250V capacity, prewired configuration, and IK08 shock resistance for indoor and outdoor installations.

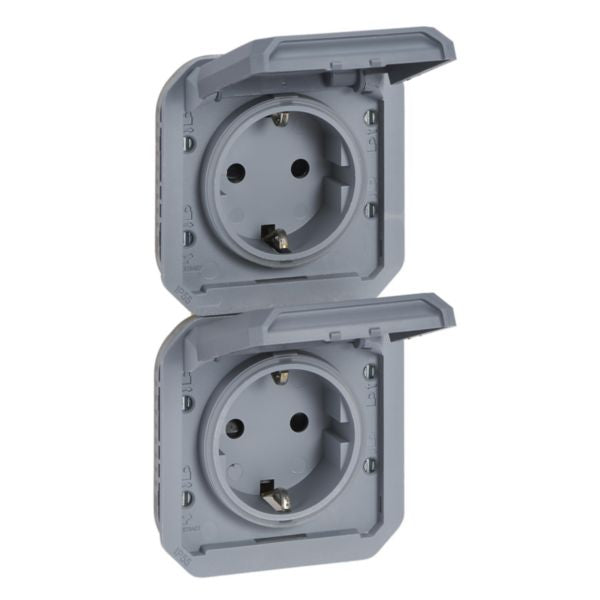

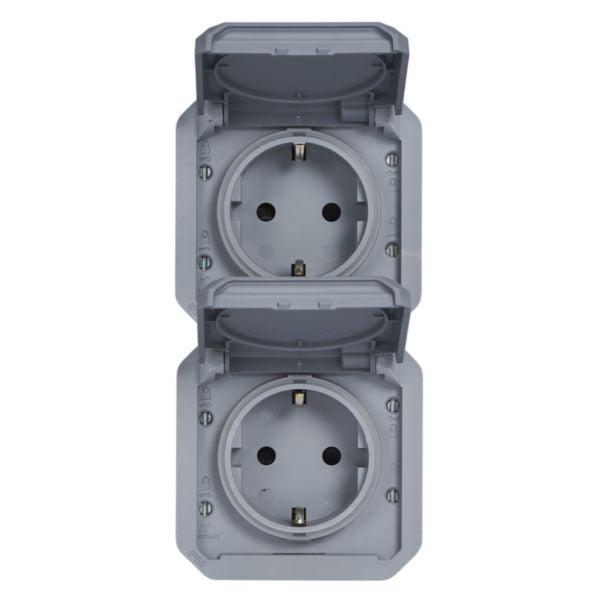

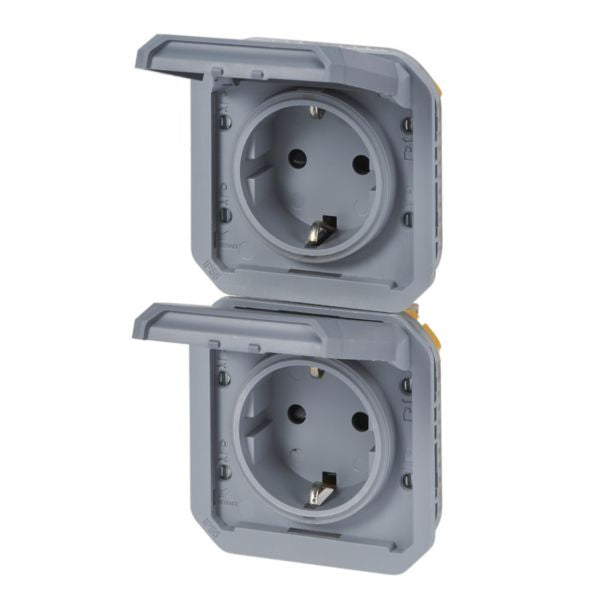

The Plexo™ double prewired vertical German standard socket outlet is a premium waterproof electrical accessory designed for demanding indoor and outdoor applications. This grey composable mechanism features IP55 protection against dust and water spray from all directions, making it ideal for any location requiring resistance to harsh environmental conditions. The socket outlet accommodates 2P+E 16A 250V connections with automatic terminals that enable quick connection without tools and include convenient colour coding for simplified installation.
This innovative product combines durability with ease of use through its prewired configuration, which eliminates visible connecting wires for a cleaner, more professional appearance. The mechanism is engineered with a 4-point (1/4 turn) front closure system that ensures waterproofness regardless of installation configuration. With IK08 shock resistance rated at 5 joules, this socket outlet withstands impact in heavy-duty environments. The device measures 70.5mm width, 141.5mm height, and 48.1mm depth, offering a compact yet robust solution for electrical distribution.
The Plexo double socket outlet features push-in clamp connection technology compatible with flexible or rigid cables of 1.5-2.5mm² cross-section. Its thermoplastic construction is halogen-free and features a matt finish in RAL 7046 grey. Operating within a temperature range of -10 to 40°C, this weatherproof mechanism is suitable for heavy conditions according to VDE standards. The product requires either a surface-mounted box or flush-mounted support frame for installation, making it adaptable to various architectural requirements.
Key Features
- IP55 protection against dust and water spray from all directions for harsh environments
- IK08 shock resistance rated at 5 joules for heavy-duty impact protection
- Prewired configuration eliminates visible connecting wires for professional appearance
- 4-point front closure system ensures waterproofness in any installation configuration
- Automatic terminals with colour coding enable tool-free quick connection
- Push-in clamp connection compatible with 1.5-2.5mm² flexible or rigid cables
- Compact design with 70.5mm width and 141.5mm height for space efficiency
- Halogen-free thermoplastic construction meets VDE heavy-duty condition standards
- Operating temperature range -10 to 40°C for climate versatility
- Hinged lid with enhanced contact protection for safety
Technical Specifications
| Specification |
Value |
| Product Type | Double Prewired Socket Outlet with Protective Contact |
| Socket Standard | German Standard CEE 7/3 (Type F) 2P+E |
| Nominal Current | 16 Amperes |
| Nominal Voltage | 250 Volts AC |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 2 outlets |
| Number of Modules | 4 modules |
| Degree of Protection (IP) | IP55 - Protected against dust and water spray |
| Connected Plug IP Rating | IP44 |
| Impact Strength (IK) | IK08 - 5 joules shock resistance |
| Device Width | 70.5 millimeters |
| Device Height | 141.5 millimeters |
| Device Depth | 48.1 millimeters |
| Connection Type | Push-in clamp terminals |
| Cable Capacity | 1.5-2.5 mm² flexible or rigid cables |
| Material | Thermoplastic - Halogen free |
| Colour | Grey (RAL 7046) |
| Surface Finish | Matt finish |
| Operating Temperature Range | -10°C to +40°C |
| Storage Temperature Range | -25°C to +60°C |
| Mounting Method | Surface-mounted box or flush-mounted support frame |
| Features | Hinged lid, enhanced contact protection, prewired configuration |
| Installation Type | Basic element with full cover plate |
| Voltage Type | AC (Alternating Current) |
| Protective Contact | Yes - Enhanced protection included |
| Product Code | 069577L |
| EAN Code | 3414971879270 |
| Brand | Legrand |
| Product Line | Plexo™ Weatherproof |
| VDE Compliance | Suitable for heavy conditions according to VDE standards |
| Concurrently Switching Neutral | No |
| With Hinged Lid | Yes |
| Prewired | Yes |
| Terminal Marking | Yes - Colour coded |
| Lockable | No |
| Eject Mechanism | No |
| Antimicrobial Treatment | No |
| Smart Home Compatible | Not compatible with HomeKit, Alexa, or Google Assistant |
