Shop Legrand Plexo Double Prewired Horizontal German Socket 16A 250V Grey | 069576L In Iraq Best Prices
Premium weatherproof double socket outlet with IP55 protection, IK08 impact resistance, pre-wired 16A 250V German standard outlets, tool-free installation, and halogen-free construction for indoor/outdoor use.

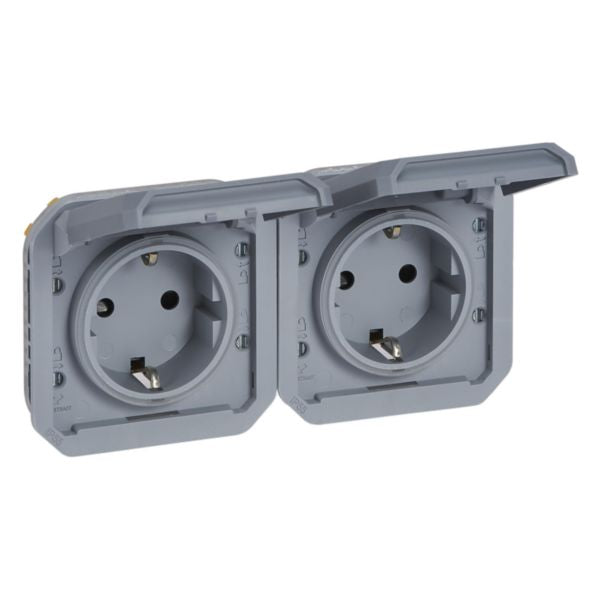

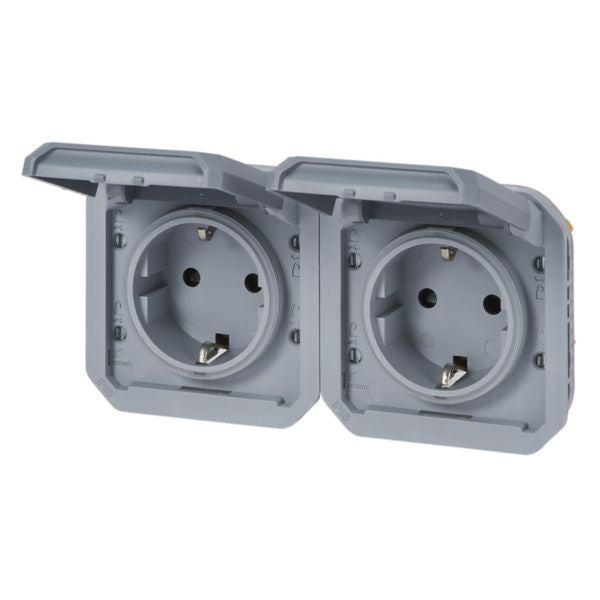

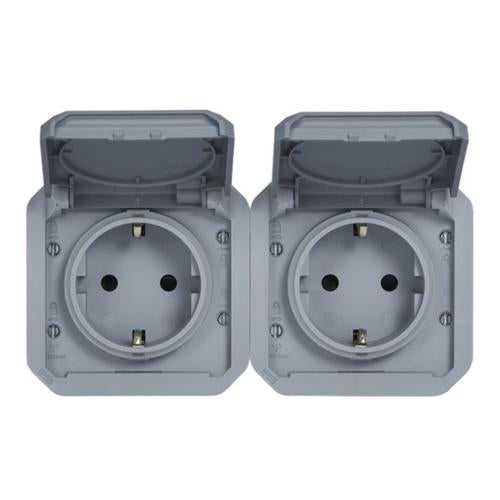

The Legrand Plexo double prewired horizontal German standard socket-outlet is a premium waterproof electrical outlet designed for both indoor and outdoor applications where resistance to water, dust, and impact is essential. This innovative mechanism features two pre-wired 2P+E 16A 250V socket outlets in a single composable unit, eliminating the need for visible connecting wires and simplifying installation. The grey thermoplastic construction provides durability and modern aesthetics while maintaining full electrical safety standards.
With an IP55 protection rating, this socket-outlet is completely protected against dust and water spray from all directions, making it ideal for challenging environments. The IK08 impact resistance rating (5 joules) ensures the mechanism can withstand physical stress in demanding locations. The automatic push-in clamp terminals feature colour coding for quick, tool-free connection, while the 4-point front closure system guarantees waterproofness regardless of installation configuration. The mechanism is easily removable by simply pressing on the sides, and the clipping system provides exceptional resistance to wire pressure.
This product must be completed with either a surface-mounted box or a flush-mounted support frame to create a complete installation system. Operating temperature range is -10 to 40°C, with storage capability from -25 to 60°C. The device dimensions are 141.5mm width x 70.5mm height x 48.1mm depth, making it compatible with standard European mounting systems. All materials are halogen-free for enhanced safety and environmental compliance.
Key Features
- IP55 protection rating - fully protected against dust and water spray from all directions
- IK08 impact resistance - 5 joules shock resistance for demanding environments
- Pre-wired mechanism with two 2P+E 16A 250V socket outlets requiring only single wiring connection
- Automatic push-in clamp terminals with colour coding for tool-free installation
- 4-point front closure system ensuring waterproofness in any installation configuration
- Easy removal by pressing sides with exceptional wire pressure resistance
- Halogen-free thermoplastic construction for enhanced safety and environmental compliance
- Operating temperature range -10 to 40°C with storage capability -25 to 60°C
- Hinged lid with enhanced contact protection for added safety
- Compatible with surface-mounted boxes or flush-mounted support frames
Technical Specifications
| Specification |
Value |
| Product Type | Double Socket Outlet Mechanism with Protective Contact |
| Socket Standard | German Standard CEE 7/3 (Type F) - 2P+E |
| Nominal Current | 16 Amperes |
| Nominal Voltage | 250 Volts AC |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 2 outlets |
| Protection Rating (IP) | IP55 - Protected against dust and water spray from all directions |
| Impact Resistance Rating (IK) | IK08 - 5 joules shock resistance |
| Connected Plug Protection | IP44 |
| Material | Thermoplastic - Halogen-free |
| Colour | Grey (RAL 7046 similar) |
| Surface Finish | Matt finish |
| Device Width | 141.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 48.1 mm |
| Number of Modules | 4 modules |
| Connection Type | Push-in clamp terminals with colour coding |
| Terminal Capacity | 1.5-2.5 mm² cables |
| Cable Type | Flexible or rigid cables |
| Pre-wired | Yes - Two pre-wired sockets requiring single mechanism wiring |
| Hinged Lid | Yes - with 4-point front closure for waterproofness |
| Enhanced Contact Protection | Yes |
| Operating Temperature Range | -10°C to +40°C |
| Storage Temperature Range | -25°C to +60°C |
| Mounting Method | Requires surface-mounted box or flush-mounted support frame |
| Fastening Type | Mounting with screw |
| Reference Number | 069576L |
| EAN Code | 3414971879249 |
| Heavy Conditions (VDE) | Suitable for heavy conditions according to VDE |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
Order Legrand Plexo Double Prewired Horizontal German Socket 16A 250V Grey | 069576L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
