Shop Legrand Plexo British Standard 13A Socket Outlet Grey Weatherproof | 069585L In Iraq Best Prices
Premium weatherproof British Standard 13A socket outlet with IP55 protection, IK08 impact resistance, grey thermoplastic design, hinged safety lid, and enhanced contact protection for reliable indoor and outdoor electrical installations.

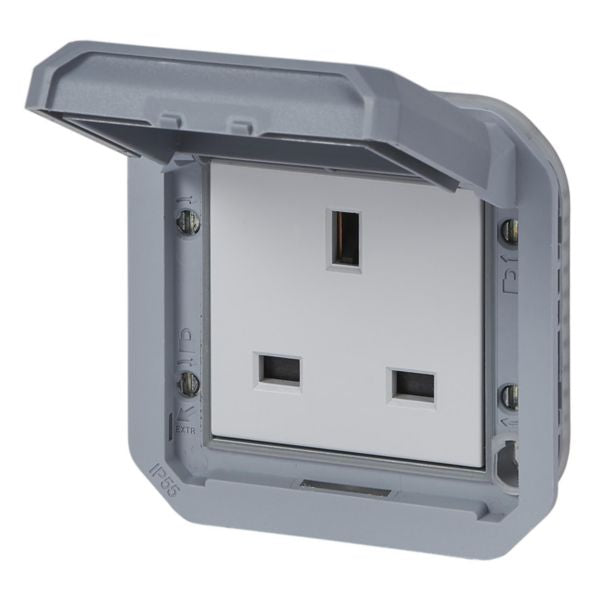

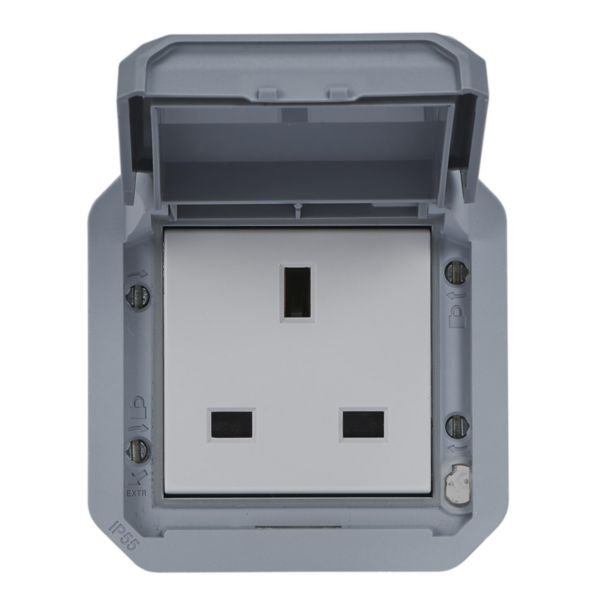

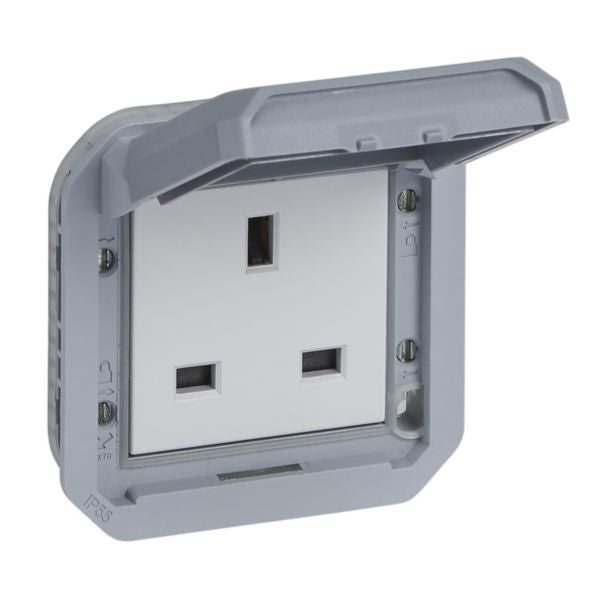

The Plexo™ British Standard 13A Socket Outlet in Grey is a premium weatherproof electrical socket designed for residential and commercial applications requiring enhanced durability and protection. This mechanism features a robust thermoplastic construction with IP55 protection rating and IK08 impact resistance, making it suitable for both indoor and outdoor installations. The socket incorporates flat protective contacts, a hinged lid for added safety, and enhanced contact protection to ensure reliable performance in challenging environments.
This 2-module socket outlet is engineered to handle a nominal current of 13 Amperes at 250 Volts with 50-60 Hz frequency compatibility. The screwed terminal connection type accommodates cable sections ranging from 2.5-4mm², providing flexible installation options for various wiring configurations. With its grey finish (RAL 7046 equivalent) and modern design, the Plexo socket seamlessly integrates into contemporary architectural schemes while maintaining exceptional functionality and safety standards.
The product meets stringent British Standard specifications and is halogen-free, making it an environmentally responsible choice for modern electrical installations. Operating temperature range of -10-40°C ensures consistent performance across diverse climate conditions, while the storage temperature capability of -25-60°C provides flexibility for inventory management and logistics. The Plexo socket outlet represents the ideal balance between aesthetic appeal, technical excellence, and long-term reliability.
Key Features
- IP55 weatherproof protection rating for indoor and outdoor applications
- IK08 impact resistance for enhanced durability and mechanical protection
- British Standard 13A socket outlet with flat protective contacts
- Hinged safety lid with enhanced contact protection system
- Halogen-free thermoplastic construction for environmental compliance
- 13 Ampere nominal current at 250 Volts with 50-60 Hz frequency support
- Screwed terminal connections accommodating 2.5-4mm² cable sections
- Wide operating temperature range of -10-40°C for diverse climates
- 2-module assembly arrangement with full cover plate design
- Grey finish (RAL 7046 equivalent) for modern aesthetic integration
Technical Specifications
| Specification |
Value |
| Product Type | British Standard 13A Socket Outlet Mechanism |
| Model | British Standard |
| Reference Number | 069585L |
| EAN Code | 3414971879508 |
| Brand | Legrand Plexo™ |
| Nominal Current | 13 Amperes |
| Nominal Voltage | 250 Volts |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Protective Contact Type | Flat |
| Active Contacts (Flat) | 2 |
| Degree of Protection (IP) | IP55 |
| Impact Strength (IK) | IK08 |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Connection Type | Screwed Terminal |
| Terminal Capacity | 2.5-4 mm² |
| Cable Section Range | 2.5-4 mm² |
| Cable Type | Flexible or Rigid |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Matt |
| Colour | Grey |
| RAL Number (Similar) | 7046 |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 41 mm |
| Operating Temperature Range | -10 to +40°C |
| Storage Temperature Range | -25 to +60°C |
| Voltage Type | AC (Alternating Current) |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Mounting Method | Mounting with Screw |
| Terminal Marking | Yes |
| Switchable Socket Outlets | 0 |
| Number of Phases | 1 |
| Concurrently Switching Neutral | No |
| USB Ports (USB-A) | 0 |
| USB Ports (USB-C) | 0 |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Miniature Fuse | No |
| Function Lighting | No |
| Orientation Lighting | No |
| Lockable | No |
| Eject Mechanism | No |
| Smart Home Compatible | No (Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant) |
